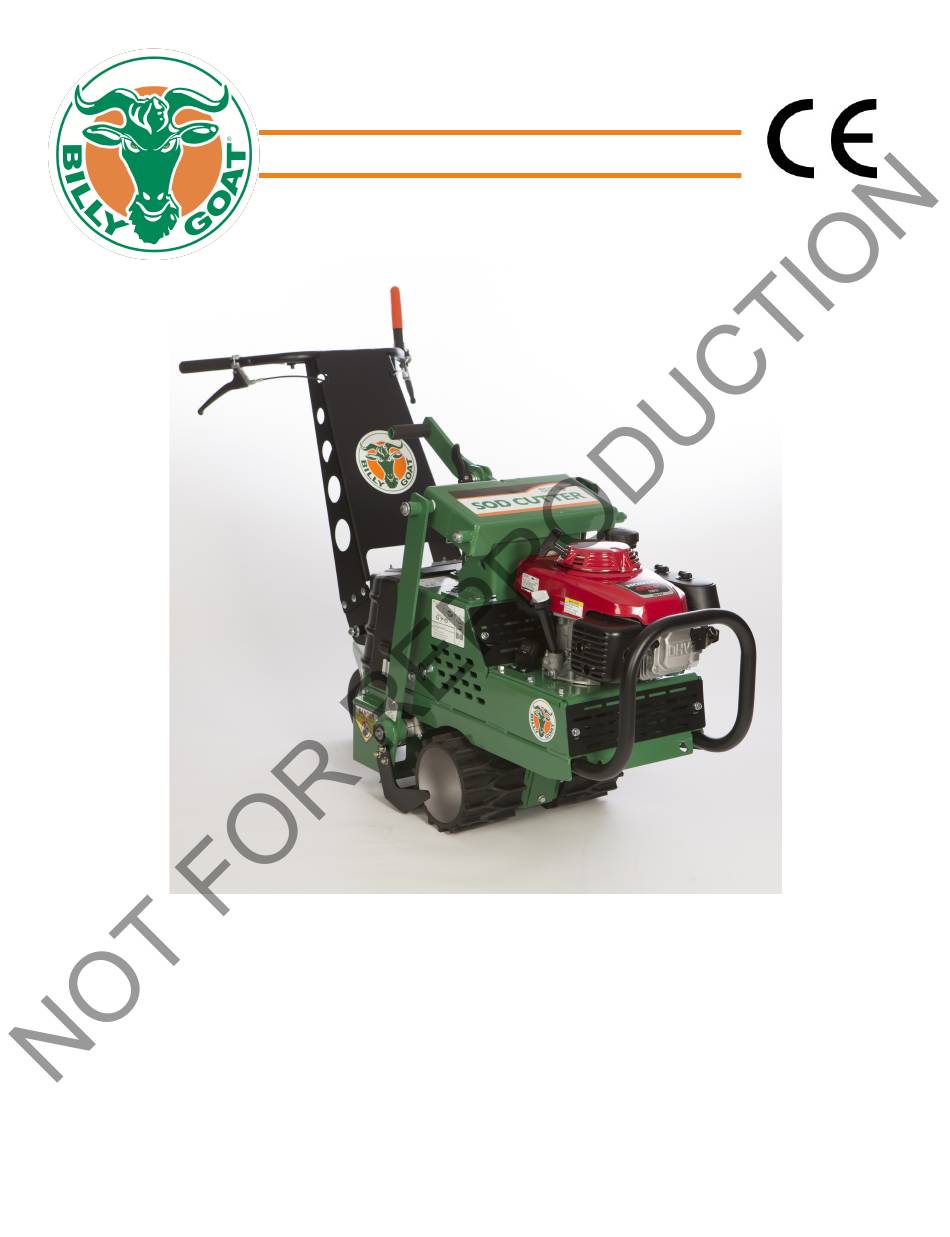

- Page 1 SC181HEU Owner’s Manual Sod Cutter Owner’s Manual SC181HEU, SC181HGEU Beginning Serial #: 110116001 Original Instructions IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE Part No. 373507 373507_A_HI...
-
Page 2: Table Of Contents
About this Manual Thank you for purchasing a BILLY GOAT® Sod Cutter. Your new machine has been carefully designed and manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your machine in top running order. -
Page 3: Specifications/Intended Use
Specifications SC181HEU SC181HGEU Engine: HP 5.5 HP (4.1 kw) 5.5 HP (4.1 kw) Engine: Model GXV160UH2N1AH GXV160UH2N1AH Engine: Type Honda Honda Engine: Fuel Capacity 1.6 qt. (1.5 L) 1.6 qt. (1.5 L) Engine: Oil Capacity 0.69 qt. (0.65 L) 0.69 qt. (0.65 L) Total Unit Weight 395 lb. -
Page 4: Sound And Vibration Data
Sound SOUND LEVEL 90 dB(a) at Operator Position 107 dB(a) Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 3-1-17 under the conditions listed below. Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit for the sound power level for your model. -
Page 5: Instruction Labels
Instruction Labels The labels shown below were installed on your BILLY GOAT® Sod Cutter. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown. -
Page 6: Uncrating Instructions
Uncrating Instructions Your Billy Goat Sod Cutter is shipped from the factory in one crate, completely assembled. Be Sure To: • Read all safety instructions before assembling unit. • Take caution when removing the unit from the box. • Put oil in engine before starting. -
Page 7: Operator Controls
Operator Controls Drive Control: The ground drive controls are located on each handlebar of the machine. The right side lever control moves the machine forward at varying speeds depending on how far the operator engages the control. The left side lever control moves the machine in reverse at varying speeds depending on how far the operator engages the control. -
Page 8: Operation
Operation Note: Item numbers in ( ) will be referenced in the Parts Illustration and Parts List on pages 16-34. Like all mechanical tools, reasonable care must be used when operating machine. Inspect machine work area and machine before operating. Make sure that all operators of this equipment are trained in general machine use and safety. - Page 9 Operation Continued 1. Choose a depth of cut. See instruction label on the unit (see Fig. 2). Note: Sod should be cut leaving a minimum amount of dirt (1/4”-3/8”) attached to the roots. This minimizes its weight for removal and encourages faster growth when reused. 2.
-
Page 10: Maintenance
Note: Blade, drive belts, and chains are normal wear items. See Fig. 11 for Chain configuration. These should be inspected on a regular basis and replaced if worn. Also see your Billy Goat Dealer for servicing your machine. Part No. 373507... - Page 11 Maintenance Continued Belt Replacement Note: See Fig. 10 for belt configuration. Switch off the engine and disconnect the spark plug wire before carrying out any maintenance or repair work on the machine. If a belt is worn or breaks it should be replaced as follows: Note: see pages 16-34 for part illustrations Blade Belt...
- Page 12 Maintenance Continued Drive Belt 1. Disconnect the spark plug, and then remove the guards. 2. Loosen the blade drive belt guides by loosening the nut and bolt holding them to the base. Do not complete- ly remove the nut and bolt, just loosening it will allow the belt guide to be moved far enough back to remove the blade drive belt from the engine drive pulley.
- Page 13 Maintenance Continued Cable Control Adjustment To adjust the cables place the machine on flat ground, switch off the engine and disconnect the wire from the spark plug. Blade and Drive Control Cables Adjustments to the tension on the cables are made by adjusting INCREASE the barrel length located on the handle.
-
Page 14: Troubleshooting
Troubleshooting Problem Possible Cause Solution Engine will not start. • Rocker Stop switch on operators • Move Rocker Stop switch on console is in “stop” position. operators console to “run” position. • Choke not on. • Check engine. • Out of gasoline, bad or old gas. •... - Page 15 90 days. The model number and serial number of the unit must be stated in the Warranty Claim. • The distributor service manager will sign off on the claim and submit it to BILLY GOAT for con- sideration.
-
Page 16: Maintenance Record
Maintenance Record Date Service Performed Part No. 373507 373507_A_HI...
