CYP PUV-1830-AVLC-KIT Operation Manual

Hdbaset1 full 4k avlc series transmitter & receiver kit with oar, lan & poh

Advertisement

Quick Links

PUV-1830-AVLC-KIT
HDBaseT1 Full 4K AVLC Series Transmitter & Receiver Kit
with OAR, LAN & PoH
OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PUV-1830-AVLC-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP PUV-1830-AVLC-KIT

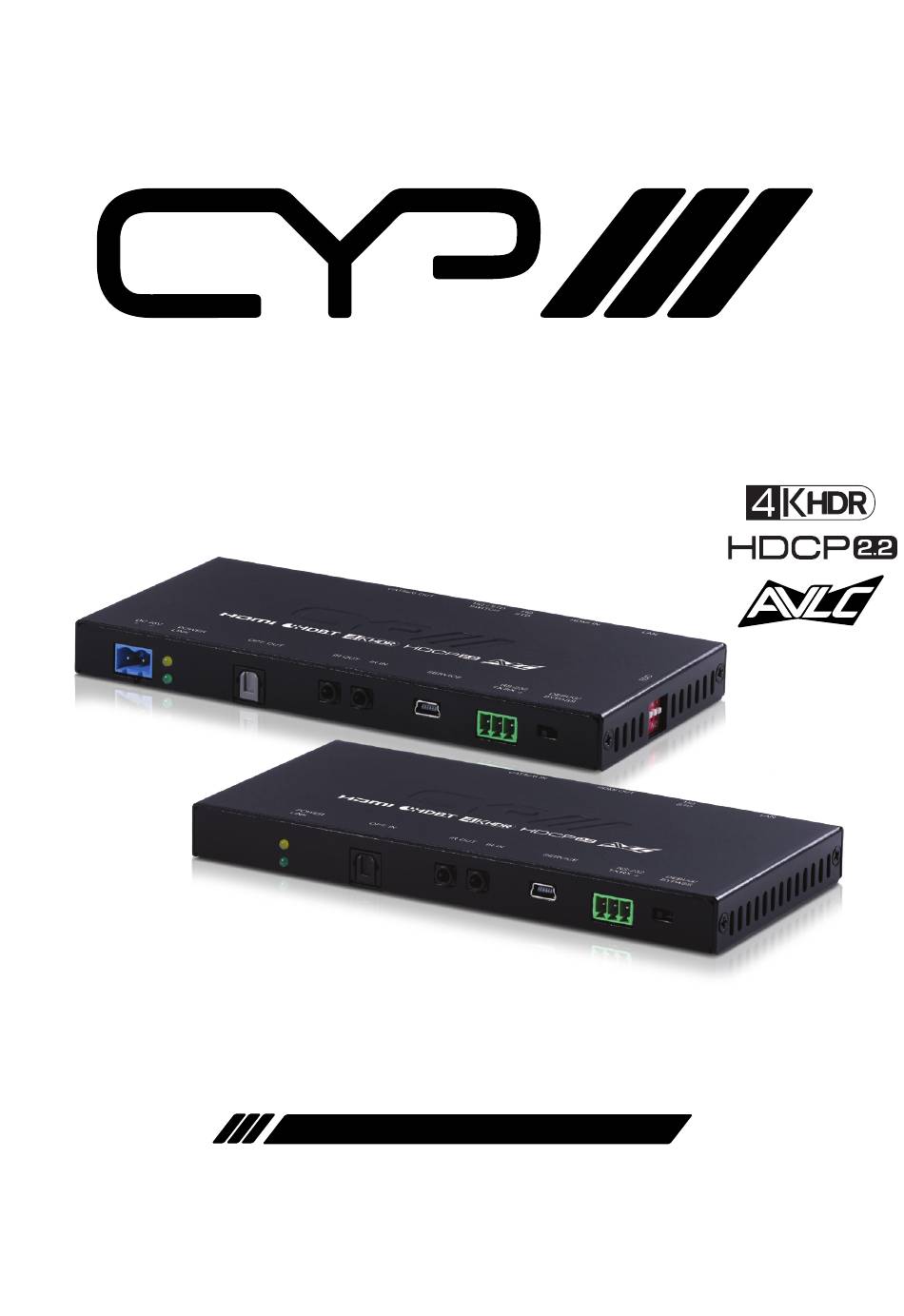

  • Page 1 PUV-1830-AVLC-KIT HDBaseT1 Full 4K AVLC Series Transmitter & Receiver Kit with OAR, LAN & PoH OPERATION MANUAL...
  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........10 6.3 Right Panel ..........11 6.4 IR Cable Pinouts ........11 6.5 Front Panel ..........12 6.6 Rear Panel ...........13 6.7 RS-232 Control ..........14...
  • Page 6: Introduction

    1. INTRODUCTION This HDMI over single Cat.5e/6/7 Transmitter and Receiver Kit is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 metres. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections.
  • Page 7: System Requirements

    1×Rackmount Ears (Set of 2) 1×HDMI over HDBaseT Receiver with HDR & OAR 1×3.5mm to IR Extender Cable 1×Rackmount Ears (Set of 2) 1×Operation Manual 4. SYSTEM REQUIREMENTS HDMI source equipment such as a media player, video game console or set-top box. The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly recommended.
  • Page 8 Comprehensive EDID management support including 6 pre-defined EDIDs, 9 user EDIDs and an EDID bypass mode PC-based EDID management software allows for the uploading of customised user EDIDs via USB Supports HDMI DDC bus clock stretching for improved compatibility with certain Blu-ray players Performs TMDS re-clocking and signal re-generation for improved signal integrity Ultra-thin design (16mm thickness) for convenient installation...
  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 48V POWER OPT. OUT IR EXTENDER 1 IR BLASTER 2 SERVICE RS-232 CONSOLE/ LINK BYPASS DC 48V: Plug the 48V DC power adapter into this port and connect it to an AC wall outlet for power. Note: Please be sure to follow the polarity labels on the unit and the adapter’s wires.
  • Page 10: Rear Panel

    Note: RS-232 bypass requires both the Transmitter and Receiver to be set to “Bypass” mode. 6.2 Rear Panel LAN: Connect to an Ethernet supporting device or to your local network, as appropriate, to extend the network to both ends of the HDBaseT connection.
  • Page 11: Right Panel

    6.3 Right Panel EDID EDID: The EDID dipswitch block provides a way to select the EDID to use with the connected source. By using a combination of on and off settings for the dipswitches, there are a total of 16 possible EDID selections across 3 different operation modes.
  • Page 12: Front Panel

    6.4 Front Panel LINK OPT. IN IR EXTENDER 2 IR BLASTER 1 SERVICE RS-232 CONSOLE/ POWER BYPASS POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible Transmitter is active.
  • Page 13: Rear Panel

    6.5 Rear Panel LAN: Connect to an Ethernet supporting device or to your local network, as appropriate, to extend the network to both ends of the HDBaseT connection. HQ & STD LEDs: These LEDs illuminate to indicate which AVLC mode will be used when AVLC is required.
  • Page 14: Rs-232 Control

    6.6 IR Cable Pinouts IR Extender Infrared Power Ground IR Blaster Power Infrared 6.7 RS-232 Control Terminal Block Controlling PC Serial Port Settings Defini- Defini- tion tion Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None...
  • Page 15: Rs-232 Commands

    6.8 RS-232 Commands TX COMMANDS Description and Parameters HELP  Show the full command list. ?  Show the full command list. GET FW VER  Show the unit’s current firmware version. GET MODEL NAME  Show the unit’s model name. GET MODEL TYPE ...
  • Page 16 TX COMMANDS Description and Parameters SET TRANSCEIVER COMPRESS RATE N1  Set the AVLC compression mode to use. Available values for N1: [High quality] [Standard quality] GET TRANSCEIVER COMPRESS RATE  Show the current AVLC compression mode. RX COMMANDS Description and Parameters HELP ...
  • Page 17 RX COMMANDS Description and Parameters GET TRANSCEIVER COMPRESS RATE  Show the current AVLC compression mode. Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive.
  • Page 18: Edid Management

    6.9 EDID Management 6.9.1 EDID Dipswitch Settings The EDID dipswitch block provides a way to select the EDID to use with the connected source. By using a combination of on and off settings for the dipswitches, there are a total of 16 possible EDID selections across 3 different operation modes.
  • Page 19 Detailed EDID information: Internal EDID (1–6) There are a total of 6 built-in internal EDID slots covering many standard display configurations. These EDIDs can’t be modified. They are defined as follows: EDID Video Content Audio Content FHD/2 channel 1080p@60Hz, 8-bit LPCM 2.0 (148MHz) FHD/Multi-channel 1080p@60Hz, 8-bit...
  • Page 20 6.9.2 EDID Management Tool This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use.
  • Page 21 Save/Upload/Analysis: EDIDs may be saved, uploaded or analysed: - Save: Any EDID from the unit or a connected HDMI display can be saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “Save” icon.
  • Page 22 B. EDID Creator Tab Select: Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “New” icon), to modify an existing EDID stored on the PC as a *.bin file (select the “Load” icon) or to edit an EDID copied from the unit via the EDID Analyser’s edit option.
  • Page 23 “Upload” icons respectively. C. System Tab Configuration & Firmware: Select the System tab to edit the unit’s description (select the “Rename” icon), to reset the unit to factory defaults (select the “Reset” icon) and to view the unit’s current hardware and firmware version information.
  • Page 24: Connection Diagram

    7. CONNECTION DIAGRAM Game Console IR In & Out HDMI Input 1.5m RS-232 Equipped 60° PC/Laptop AV Receiver Optical Audio 60° Retun (OAR) RS-232 Power Supply Router Cat.5e/6/7 Cable RS-232 RS-232 Controlled 60° Device Optical Audio HDMI 60° Return (OAR) Output 1.5m IR In &...
  • Page 25: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Transmitter Input Port 1×HDMI Output Ports 1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×LAN (RJ45) Control Port 1×USB (Mini-B) Receiver Input Ports 1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK) Output Port 1×HDMI...
  • Page 26 Dimensions (Each) 163mm×16mm×78mm (W×H×D) [Case Only] 183mm×16mm×81mm (W×H×D) [All Inclusive] Weight 200g Chassis Material Aluminum Silkscreen Colour Black Operating Temperature 0 ˚C–40 ˚C/32 ˚F–104 ˚F Storage Temperature -20 ˚C–60 ˚C/-4 ˚F–140 ˚F Relative Humidity 20–90% RH (Non-condensing) Power Consumption 7W/14W (PoH)
  • Page 27: Video Specifications

    8.2 Video Specifications HDMI HDBaseT Supported PC Resolutions (Hz) Input Output 640×480 60, 72, 75, 85   720×400 70, 85   800×600 56, 60, 72, 75, 85   1024×768 60, 70, 75, 85   1152×864  ...
  • Page 28: Audio Specifications

    HDMI HDBaseT Supported TV Resolutions (Hz) Input Output 720×480i 59.94, 60   720×576i   720×480p 59.94, 60   720×576p   1280×720p 50, 59.94, 60   1920×1080i 50, 59.94, 60   1920×1080p 50, 59.94, 60 ...
  • Page 29: Cable Specifications

    8.4 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Input Cat. Cable Length 1080p Cat.5e 100m Cat.6 100m Cat.7 100m 100m Full HD Video (1080p) Up to 1080p@60Hz, 12-bit colour Data rates lower than 5.3Gbps or below 225MHz TMDS clock Ultra HD Video (4K) 4K@24/25/30Hz &...
  • Page 30: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM AVLC Adaptive Visually Lossless Compression Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range...
  • Page 32 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
