Summary of Contents for CYP PUV-1710L-AVLC-KIT

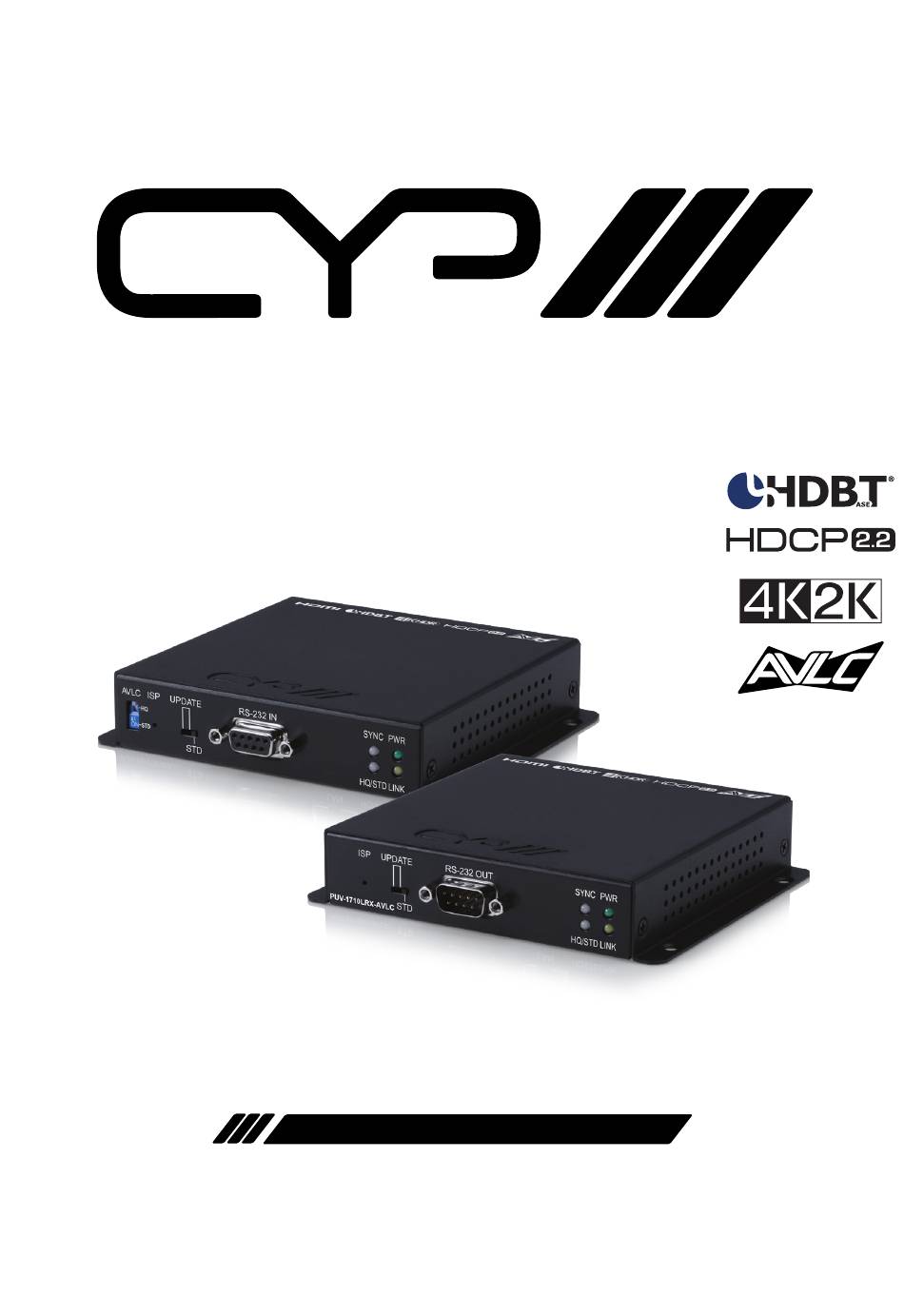

- Page 1 PUV-1710L-AVLC-KIT 70m HDBaseT™ HDR Transmitter & Receiver (4K, HDCP2.2, PoH, LAN, 18Gbps) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter's Front Panel ......8 6.2 Transmitter's Rear Panel ......9 6.3 Receiver's Front Panel ......9 6.4 Receiver's Rear Panel ......10 6.5 IR Pin Assignment ........11 6.6 RS-232 Protocol ........11... -
Page 6: Introduction
1. INTRODUCTION This transmitter and receiver set is a great solution for extending UHD vid- eo and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 70 metres. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI source equipment such as a media player, video game console or set-top box. HDMI receiving equipment such as an HDTV, monitor or audio ampli- fier. The use of “Premium High Speed HDMI” cables, and industry standard Cat.6, Cat.6a or Cat.7, is highly recommended. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter's Front Panel UPDATE HQ/STD PUV-1710LTX-AVLC STD/HQ: This switch allows user to select which compression mode to use when AVLC is active. HQ (High Quality) mode uses the least amount of compression and provides the highest possible visual quality (perceptually identical to the original). -
Page 9: Transmitter's Rear Panel
6.2 Transmitter's Rear Panel DC 48V BLASTER EXTENDER CAT5e/6/7 OUT HDMI IN DC 48V: Plug the 48V DC power adapter into this port and connect it to an AC wall outlet for power. IR1 BLASTER: Connect to the provided IR Blaster to transmit IR signals to devices within direct line-of-sight of the IR Blaster. -
Page 10: Receiver's Rear Panel
receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible Receiver is active. The LED will blink with a regular pat- tern if a Receiver is connected but there is not currently a live signal. The LED will blink with an irregular pattern if a connection error has occurred. -
Page 11: Ir Pin Assignment
6.5 IR Pin Assignment Infrared IR Extender Power Ground Power IR Blaster Infrared 6.6 RS-232 Protocol UNIT TERMINAL Pinout Pinout... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Digital Media Player 1.5m 60° HDMI Input Serial Equipped Computer 60° RS-232 UPDATE DC 48V BLASTER EXTENDER CAT5e/6/7 OUT HDMI IN HQ/STD Power Supply Cat.5e/6/7 Cable UPDATE BLASTER EXTENDER CAT5e/6/7 IN HDMI OUT HQ/STD RS-232 HDMI Output 60°... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Transmitter's Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×HDMI Output Ports 1×Cat.5e/6/7 Pass-through Ports 1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 [9-pin D-sub] IR Frequency 30 - 50kHz (30 - 60kHz under ideal condi- tions) Baud Rate Up to 115200bps... -
Page 14: Receiver's Technical Specifications
8.2 Receiver's Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×Cat.5e/6/7 Output Ports 1×HDMI Pass-through Ports 1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 [9-pin D-sub] IR Frequency 30 - 50kHz (30 - 60kHz under ideal condi- tions) Baud Rate Up to 115200bps Power Supply ESD Protection... -
Page 15: Video Specifications
8.3 Video Specifications HDMI HDMI Supported PC Resolutions (Hz) Input Output 640×480 60, 72, 75, 85 720×400 70, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1152×864 ... - Page 16 HDMI HDMI Supported TV Resolutions (Hz) Input Output 720×480i 59.94, 60 720×576i 720×480p 59.94, 60 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 50, 59.94, 60 ...
-
Page 17: Cable Specifications
8.4 Cable Specifications 1080p HDMI Cable Length (metre) 8-bit 12-bit 8-bit Input Output Cat. Cable Length (metre) 1080p Cat.5e Cat.6 Cat.7 Full HD Video (1080p) Up to 1080p@60Hz, 12-bit colour Data rates lower than 5.3Gbps or below 225MHz TMDS clock Ultra HD Video (4K) 4K@24/25/30Hz &... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM AVLC Adaptive Visually Lossless Compression Cat.5e Category 5 (enhanced) Cable Cat.6 Category 6 Cable Cat.7 Category 7 Cable Consumer Electronics Control Digital Visual Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Infrared Local Area Network LPCM... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
