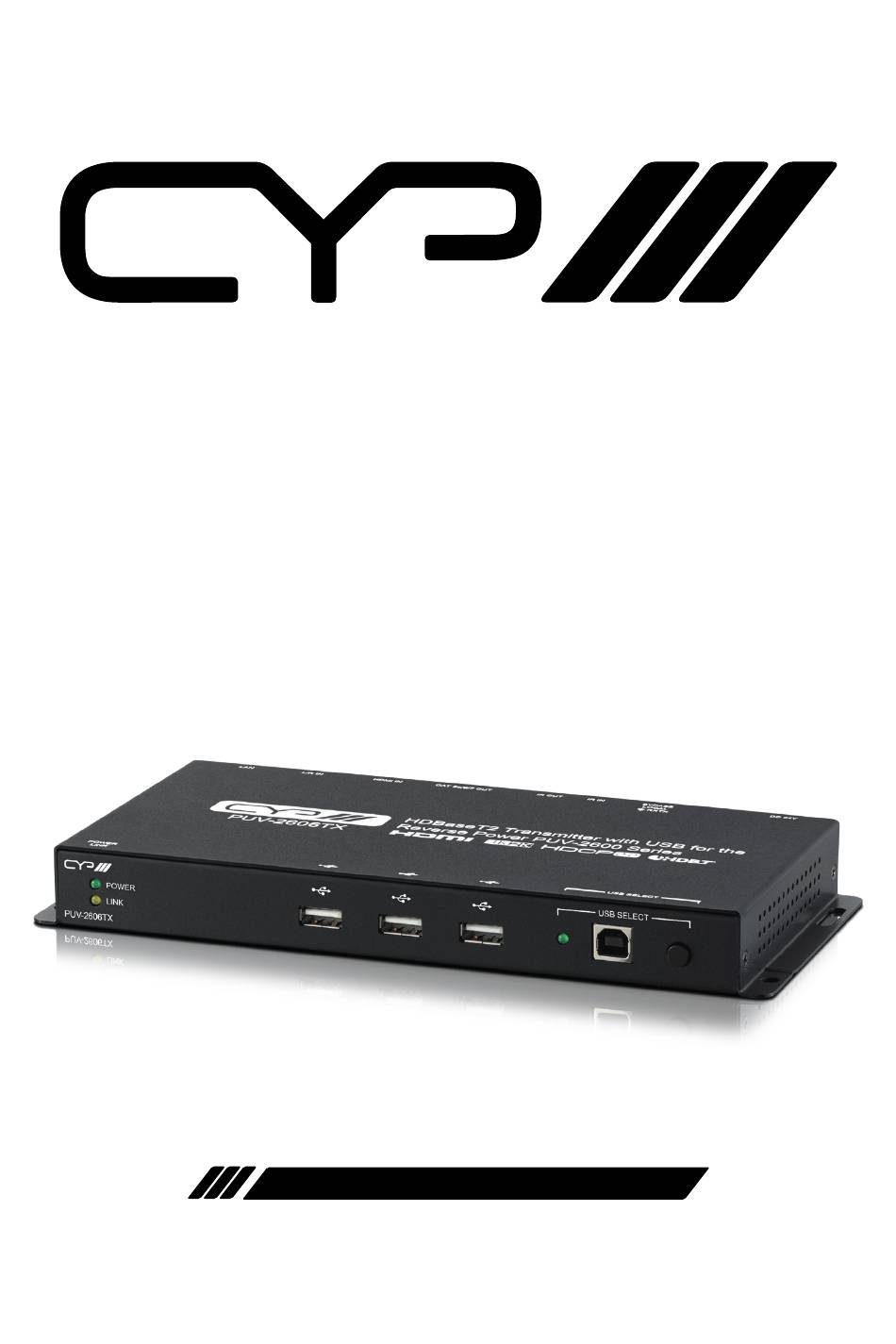

- Page 1 PUV-2606TX HDBaseT2 Transmitter with USB for the Reverse Power PUV-2600 Series OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel .............3 6.2 Rear Panel ...............4 6.3 IR Cable Pinouts ...........5 6.4 RS-232 Pinout and Defaults ......5 6.5 RS-232 Commands ..........6 7. -
Page 6: Introduction
1. INTRODUCTION This HDBaseT 2.0 Transmitter is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control signal types are supported, including USB 2.0, IR, RS- 232 and LAN connections. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI source equipment such as a media player, video game console or set-top box. A compatible HDBaseT 2.0 Receiver with PoH (PSE) support is highly recommended. The use of Premium High Speed HDMI cables, and industry standard Cat.6, Cat.6a or Cat.7, is highly recommended. -
Page 8: Operation Controls And Functions
6.1 Front Panel USB SELECT POWER LINK PUV-2606TX POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible Receiver is active. -
Page 9: Rear Panel
6.2 Rear Panel BYPASS RS-232 LOCAL RS-232 DC 24V TXRX IR IN IR OUT CAT 5e/6/7 OUT HDMI IN L/R IN DC 24V Port: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power. (Optional when connected to a compatible PoH (PSE) Receiver) BYPASS RS-232 Terminal Block: Connect to a PC, laptop, or serial controllable device with a 3-pin adapter cable for the extension of RS-... -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None 3-pin Terminal Block... -
Page 11: Rs-232 Commands
6.5 RS-232 Commands COMMAND Description and Parameters help Show the full command list. ? Show the full command list. help N1 Show help details about command N1. N1 = {Command name} get model name Show the unit's model name. get fw ver ... - Page 12 COMMAND Description and Parameters get out A name Show the current name of the HDBaseT output. get in name list List the names of all inputs on the unit. get out name list List the names of all outputs on the unit. get in type list ...
-
Page 13: Connection Diagram
RS-232 LOCAL RS-232 DC 24V TXRX IR IN IR OUT CAT 5e/6/7 OUT HDMI IN L/R IN USB SELECT POWER LINK PUV-2606TX USB SELECT POWER LINK PUV-2606RX BYPASS TXRX DC 24V SERVICE RS-232 IR OUT IR IN CAT 5e/6/7 IN... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 10.2Gbps HDBaseT Bandwidth 10.2Gbps Input Ports 1×HDMI (Type-A) 1×Stereo Audio (3.5mm) Output Port 1×HDBaseT (RJ-45) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 3×USB 2.0 (Type A) 1×USB 2.0 (Type B) 1×RS-232 (3-pin Terminal Block) 1×LAN (RJ-45) Control Ports 1×RS-232 (3-pin Terminal Block) -
Page 15: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDBaseT 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 ... - Page 16 Input Output Supported Resolutions (Hz) HDMI HDBaseT 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 3840×2160p@50/60 ...
-
Page 17: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input/Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analogue Audio Analogue Output Max Audio Level 1Vrms Impedance 10kΩ Type Unbalanced... -
Page 18: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Output Ethernet Cable Cat.5e/6 100m Cat.6a/7 100m 100m Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 19: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Supported Send power to Receiver Unsupported Accept power from Receiver Supported (PoH) IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Supported... -
Page 20: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Analogue-to-Digital Converter Audio/Video AVLC Adaptive Visually Lossless Compression Audio/Video Receiver or Recorder Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Command-Line Interface Digital Visual Interface EDID Extended Display Identification Data... - Page 21 ACRONYM COMPLETE TERM Power over HDBaseT Power Sourcing Equipment SDTV Standard-Definition Television Ultra-High-Definition (10.2Gbps) Ultra-High-Definition Plus (18Gbps) UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array...
- Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV3...
