ADS8638EVM-PDK Kit Operation
Step 3. Plug the ADS8638EVM into the MMB0 as
Step 4. Set the jumpers on the ADS8638EVM as shown in
factory-configured default settings for the EVM).
6.2.1 About the MMB0
The MMB0 is a Modular EVM System motherboard. It is designed around the TMS320VC5507, a DSP
with an onboard USB interface from Texas Instruments. The MMB0 also has 16 MB of SDRAM installed.
The MMB0 is not sold as a DSP development board, and it is not available separately. TI cannot offer
support for the MMB0 except as part of an EVM kit. For schematics or other information about the MMB0,
contact Texas Instruments.
10
ADS8638EVM-PDK

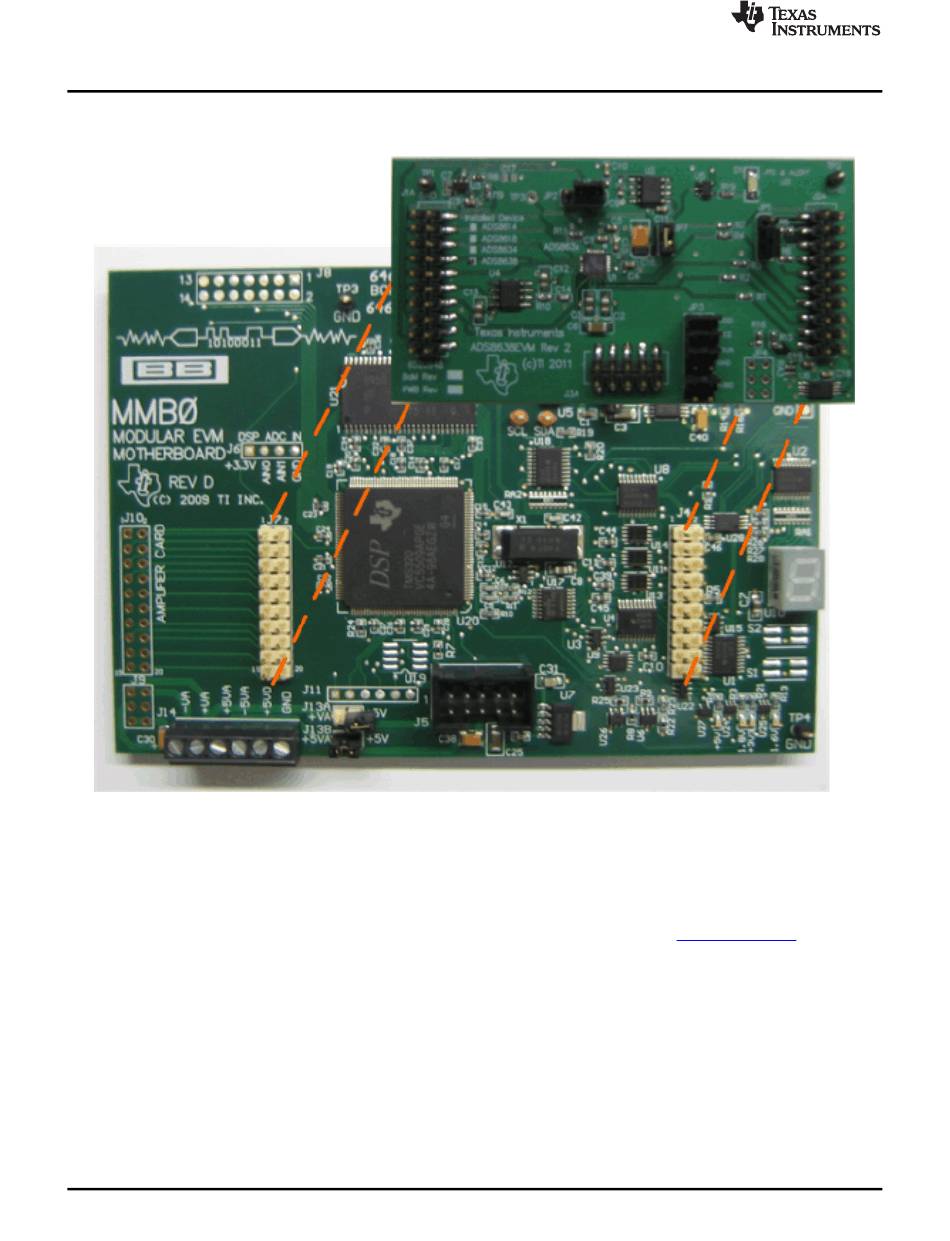

Figure 5. Connecting ADS8638EVM to MMB0
Copyright © 2011, Texas Instruments Incorporated
Figure 5 illustrates.
Figure 1 (note that these settings are the
