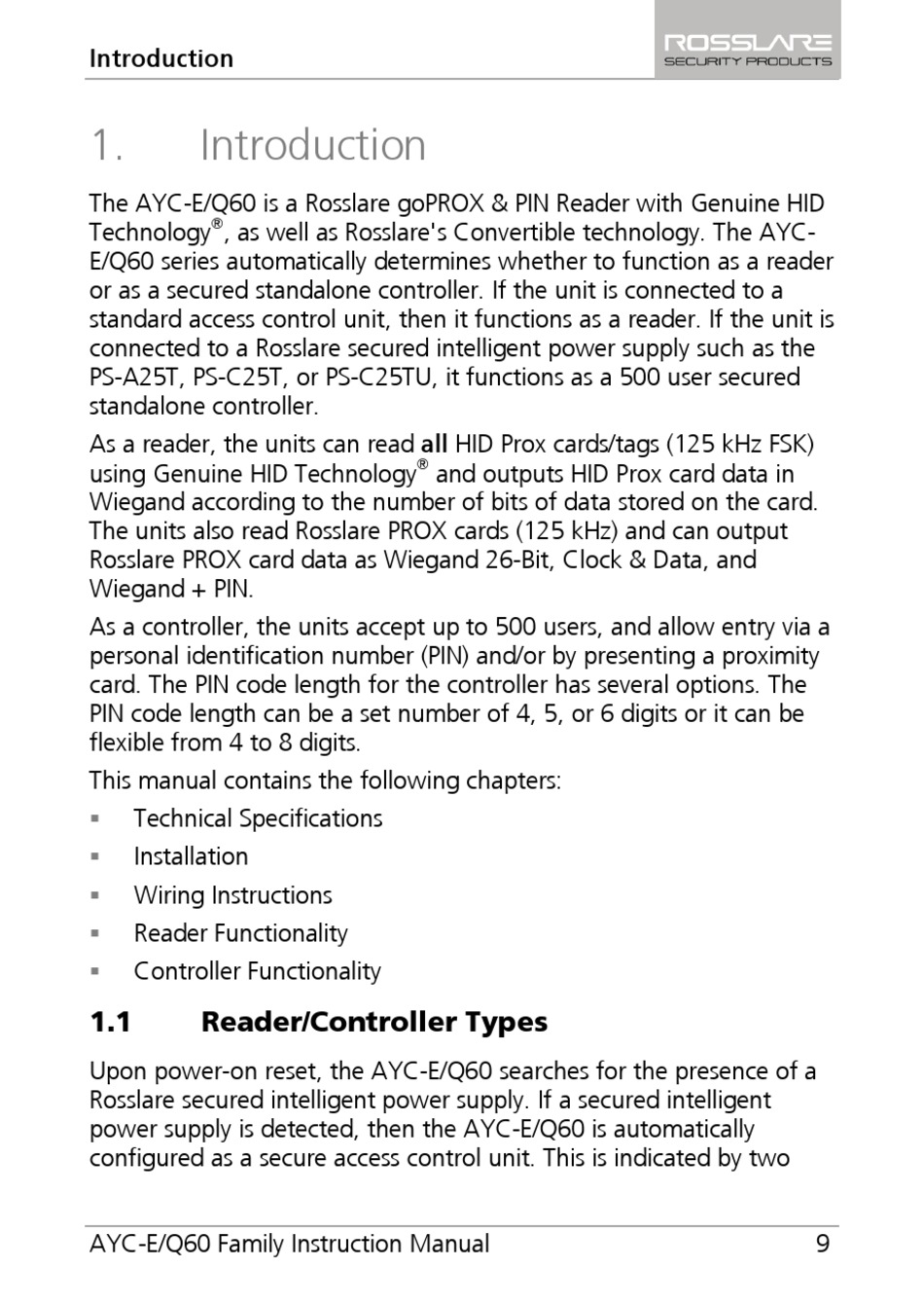

Introduction

1. Introduction
The AYC-E/Q60 is a Rosslare goPROX & PIN Reader with Genuine HID
®
Technology , as well as Rosslare's Convertible technology. The AYC-
E/Q60 series automatically determines whether to function as a reader
or as a secured standalone controller. If the unit is connected to a
standard access control unit, then it functions as a reader. If the unit is
connected to a Rosslare secured intelligent power supply such as the
PS-A25T, PS-C25T, or PS-C25TU, it functions as a 500 user secured
standalone controller.
As a reader, the units can read all HID Prox cards/tags (125 kHz FSK)
using Genuine HID Technology
Wiegand according to the number of bits of data stored on the card.
The units also read Rosslare PROX cards (125 kHz) and can output
Rosslare PROX card data as Wiegand 26-Bit, Clock & Data, and
Wiegand + PIN.
As a controller, the units accept up to 500 users, and allow entry via a
personal identification number (PIN) and/or by presenting a proximity
card. The PIN code length for the controller has several options. The
PIN code length can be a set number of 4, 5, or 6 digits or it can be
flexible from 4 to 8 digits.
This manual contains the following chapters:
 Technical Specifications
 Installation
 Wiring Instructions
 Reader Functionality
 Controller Functionality
1.1

Reader/Controller Types

Upon power-on reset, the AYC-E/Q60 searches for the presence of a
Rosslare secured intelligent power supply. If a secured intelligent
power supply is detected, then the AYC-E/Q60 is automatically
configured as a secure access control unit. This is indicated by two
AYC-E/Q60 Family Instruction Manual
®
and outputs HID Prox card data in
