Installation
3.
Installation
3.1
Mounting the AYC-E60
To mount the AYC-E60:
1. Select the location to mount the AYC-E/Q60. This location should
be at shoulder height.
2. For wall mounting, use the included mounting template as a
guide for drilling holes for mounting screws and wiring. For US
Gang Box mounting, no drilling is necessary.
3. When the unit is used as a reader, route the interface cable from
the AYC-E60 to the controller. A linear type power supply is
recommended when using the unit as a reader
14

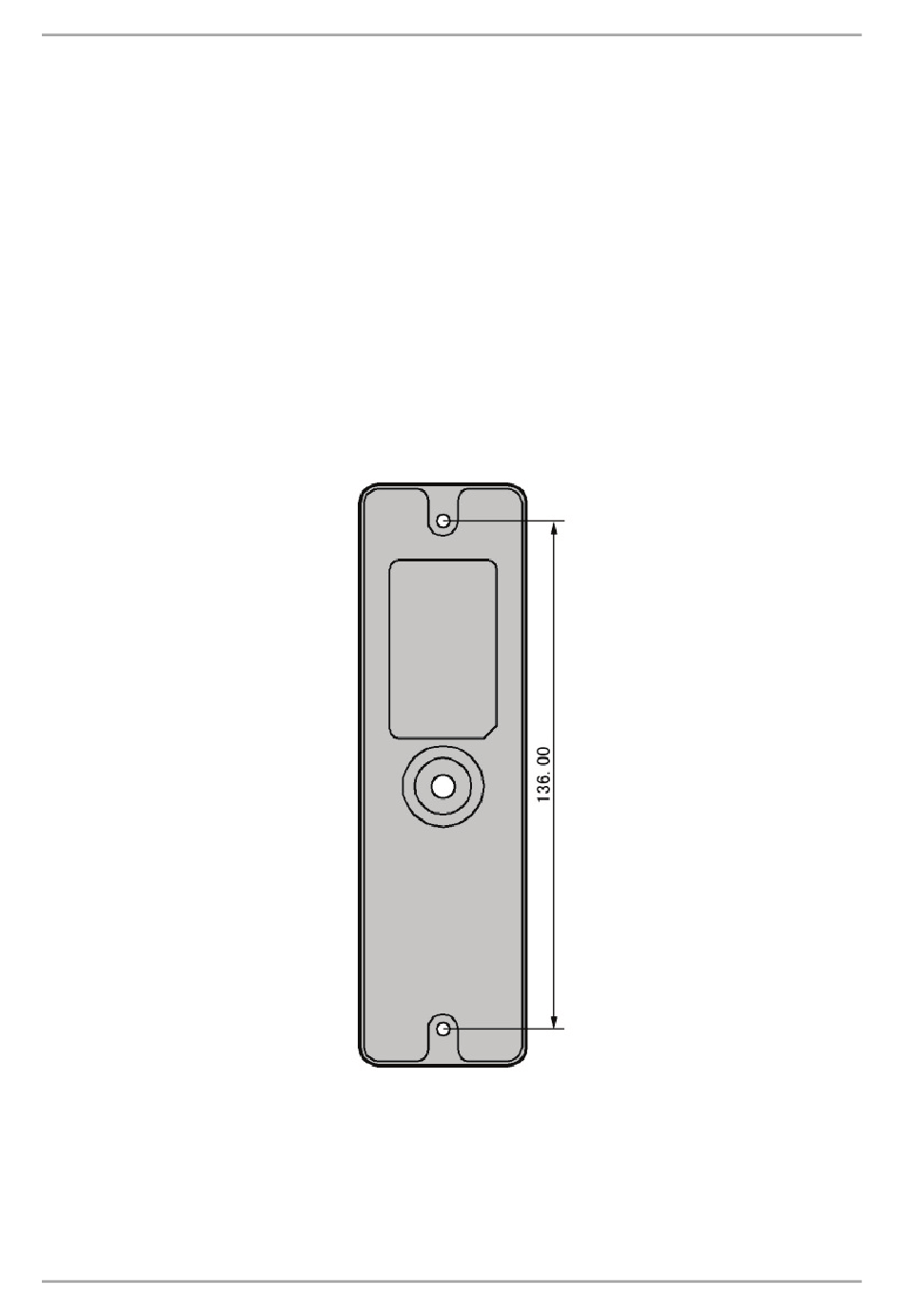

Figure 1: Drilling & Mounting Template
AYC-E/Q60 Family Instruction Manual
