Controller Functionality

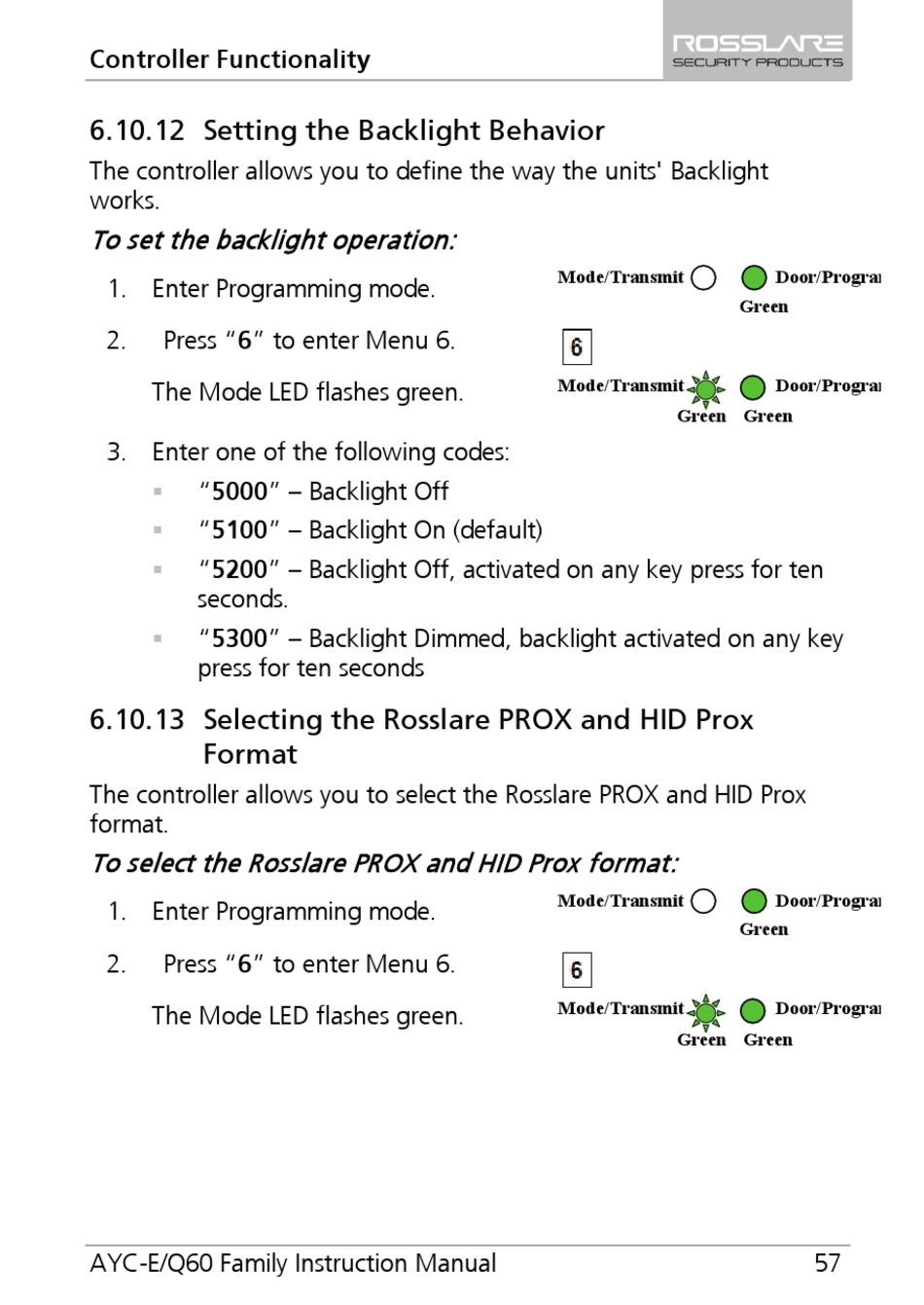

6.10.12 Setting the Backlight Behavior

The controller allows you to define the way the units' Backlight
works.
To set the backlight operation:
1. Enter Programming mode.
2. Press "6" to enter Menu 6.
The Mode LED flashes green.
3. Enter one of the following codes:
 "5000" – Backlight Off
"5100" – Backlight On (default)

"5200" – Backlight Off, activated on any key press for ten

seconds.
 "5300" – Backlight Dimmed, backlight activated on any key
press for ten seconds
6.10.13 Selecting the Rosslare PROX and HID Prox
Format
The controller allows you to select the Rosslare PROX and HID Prox
format.
To select the Rosslare PROX and HID Prox format:
1. Enter Programming mode.
2. Press "6" to enter Menu 6.
The Mode LED flashes green.
AYC-E/Q60 Family Instruction Manual
Mode/Transmit
Mode/Transmit
Green Green
Mode/Transmit
Mode/Transmit
Green Green
Door/Program
Green
Door/Program
Door/Program
Green
Door/Program
57
