Controller Functionality

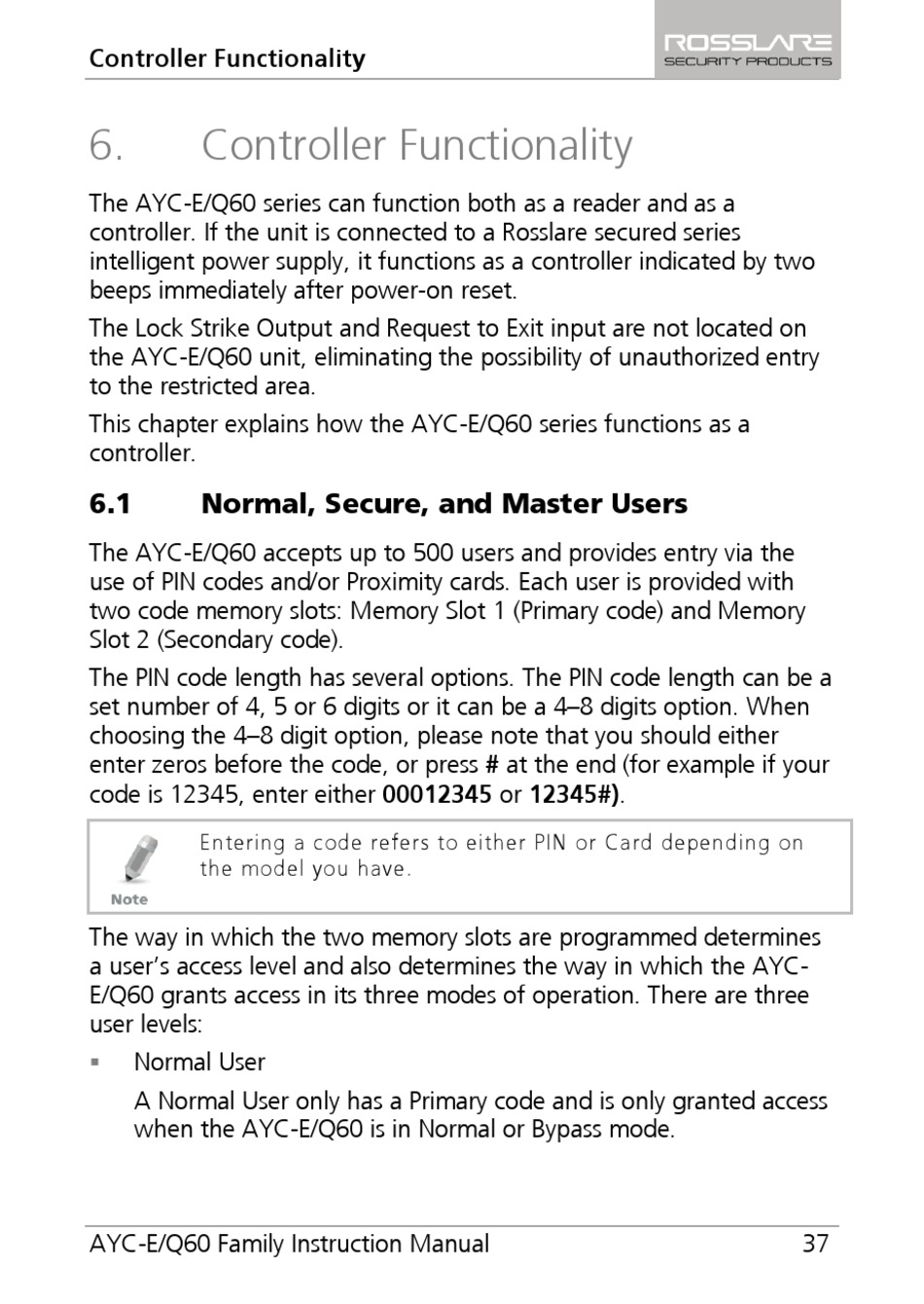

6. Controller Functionality
The AYC-E/Q60 series can function both as a reader and as a
controller. If the unit is connected to a Rosslare secured series
intelligent power supply, it functions as a controller indicated by two
beeps immediately after power-on reset.
The Lock Strike Output and Request to Exit input are not located on
the AYC-E/Q60 unit, eliminating the possibility of unauthorized entry
to the restricted area.
This chapter explains how the AYC-E/Q60 series functions as a
controller.
6.1

Normal, Secure, and Master Users

The AYC-E/Q60 accepts up to 500 users and provides entry via the
use of PIN codes and/or Proximity cards. Each user is provided with
two code memory slots: Memory Slot 1 (Primary code) and Memory
Slot 2 (Secondary code).
The PIN code length has several options. The PIN code length can be a
set number of 4, 5 or 6 digits or it can be a 4–8 digits option. When
choosing the 4–8 digit option, please note that you should either
enter zeros before the code, or press # at the end (for example if your
code is 12345, enter either 00012345 or 12345#).
Entering a code refers to either PIN or Card depending on
the model you have.
The way in which the two memory slots are programmed determines
a user's access level and also determines the way in which the AYC-
E/Q60 grants access in its three modes of operation. There are three
user levels:
Normal User

A Normal User only has a Primary code and is only granted access
when the AYC-E/Q60 is in Normal or Bypass mode.
AYC-E/Q60 Family Instruction Manual 37
