Key Features - Rosslare AYC-E/Q60 Series Instruction Manual

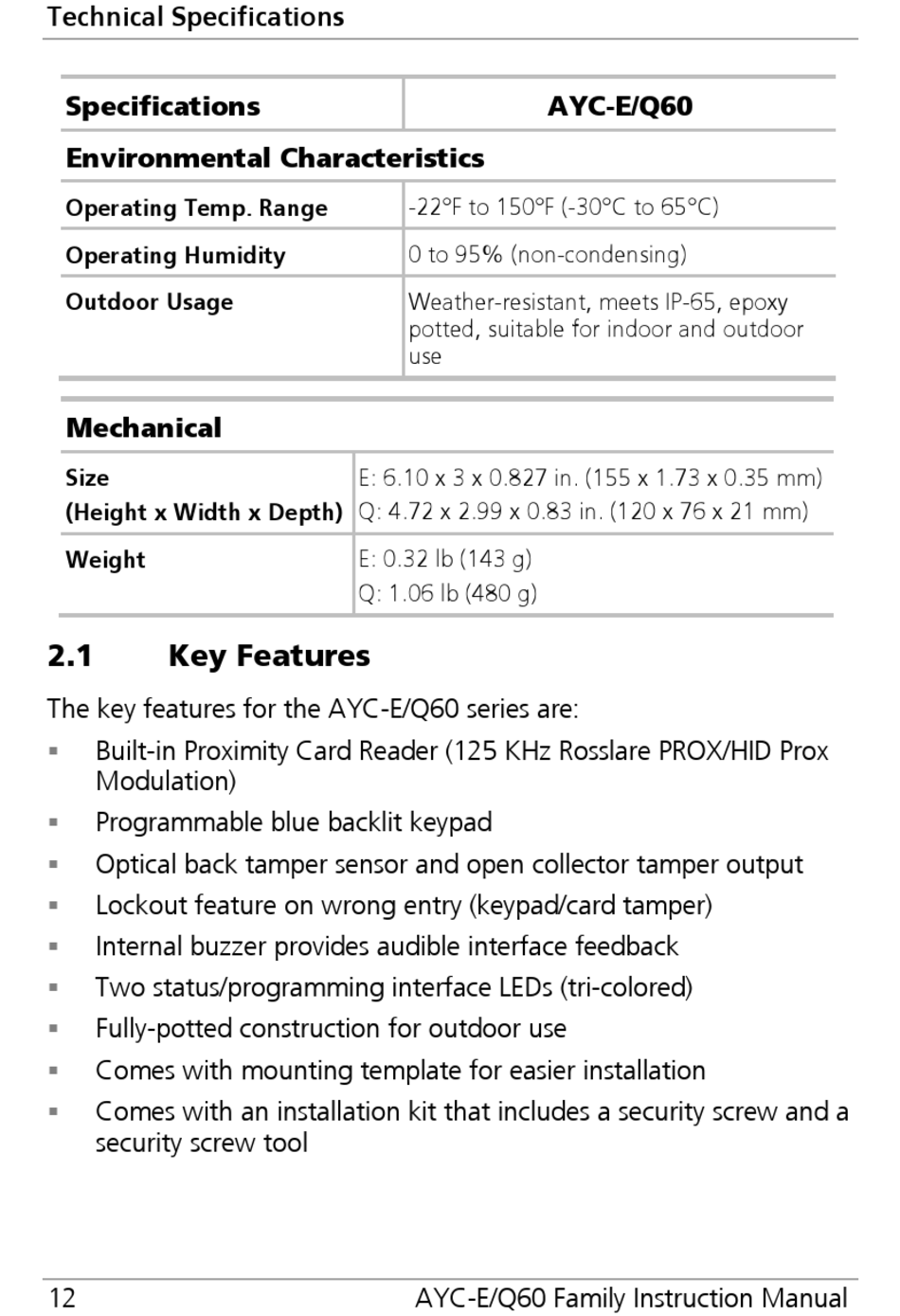

Technical Specifications
Specifications
Environmental Characteristics
Operating Temp. Range
Operating Humidity
Outdoor Usage
Mechanical
Size
(Height x Width x Depth)
Weight
2.1

Key Features

The key features for the AYC-E/Q60 series are:
 Built-in Proximity Card Reader (125 KHz Rosslare PROX/HID Prox
Modulation)
 Programmable blue backlit keypad
 Optical back tamper sensor and open collector tamper output
Lockout feature on wrong entry (keypad/card tamper)

 Internal buzzer provides audible interface feedback
Two status/programming interface LEDs (tri-colored)

 Fully-potted construction for outdoor use
 Comes with mounting template for easier installation
 Comes with an installation kit that includes a security screw and a
security screw tool
12
-22°F to 150°F (-30°C to 65°C)
0 to 95% (non-condensing)
Weather-resistant, meets IP-65, epoxy
potted, suitable for indoor and outdoor
use
E: 6.10 x 3 x 0.827 in. (155 x 1.73 x 0.35 mm)
Q: 4.72 x 2.99 x 0.83 in. (120 x 76 x 21 mm)
E: 0.32 lb (143 g)
Q: 1.06 lb (480 g)
AYC-E/Q60 Family Instruction Manual
AYC-E/Q60
