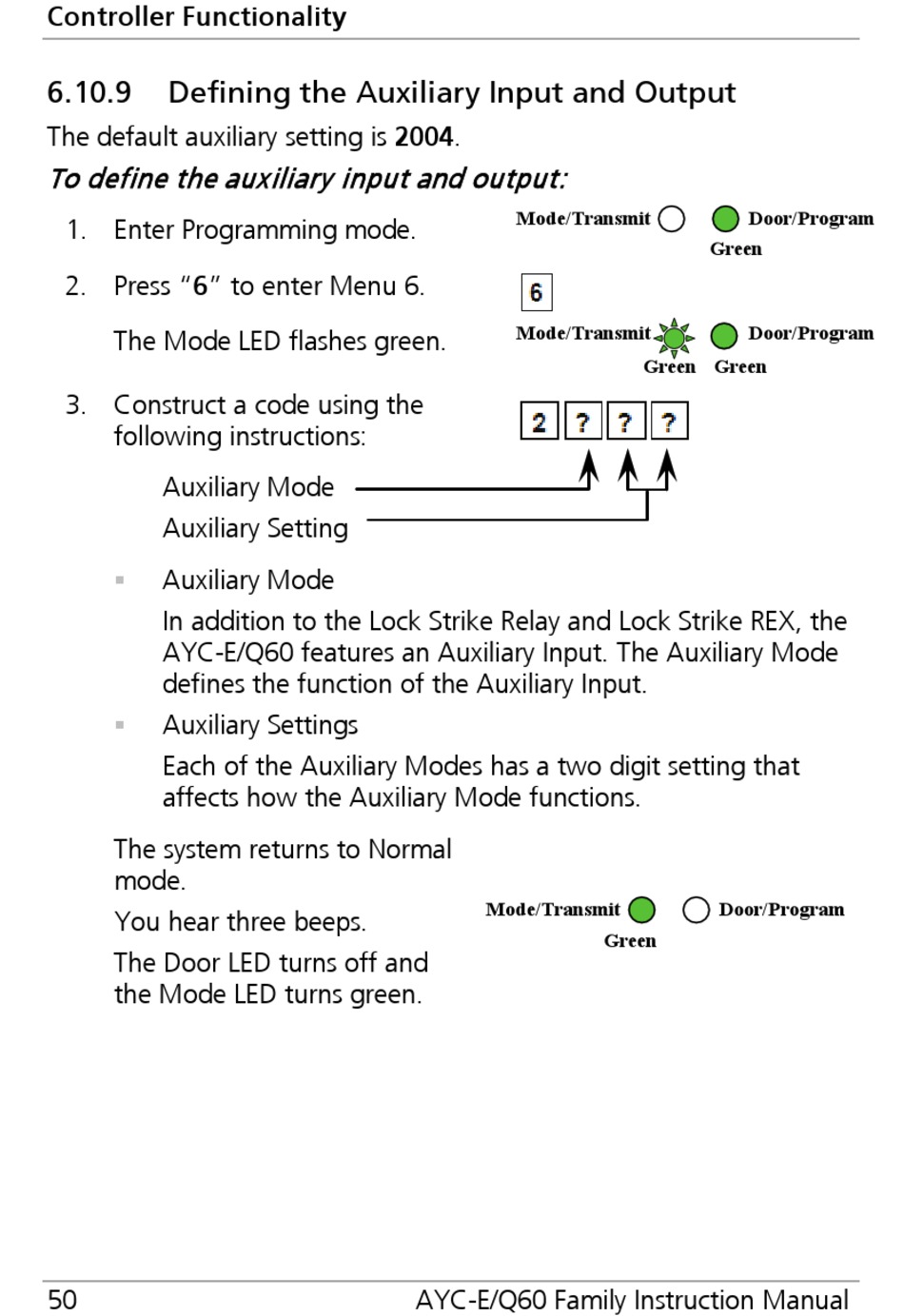

Controller Functionality
6.10.9

Defining the Auxiliary Input and Output

The default auxiliary setting is 2004.
To define the aux iliary input and output:
1. Enter Programming mode.
2. Press "6" to enter Menu 6.
The Mode LED flashes green.
3. Construct a code using the
following instructions:
Auxiliary Mode
Auxiliary Setting
 Auxiliary Mode
In addition to the Lock Strike Relay and Lock Strike REX, the
AYC-E/Q60 features an Auxiliary Input. The Auxiliary Mode
defines the function of the Auxiliary Input.
Auxiliary Settings

Each of the Auxiliary Modes has a two digit setting that
affects how the Auxiliary Mode functions.
The system returns to Normal
mode.
You hear three beeps.
The Door LED turns off and
the Mode LED turns green.
