DEMO MANUAL
DC2685B-KIT
DC2684A-B DAUGHTER CARD LAYOUT FILES

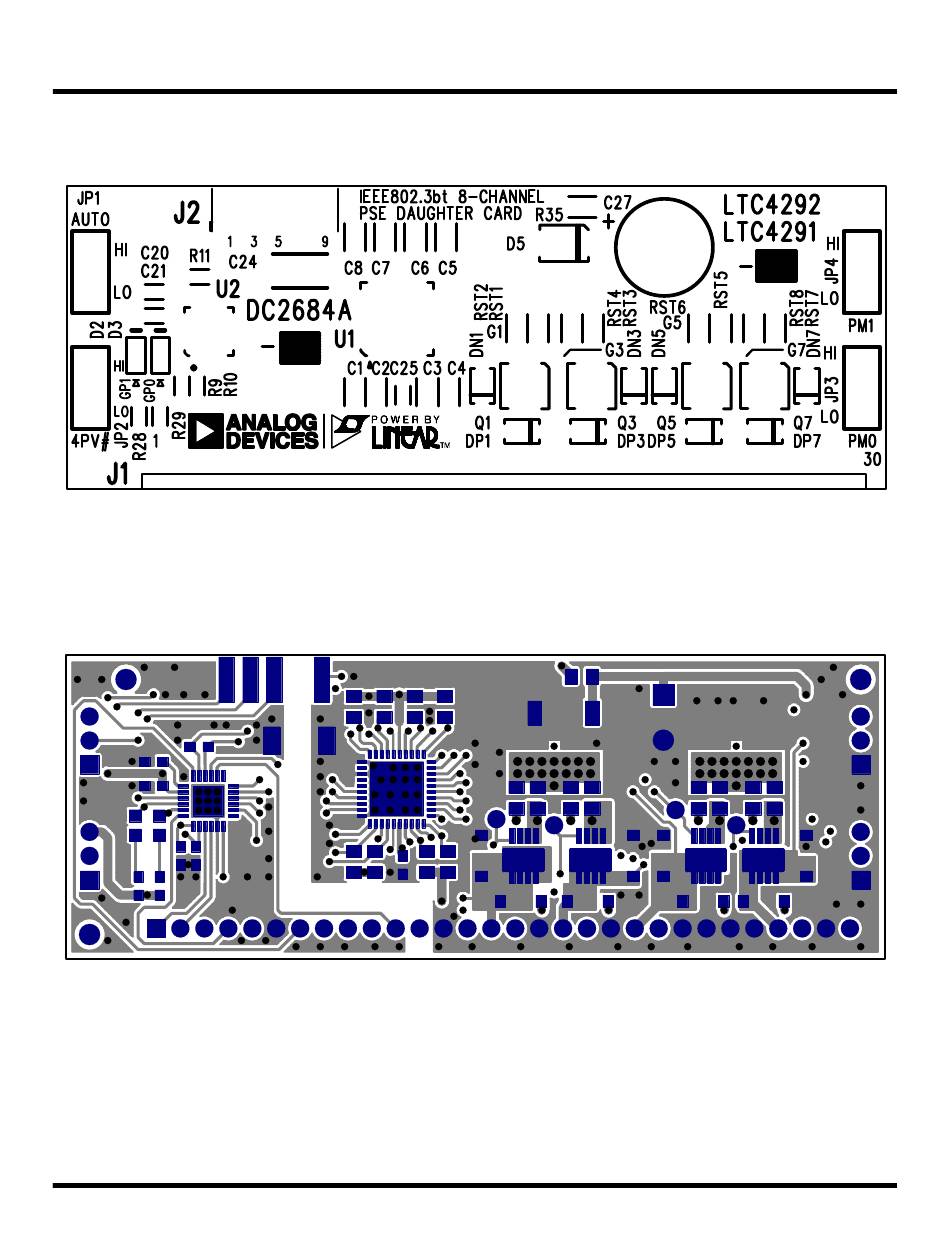

Figure 7. DC2684A-B Top Silkscreen
Figure 8. DC2684A-B Top Layer
Rev. B
9
