DEMO MANUAL
DC2685B-KIT

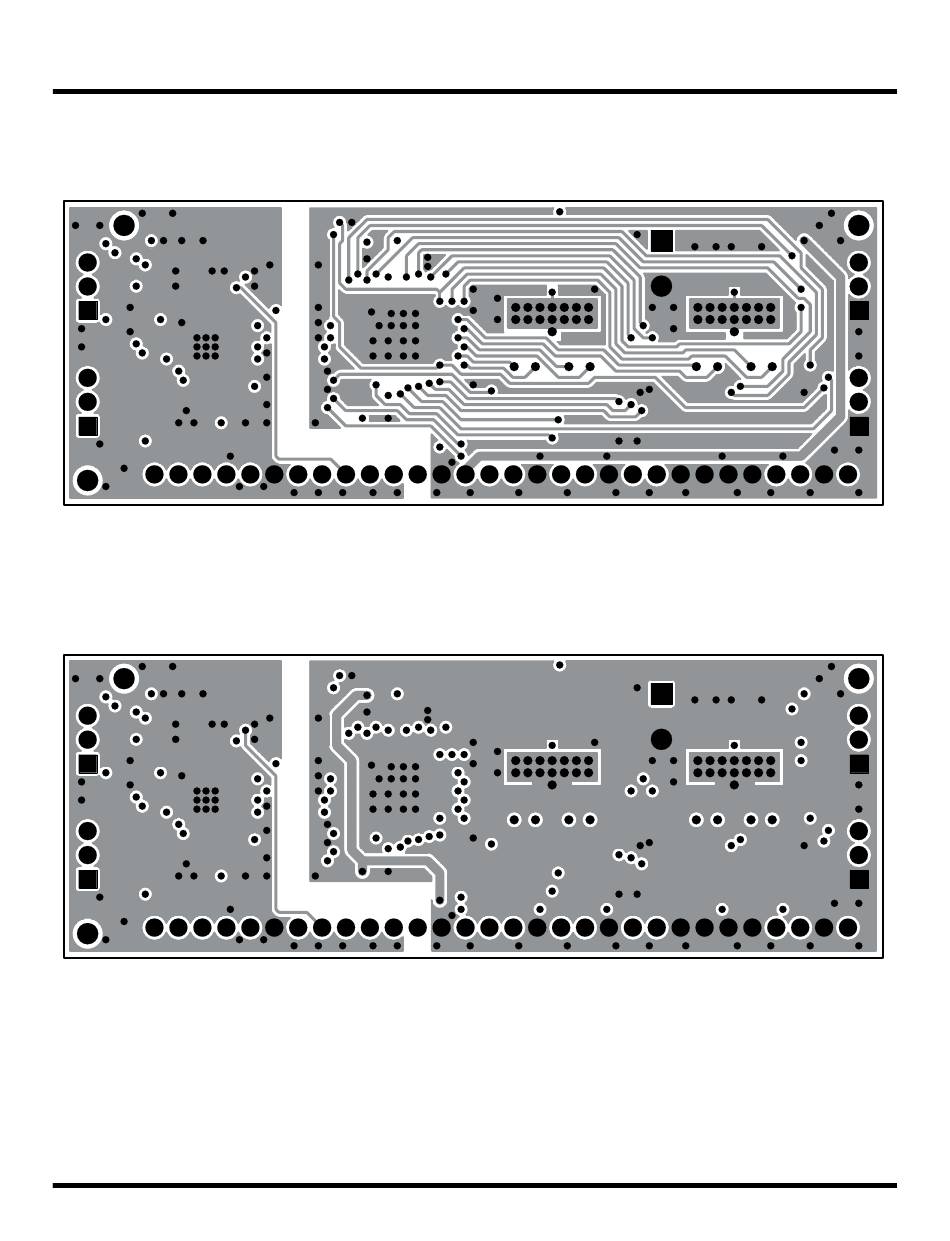

DC2684A-B DAUGHTER CARD LAYOUT FILES
10
Figure 9. DC2684A-B Inner Layer 2
Figure 10. DC2684A-B Inner Layer 3
Rev. B
