DEMO MANUAL
DC2685B-KIT
DC2683A MOTHER BOARD LAYOUT FILES
12

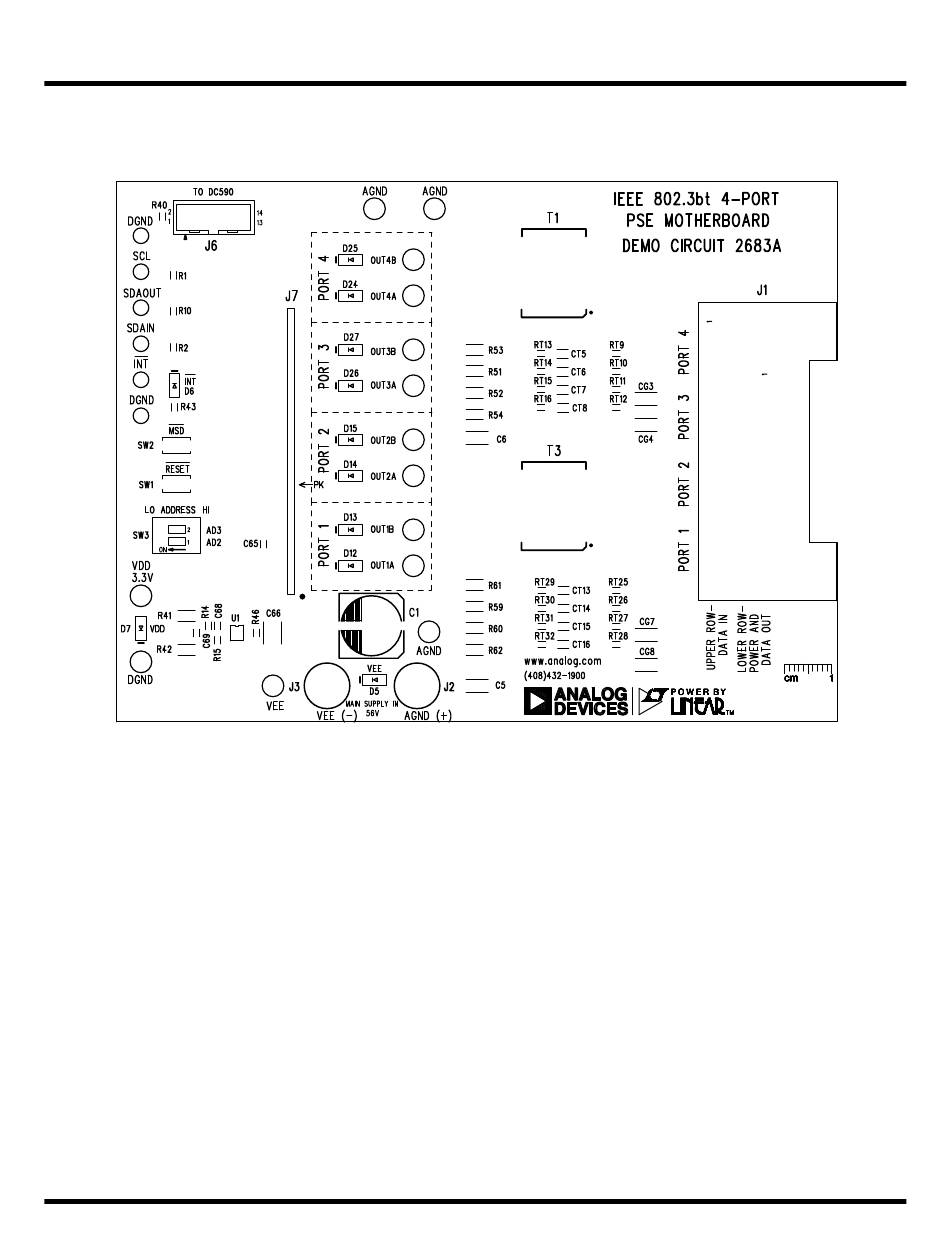

Figure 13. DC2683A Top Silkscreen
Rev. B
