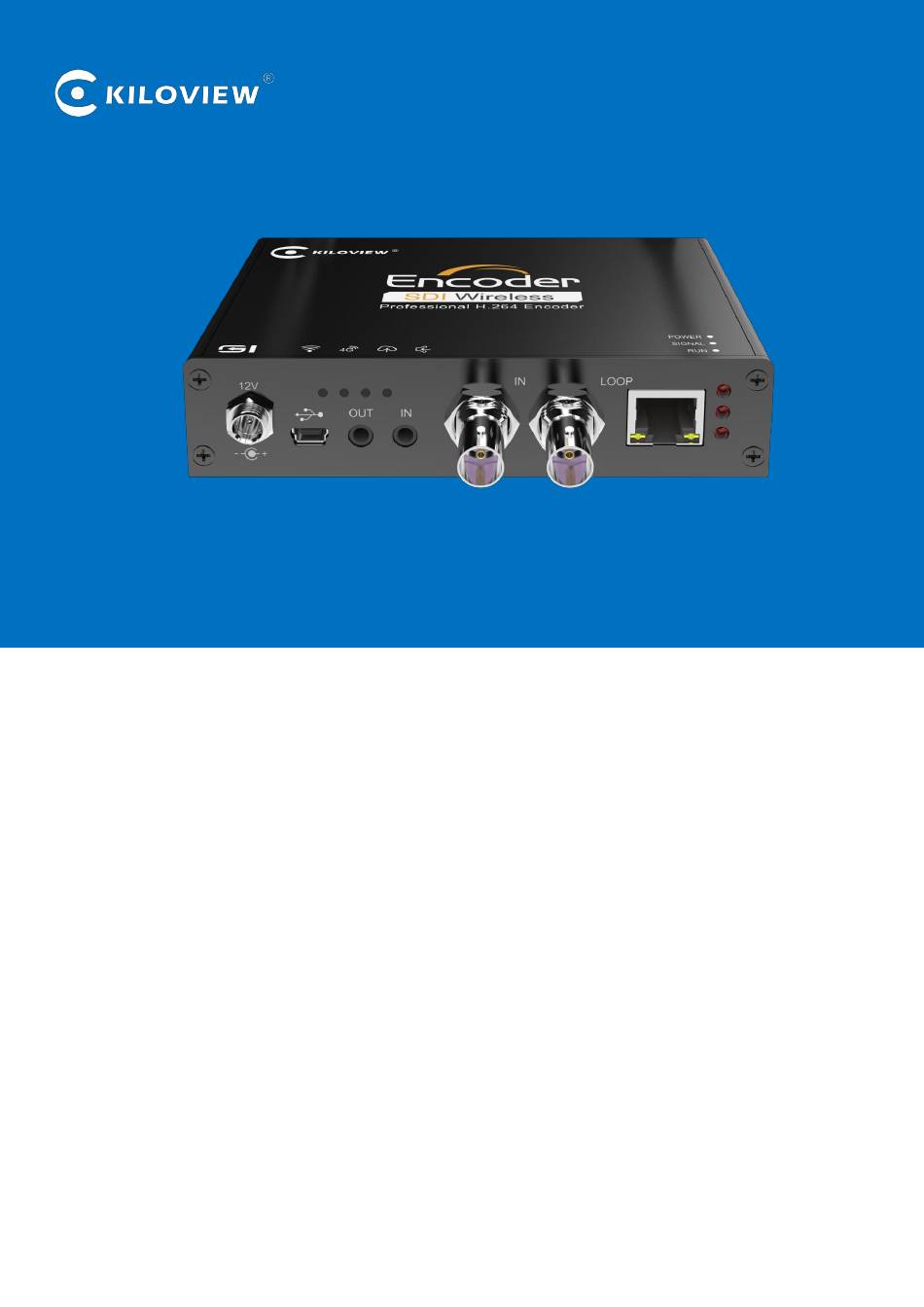

- Page 1 高清视频编码器 G1-s VideoEncoders · User Manual USER MANUAL Changsha KILOVIEW Electronics CO.,LTD.
- Page 2 Legal Notices Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd.,(Hereinafter referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using this document. This document is copyright of Kiloview, all rights reserved. The document covers the proprietary information of the company.
-
Page 3: Table Of Contents
CONTENTS PRODUCT INTRODUCTION ............................1 ............................1 S WIRELESS VIDEO ENCODER 1.1.1 Advantages ................................1 1.1.2 Parameters ................................2 OPERATION GUIDANCE ..............................3 PACKING LIST AND INTERFACE DESCRIPTION ........................ 4 ..................................4 ACKING LIST ................................4 EVICE INTERFACES ............................. 5 INDICATOR DESCRIPTIONS INSTALLATION AND CONNECTION .......................... - Page 4 ................................44 OCAL RECORDING （NAS） ............................47 ETWORK TORAGE ............................. 48 MAGE IME OVERLAY 6.7.1 Overlay Image Management ..........................49 6.7.2 Overlay function ..............................49 ..............................52 ERVICE ONFIGURATION 6.8.1 Web Service Configuration ............................. 52 6.8.2 Onvif Service Configuration ............................ 52 6.8.3 Telnet Service Configuration...........................
-
Page 5: Product Introduction
G1-s VideoEncoders · User Manual 1 Product introduction 1.1 G1-s wireless video encoder G1-s video encoder can encode SDI video source and compress into IP stream, to realize long-distance HD transmission/live broadcast over WAN or LAN network. 1.1.1 Advantages ➢ Built-in WIFI module, wireless video transmission/live broadcast supported. -
Page 6: Parameters
Custom text, image overlay function, can be superimposed to any position on the overlay screen Recording Micro SD/TF card , local recording, NAS network storage Management WEB/Android APP Power DC 12V 1A / 4W supply/consumption Size/Weight 125*89*28mm / 380g Operating -20℃~55℃ temperature Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 7: Operation Guidance
RTSP stream service is continuously turned on. ⚫ Other streaming service If necessary, you can also configure the device to push video streams such as RTMP, RTMPS, UDP, HLS, etc. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 8: Packing List And Interface Description
DC12V/1A power adaptor Quick start guide Certificate/Warranty card 3.2 Device interfaces 1, Power input 2, Mini-USB 3, Audio output 4, Audio Line in 5,SDI IN 6,SDI LOOP 7,100M Ethernet interface 8,Status leds Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 9: Led Indicator Descriptions
SDIsignal is connected SIGNAL Green Flashing Restore device to factory settings SDIsignal is not connected Always on Device is starting Flashing Restore device to factory settings Green Working abnormal/not started Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 10: Installation And Connection
Note: Due to the browser compatibility issues, it may cause the web page display abnormal, it is recommended to use Chrome and Firefox. After login, the encoding and function parameters can be set on the encoder management web page. The page is shown as below: Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 11: Log In To The Device Through The Wifi Hotspot
DHCP. It will automatically get a complete IP address, gateway and DNS according to this LAN. Click "Network & Service Settings", click "Network Manager" to enter the following interface, you can see the IP address with Ethernet. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 12 IP address is fixed as long as the encoder does not restore the factory settings, this method is more stable. Therefore, the two methods have their own advantages, and can be selected accordingly. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 13: Wifi Network
WIFI that has been successfully connected, the encoder will save this record. By default, this WIFI will be automatically connected next time. You can also select this saved WIFI hot spot to disconnect or delete the WIFI. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 14 Ethernet configuration, you must delete the gateway of Ethernet, make sure only one IP address of Ethernet is used to manage the encoder. If not, it may cause that WIFI streaming is not actually used even WIFI is connected. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 15: Network
Note: Please confirm whether USB 4G card enables dial-up connection function, SIM card is workable, otherwise the network maybe unavailable. Users can insert a USB 4G card into a computer to test whether it can provide Ethernet access function. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 16: Convenient Management Functions
192.168.1.168. Note: When accessing the device through a convenient managed IP address, your computer must have an IP address on the same network segment. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 17: Android App
⚫ The device information shown in the l list includes device interface information, device serial number, device IP address, etc. ⚫ Click your device from the device list to enter into management page. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 18 (Please refer to 6.3). ⚫ “Setting” is used for quick reset, device reboot, restoring factory settings and device name modifications. Click and enter into device information page. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 19: Parameters Configuration
0%" means the network is good and streams can be pushed to the Internet normally. Note: If Ping public IP address is reachable, but Ping domain name is unreachable. Generally, it is because the DNS server configuration is incorrect. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 20: Basic Settings
Click “Change Password”, an option box will pop up, users can modify the WEB login password, the default password is admin. 6.2.2 Location and time Click “location and time”, then users can modify system time of the encoder, or just select “Synchronize from this PC”. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 21: Restore Factory Settings
If users change parameters that lead encoder couldn’t work (Typical situation is that encoder couldn’t be visited by network after modifying network address), users could restore factory settings to default value. Two methods for restoring factory settings: Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 22: Firmware Upgrading
Web page, users can upload the firmware online. Click “Select Files” to select the upgrade file, and click “Upgrade” to upgrade the device. The upgrade process is slow, around 30s to 1 minute, please be patient. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 23: Video & Audio Adjustments
(2) Rotation/Flipping: the video can be rotated 90/180/270 degrees or can have a horizontal mirror or vertical flip applied. This is the last step before the image reaches the encoder.. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 24: Audio Signal Source
3dB means an increase/decrease of 50% gain and +/-6dB means an increase/decrease of 100%. SDI input audio group: SDI input supports 16 audio tracks, four groups with 8 pairs. You can select either pair as your audio source. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 25: Encoding & Steam
64Kbps. One more detail: if encoder using TS-UDP protocol or needs using recording, then it needs to choose “With ADTS header” under AAC format. Note: Please do "Quick Reset" to take affect if you changed the 'Resample policy' or 'Sampling' parameter. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 26: Encoding And Stream Settings
We generally set parameters of “H.264 main stream”, click “Setting”. Note: It is H.264 Main stream, the second setting, not Motion JPEG setting. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 27 “HALF” means if input video is 1920*1080P50, video framerate after encoding will be 25. This will be a good saving on the consumption of network bandwidth; customized framerate is user assigning framerate after encoding, in theory, it shouldn’t be higher than original framerate. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 28: Streaming Media Service
IP address is 192.168.2.168, then the RTSP service address is "rtsp://192.168.2.168:554/ch01", if there are several IP encoding device, these IP address can also directly pull RTSP flow accordingly. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 29 "media", and "open network stream", then enter the RTSP service URL address, you can play the video. Note: URL should be copied completely and the punctuation marks should be included. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 30: Rtmp Pushing (Live Streaming)
RTMP push configuration. The push address on YouTube platform is filled in the "push point", and set "Enable pushing" to "Yes". Click “Save”, then RTMP will stream to YouTube. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 31 Note: In the case of RTMPS push mode, fill in RTMPS URL at Push point and set ‘Use old RTMP version’ to yes, so that it can be supported. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 32: Ts-Udp Pushing (Unicast And Multicast)
No need to change Multicast TTL; If using multicast, “pushing target address” needs to write a correct multicast address (224.x.x.x ~ 239.x.x.x). “Target port” is any port, but it is better not conflicted with other service port. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 33 VLC or other decoding player. If it is multicast, please remember to close Windows firewall. Note: When the URL obtained by configuring multicast push mode is udp://225.225.5.5:5678, if played by VLC Player, it needs to add @ for playing, that is udp://@225.225.5.5:5678. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 34: Hls Service
Below is setting interface of HLS service. Very simple, if no special requirements, no need setting, only enable service. Once enabling service, it will get one HLS Publish point. You could watch it through VLC and other players using this address. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 35: Srt-Ts Pushing
1) Click “Encoding & Stream”—“Encoding and Stream Settings” –“H.264 main stream” –“Add a stream”. Choose “SRT-TS pushing”, click “OK” and add a SRT service. 2) Click the icon for SRT configuration. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 36 Load size: Sending data packet size, it is optimal that the receiving port should equip with the same size. The default size is 1316, the optimal packet for the codec. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 37: Local Recording
USB disk inserted into USB port of encoder for recording. The recording operation is as follows: 1) Click “Record” below “H.264 Main Stream” under “Dashboard” or “Encoding and stream setting”. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 38 It will record to the biggest available storage area. Recording format is TS file by default. Users could set recording for automatic cutting based on specified size. And when storage space is insufficient, it will automatically overwrite the old video file to achieve redundant storage. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 39 ⚫ When no disks inserted or NAS network storage not set, the status will be as follows , dashboard will show “Stopped”. Record status shows “No valid disks” and “No records”. ⚫ After inserted disks, the encoder will start recording automatically and the dashboard shows “Recording”. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 40: Network Storage（Nas
You need to format the TF card once. 6.6 Network Storage（NAS） NAS is a Disk Arrays connected by network; it has all the main characteristics of disk arrays: high capacity, high efficiency and high reliability. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 41: Text/ Image/Time Overlay
Please open the “Overlay image management” to upload an image first if you want to make image overlay; if text or time overlay, you can set the overlay function directly. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 42: Overlay Image Management
“Don't rotate follow picture”, please choose yes or no .Then choose “Add overlay item” to set overlay functions for “Text”, “Time” and “Image” respectively. You can set multiple overlays at the same time. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 43 For every overlay, you can set the terms of overlay, position, font and font size, Image or text content and so on. After adding that, it will be shown as follows: Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 44 ⚫ If the added image occupies the majority of the video screen, the actual bitrate and the set bitrate will be greatly reduced due to the low screen dynamic fluctuation. ⚫ For the image format, only JPEG and PNG supported. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 45: Service Configuration
Onvif can discovery/manage this device, and get the video streams. Onvif is a 'Web Service' based protocol, you can even write your program to control this device by Onvif web service API. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 46: Telnet Service Configuration
USB to Serial/FDTI chip/PL2303 chip. If the USB to RS232/RS422/RS485 converter (line) you inserted cannot be recognized and the converter chip is not supported by default, please replace the serial line. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 47: Ptz Setting
"Quick Reset" is used to quickly reset the video encoding service of the encoder, normally it’s used to parameters come into force after modification or encoding abnormal, the current encoding service will be stopped and it will take about 3 seconds. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 48: Reboot
“Reboot” is used to restart the device software, it will take about 3 minutes. 6.11 Logs and Debug System logs are available for download, which can be provided to technical service engineers for technical analysis. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 49: Preset Configuration
When there are other devices on site or the parameters of your device are restored to the factory, you want to use the parameters previously set. You can upload the saved configuration file in "manage or load preset configuration", restart the device after loading, and the parameter configuration will take effect. Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 50 Thank you for reading. Changsha KILOVIEW Electronics CO., LTD. Phone：86-731-88315979 Website：en.kiloview.com Support email：support@kiloview.com WhatsApp: +86-18573195156/18573195256 Skype: support_72698/keqiu wang Address: B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District, Changsha, China Version 1.0 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
