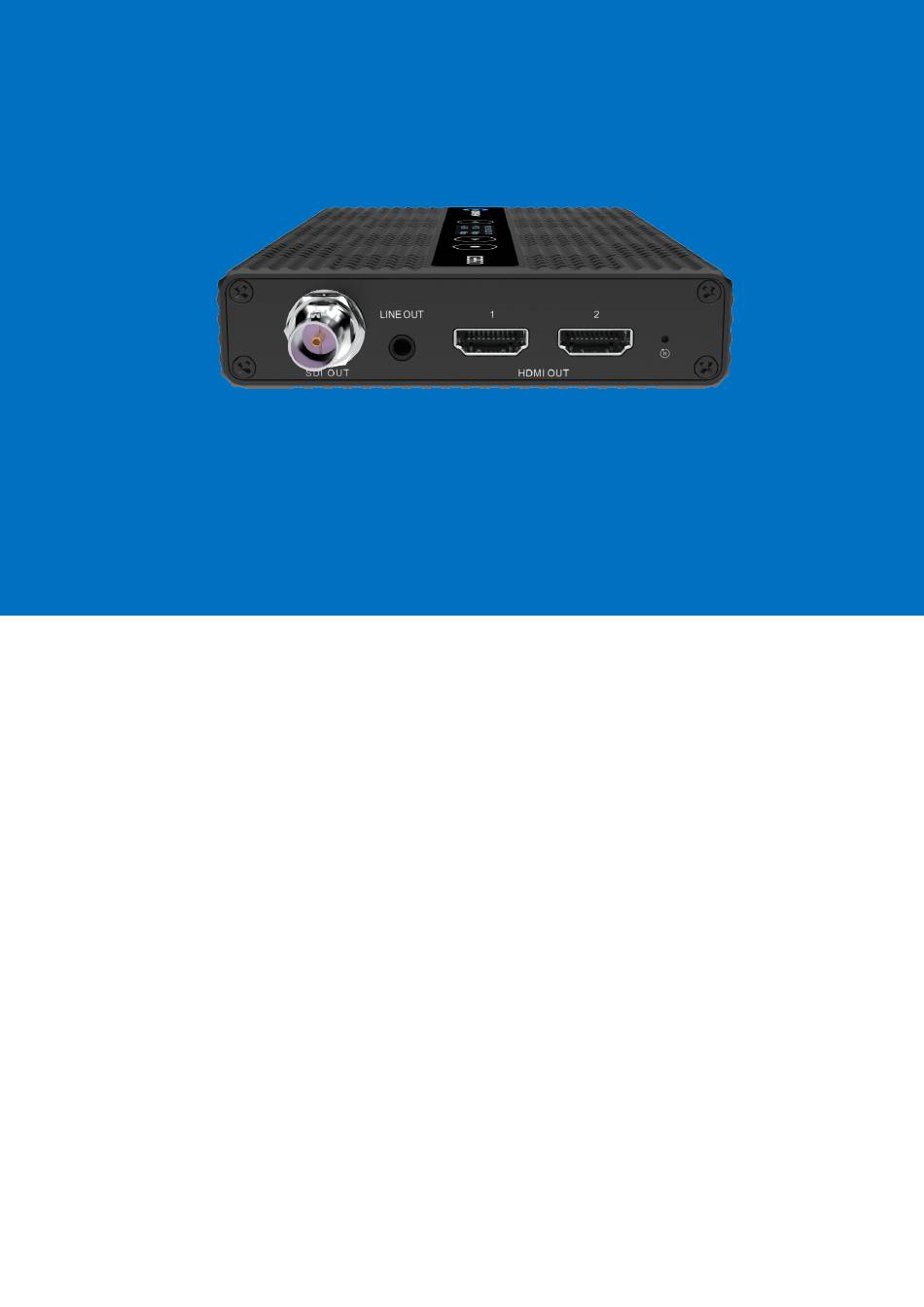

- Page 1 D350/D260 Full Function Decoder USER MANUAL Changsha KILOVIEW Electronics Co.,Ltd...
- Page 2 Legal Notices Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd., (Hereinafter referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using this document. This document is copyright of Kiloview, all rights reserved. The document covers the proprietary information of the company.
-
Page 3: Table Of Contents
CONTENTS 1 PRODUCT INTRODUCTION ..............................1 1.1 D350 FULL FUNCITION DECODER............................1 1.2 D260 D ..................................2 ECODER 2 PRODUCT PARAMETER ..............................3 3 OPERATION GUIDANCE..............................4 4 PACKING LIST AND INTERFACE DESCRIPTION ........................5 4.1 P ...................................5 ACKING 4.2 I ................................5 NTERFACE DESCRIPTION 4.3 L ..................................5... -
Page 4: Product Introduction
1 Product Introduction 1.1 D350 FULL FUNCTION DECODER D350 · 4K UHD DECODER, is a professional hardware decoding device for IP network video streaming. D350 can decode multiple video streams with resolutions up to 4Kp60 with simultaneous output, supports NDI, NDI|HX2.0, NDI HX3.0, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, RTSP and others to fully meet the decoding applications of various network video streams. -
Page 5: D260 Decoder
D350/D260 4K DECODER· USER MANUAL 1.2 D260 Decoder D260 HD video decoder is Kiloview's new generation of high-performance IP video decoding device, supporting multiple IP media transmission protocols, video CODEC formats and audio CODEC formats. Compared with DC230, D260 is more powerful as it has two HDMI and one 3G-SDI output ports, with H.265 (HEVC) video decoding supported. -
Page 6: Product Parameter
1xUSB Type-A，1xUSB Type-C Power 12V, 1A 12V, 1A 1x Power Indicator,1x working status 1x Power Indicator,1x working status LED Indicator Indicator Indicator Management Web/KiloLink Server Web/KiloLink Server Power 7W(MAX) 7W(MAX) consumption Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 7: Operation Guidance
HDMI/SDI interface. Then drag the added video source to the output window and the decoder will start decoding it. If the decoding is normal, the video will be output. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 8: Packing List And Interface Description
Power port (11) Indicators 4.3 Led Indicator Name Color Status Description Power is on Power LED Indicator Power is off/abnormal Flash Device is normal Green Device is abnormal or not ON/OFF started Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 9: Installation And Connection
Note: Please use the standard power adaptor equipped because other unqualified power supplies may damage the device. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 10: Connect Analog Audio
Connect one end of the cable to the decoder NET 1, the other end is connected to the network switch or the computer's Ethernet port. Both NET 1 and NET 2 are workable, normally using NET 1. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 11 D350/D260 4K DECODER· USER MANUAL Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 12: Login And Network Configuration
1) Roll your mouse and click the network icon in the lower right corner, click on "Network and Internet Settings" and then click on "Network and Sharing Center"; 2) A network connection panel will pop up and the left mouse button will click "Ethernet"; Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 13 4) The computer defaults to "Obtain an IP address automatically", at which point you need to select "Use the following IP address", and manually enter the IP address 192.168.1.xand subnet mask, and click "OK". Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 14 The left window is for preview by default, the right one is the output 1/2 for decoding. Users can choose to close the preview window. The decoder page looks like this: Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 15: Network Configuration
Click "Network" to enter the configuration page. The network interface icon is shown as green to indicate the normal working state of network, and the network interface icon is shown as orange to indicate the disconnected state of network. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 16 "DHCP Dynamic" and "Manual Set". The IP address obtained by DHCP may change, while the IP address specified manually is fixed for the convenience of device management. IP address configuration is according to the actual situation of your local network configuration. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 17 IP address is manually configured or modified, otherwise the IP address may be lost. If you want to save the configuration immediately, you can restart the device on the Web page. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 18: Oled Display And Touch Screen Buttons
D350/D260 4K DECODER· USER MANUAL 6.3 OLED display and touch screen buttons OLED display and touch screen buttons for D350/D260 to quickly check the IP/output information. 6.3.1 OLED display and touch screen button On the display, users can view the current interface, decoding resolution, IP address, live upstream and downstream networks. -
Page 19: Function Configuration
Click "Add" to configure the parameters in the pop-up dialog box, and click "OK" to add a video source. Two URL addresses can be added under the same” Name”, one main stream and one sub-stream. The main streaming address for decoding output. The sub-streaming Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 20 The above picture shows how to add a video source by adding an RTSP source as an example. The steps for adding other types of video sources are the same. The parameters please refer to the table below. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 21: Add Srt Source
Network receive port, range1-65535 port Binding Default auto network Video CODER Format [PT,]CODER[/Timestamp],e.g.96,H264/90000 Format [PT,]CODER[/Timestamp/Soundtrack], e.g.96,MPEG4- Audio CODER GENERIC/48000/2 7.1.2 Add SRT source 1) Add an SRT source on WEB page by "Media">"Add Source">"SRT". Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 22 Multiply this percentage value by the total video and audio bitrate encoded by the encoder to get the maximum bandwidth occupied by the overhead allowed by Bandwidth Overhead. The sum of this value and the video and audio Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 23 2) Please drag the added SRT source to the output window, and the decoder starts to listen for SRT requests, it will establish the SRT connection while receiving the right SRT "Call". After connected, the status will show “Pull”. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 24: Add Ndi|Hx Source
According to the device name and channel name of your NDI source, select and “Add” the source you want to decode, the video source will be added to the video source list. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 25 IP address in the "IP" box, click , the IP address will be added to the "Manual Scan Address List". You can add multiple IP addresses to search at the same time, and then press "OK". Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 26: Ndi Discovery Server
The NDI discovery server function is a discovery mechanism that is different from the NDI automatic discovery function. It supports NDI centralized registration discovery and cross-network segment discovery. After the specified NDI source and receiver are Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 27 NDI will register to the server. It is recommended that the server address is configured as a static IP address to prevent the loss of NDI connection due to IP reassignment. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 28: Video Source List
Yellow “Reconnecting" indicates that the source is decoding abnormally and tries to connect and decode. The Red “wrong” indicates the source is wrong and can not be decoded. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 29: Video Source Preview
➢ Preview supports 1/2/4/9/16 split screen, up to 16 split screen previews; ➢ Required browser: the latest version of Google and Edge; ➢ Only support for local preview in the same LAN for the computer and device, and Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 30: Video Output Setting
The decoder supports H.265/H.264 decoding and simultaneously output of the same and different sources or split screens. Take "Output 1" as an example for detailed description on the output window (shown as below): Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 31 ① Click the gear button to set video output parameters. Video output format: D350 supports HDMI (up to 3840x2160@60Hz)/SDI (up to 1920x1080@60Hz) multiple resolution configurations. Support 2 channels of 4Kp60 video, or 6 channels of 4Kp30 and below high-definition video decoding output simultaneously, and up to 16 channels of 1080P 50Hz/60Hz simultaneously.
- Page 32 ③Setting up the way of video output There are 3 output modes: HDMI1/HDMI2/SDI stream. If select HDMI1, it means the current source will be output to HDMI2 interface; If SDI, the current source will be Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 33 You can set the gain of "embedded" and "analog" audio of HDMI/SDI. ⑦Screen splitting settings The decoder can display 4 split screen modes by default, and optional layout of 1/2/3/4/5/6/7/8/9 split screens. By clicking the extension button on the right, you can Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 34: Image And Osd Overlay
7.5 Image and OSD overlay Image overlay is divided into logo and background overlay. First, you need to upload the image in the image management, and then go to the overlay settings for overlay settings. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 35 Note: Overlay logo should not be too big, otherwise it will cover too much in video. Image formats only support JPEG and PNG at present. 2) OSD overlay Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 36 ➢ Vertical shift: Adjust character position in the vertical direction of the screen. The unit is character. Then set the overlay parameters, select "Overlay Type", and configure the overlay function separately for the "Text" and "System Time" and "the overlay items". Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 37 ➢ Vertical position: When the overlay position is customized, adjust the character shift based on the global vertical shift setting; ➢ Text style: normal and bold; ➢ Text outline: 0-10px; ➢ Text color: optional; ➢ Border color: optional Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 38: System Setup
8.1.2 System Time Timing mode can be set: synchronization with current PC, manual timing and slave NTP server. Select the right time zone to ensure the correct time from the NTP server. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 39: Reset
3S. 8.1.4 Reboot Device software restart, it lasts about 1 minutes. 8.1.5 Restore If the device cannot work normally after modified the parameters or forgot internet IP Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 40: Firmware
After the firmware is uploaded successfully, the power cannot be cut off during the upgrade process. After the upgrade, the device will restart. The whole upgrade process will last about 3-5 minutes (depending on the size of firmware and network environment). Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 41: Equipment Maintenance
Running status: CPU usage of the device; memory usage; CPU temperature. Equipment maintenance: Reboot the device regularly and the reboot time can be set. Screen Timeout settings: automatic off-screen Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 42 Thank you for reading KILOVIEW Electronics CO., LTD. Tel: 86-731-88315979 Website: www.kiloview.com/en Technical support Email: support@kiloview.com Skype: kiloview-support WhatsApp: +86-18573195156/18573195256 Address: B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District, Changsha, China Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
