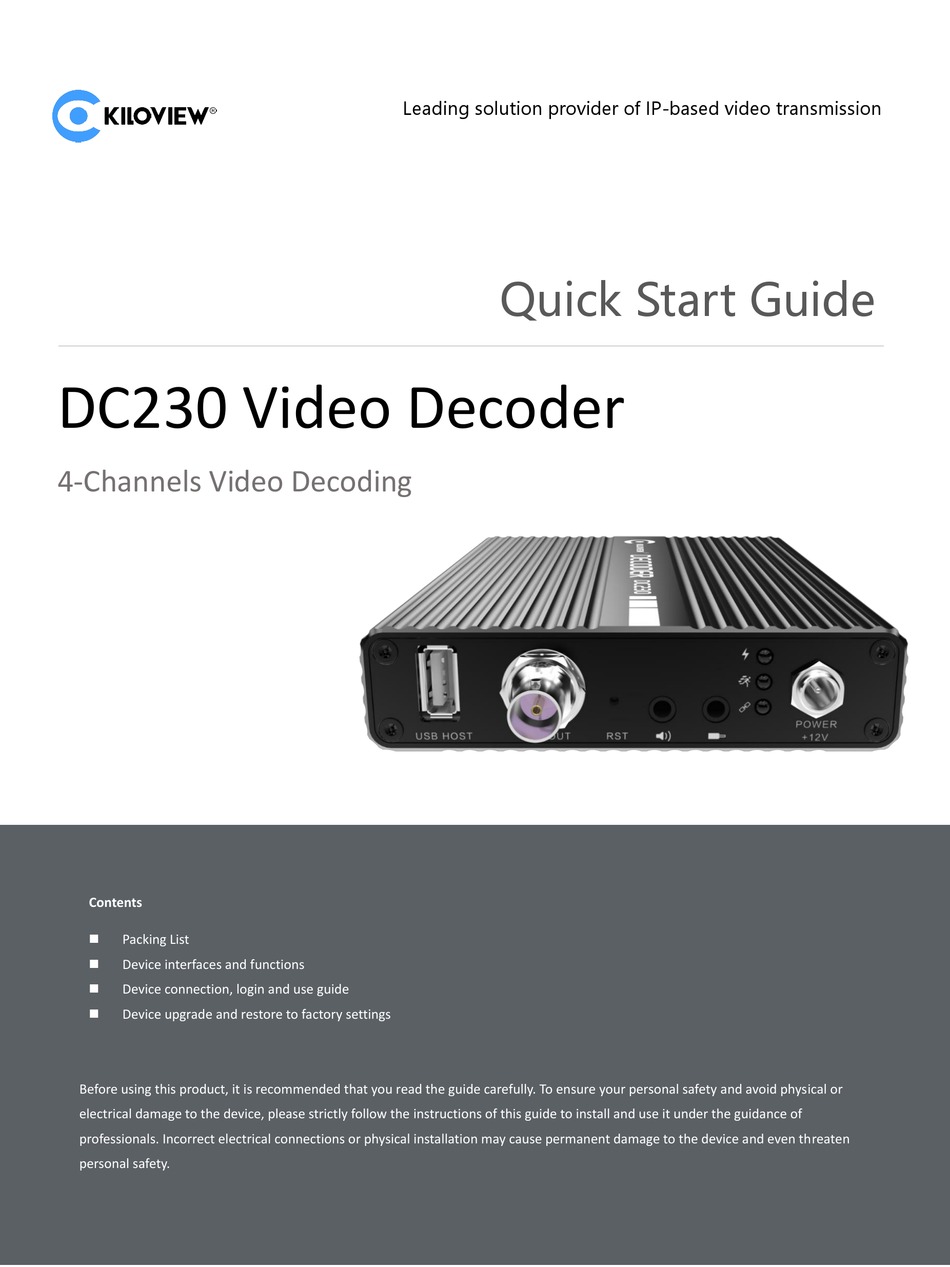

DC230 Video Decoder
4-Channels Video Decoding
Contents
◼
Packing List
◼
Device interfaces and functions
◼
Device connection, login and use guide
◼
Device upgrade and restore to factory settings
Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or
electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the guidance of
professionals. Incorrect electrical connections or physical installation may cause permanent damage to the device and even threaten
personal safety.
Leading solution provider of IP-based video transmission
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for Kiloview DC230
Summary of Contents for Kiloview DC230
- Page 1 Leading solution provider of IP-based video transmission Quick Start Guide DC230 Video Decoder 4-Channels Video Decoding Contents ◼ Packing List ◼ Device interfaces and functions ◼ Device connection, login and use guide ◼ Device upgrade and restore to factory settings Before using this product, it is recommended that you read the guide carefully.
-
Page 2: Packing List
Page 1 1 Packing List (1) DC230 ×1 (2) Power Supply ×1 (3) DVI to HDMI Adapter×1 (4) Warranty Card ×1 (5) Quick Start Guide ×1 2 Device Interfaces USB expansion port Working Indicator SDI output Power port Reset 1000M Ethernet port 3.5mm Line in/Line out... -
Page 3: Device Indicators
Page 2 3 Device Indicators Name Color Status Description Power connected Power Power off or failure Network is connected LED Indicators Device reset to factory / network abnormal LINK Green Flashing Network abnormal/not connected Working White Device is abnormal or not started 4 Device Connection IP stream AC100~240V... - Page 4 5 Login to the device WEB page The default fixed IP address of DC230 is 192.168.1.168. Please configure your computer network to 192.168.1.xxx when you use DC230 for the first time, and then enter http://192.168.1.168/ in the browser to visit Web UI.
- Page 5 ⚫ If video source is from network, it is required to configured with a high buffer time for playback buffer until the video decoding output is smooth. For more information about how to add the video source, please visit: https://www.kiloview.com/en/support/docs/dc230/...
- Page 6 6.3 Output There are two output windows on the DC230 webpage. You can select SDI or DVI (HDMI and VGA compatible) to decode and output the same or different content in the upper right corner of the window. Drag the video...
- Page 7 The audio is turned off by default, and it can be turned on by click the red speaker in the lower left corner of the output window. ⚫ Multi-screen output needs to be configured by adding a layout, and supports up to 4 grids output. For more info about DC230 output layout configurations, please visit: https://www.kiloview.com/en/support/docs/dc230/...
-
Page 8: Firmware Upgrading
Select “video decoders”>DC230”, find and download the latest firmware. 7.2 Upgrade device firmware Login to the web page of DC230, click "Settings">"Firmware Upgrade" to check if there is any latest firmware available to download. If yes, select the downloaded firmware and click “Firmware Upgrade”. -
Page 9: Restore To Factory Settings
Page 8 8 Restore to factory settings If the device cannot work normally after modified the parameters or forgot internet IP configuration and couldn’t search and find the device, please restore factory settings. Two methods for restoring factory settings: 1) If you can login to web page, then via the web page, click "Settings > System settings > Restore factory settings". - Page 10 Page 9 Any In, Any Out, Anywhere Please scan with browser KILOVIEW Electronics CO., LTD. Tel：86-18573192787 Email：support@kiloview.com Web：www.kiloview.com/en Address: B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District, Changsha City, Hunan Province, China.
