- Page 1 4K UHD HDMI/NDI Bi-Directional Converter USER MANUAL Changsha KILOVIEW Electronics Co.,Ltd...
- Page 2 Kiloview. The name and logo are the trademarks or registered trademarks of the company. Other products or company names mentioned in this document may be the trademarks or registered trademarks of their respective owners.
- Page 3 is a registered trademark of NewTek, Inc.. ®...
-
Page 4: Table Of Contents
CONTENTS 1 PRODUCT INTRODUCTION...............................1 1.1 P ................................2 RODUCT EATURES 1.2 T ..............................3 ECHNICAL PARAMETERS 2 USER GUIDE..................................5 3 PACKING LIST AND INTERFACE DESCRIPTION......................6 3.1 P ..................................6 ACKING LIST 3.2 I ..............................6 NTERFACE DESCRIPTION 3.3 L ................................6 ED INDICATORS 4 INSTALLATION AND CONNECTION.......................... - Page 5 9.5 D ...............................26 ISCOVERY SERVICE 10 SYSTEM SETTINGS................................ 29 10.1 U ..............................29 ANAGEMENT 10.2 R ..................................29 EBOOT 10.3 R ..................................29 ESTORE 10.4 F ..............................29 IRMWARE PGRADE...
-
Page 6: Product Introduction

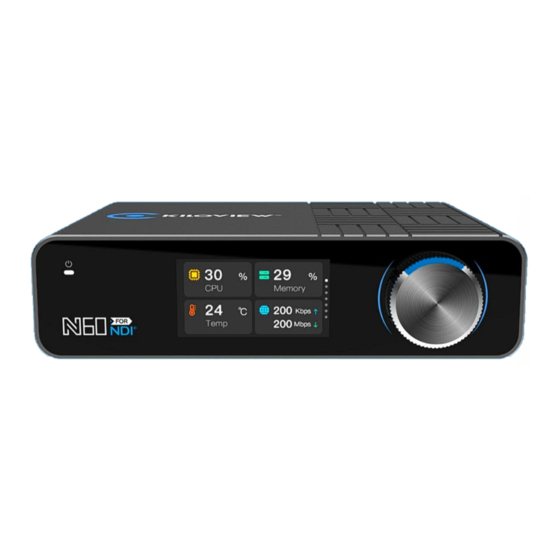

As the latest product, N60 further improves the user experience. It provides a color LCD display and a scroll wheel on the front panel. N60 can display the device status and obtain configuration parameters, the recording operations and IP address configuration. At the same time, LCD display can work as a Tally. -
Page 7: Product Features
N60 for NDI·USER MANUAL V1.6 With exquisite and compact appearance, N60 has an excellent heat dissipation design, which is convenient for you to use in different scenarios. Cold shoe fixing accessories, V-Mount and other expansion are provided with additional cost. -
Page 8: Technical Parameters
1.91" LCD screen, Kiloview Magic Rotor interaction Tally Built-in OLED panel available as front/rear Tally Power DC12V/2A or PoE Mounting Support cold-shoe mounting and V-mounting Power consumption 16W MAX Dimension 135x98x35mm Weight 545.00g Working -20°C~45°C temperature Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 9 N60 for NDI·USER MANUAL V1.6 Storage -20°C~70°C temperature Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 10: User Guide
NDI stream directly. NDI Decoding To find the NDI source in the same LAN or manually adding the source across the network and decode the corresponding source to the display. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 11: Packing List And Interface Description
1000M Ethernet port 1000M Ethernet- PoE USB expansion port HDMI OUT HDMI IN Tally Micro SD/TF slot Status Indicator LCD screen Scroll wheel 3.3 Led indicators Video Status Tally/LCD screen Green Light Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 12 N60 for NDI·USER MANUAL V1.6 Red Light Name Color Status Description Always Led indicators Power connected Power White No power supplied or power failure Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 13: Installation And Connection
N60 for NDI·USER MANUAL V1.6 4 Installation and connection 4.1 Connect Video Signal Connect an HDMI video cable from a suitable video source to N60’s input connector. The HDMI output is connected to the display device via an HDMI cable. 4.2 Connect Network Connect the network cable to Ethernet of the device. -
Page 14: Connect Power Supply
After connecting the power adapter (DC 12V/2A), the power light will be on and device starts working. (If you use PoE for power supply, there is no need to connect the adapter). Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 15: Lcd Screen And Scroll Wheel
N60 for NDI·USER MANUAL V1.6 5 LCD Screen and scroll wheel N60 provides a color LCD screen and a scroll wheel on the front panel. It can view the device status and obtain configuration parameters, and operates the recording operations and IP address configuration. - Page 16 The output resolution and NDI stream is shown on the screen. Please take below picture for reference. Press the scroll wheel to enter the sub menu, and modify the working mode that switching from the Decoder (decoding mode) to the Encoder (encoding mode). Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 17: Device Status
N60 for NDI·USER MANUAL V1.6 5.2.2 Device status The second page of the LCD screen shows: the current working status of N60, CPU usage, memory usage, current temperature of the device, the current version of the device. CPU：CPU usage; Memory：Memory usage;... -
Page 18: Video Information
5.2.4 Video information The fifth page of the LCD screen shows: HDMI IN/OUT resolution and color space information. If N60 is in encoding mode, then it shows HDMI IN. HDMI IN: HDMI input HDMI OUT: HDMI output YCbCr: Color space data Resolution: HDMI IN/OUT resolution Copyright ©... -
Page 19: Audio Information
AUDIO IN, indicates that the current audio is HDMI input and Connected. 48KHz|Stereo: Stereo Sampling Rate | Stereo. AUDIO OUT ，indicates that the current audio is in the HDMI output, and displays the current output sampling rate and number of channels. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 20: Login And Network Configuration
DHCP by default, which will automatically get a full IP address, gateway and DNS based on this LAN. The N60 has two Gigabit network ports, of which Network 1 supports POE. Here take Network 1 as an example. - Page 21 There are two ways to get the address, one is DHCP, and the other is manual. By DHCP to automatically obtain IP, you must first ensure that the router or switch has enabled the DHCP service. the N60 will obtain a dynamic IP address assigned by the router or switch (with DHCP service enabled).
-
Page 22: Ndi Discovery And Monitoring
N60 for NDI·USER MANUAL V1.6 7 NDI discovery and monitoring N60 is a professional video encoding/decoding device for NDI video production, which can encode HDMI video sources into NDI streams for transmission over Ethernet or decode NDI streams for output to any compatible system, device or software in the network. - Page 23 "NDI/Desktop capture" to display the list of NDI sources. Depending on the device name and channel name, you can select the device you want to add and click "OK" to add the selected NDI source to the vMix source list. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 24: Ndi Encoding Bitrate
8 Encoder Configuration 8.1 NDI Configuration N60 is a professional video encoding/decoding device for NDI video production, which can encode HDMI video sources into NDI streams for transmission over Ethernet or decode NDI streams for output to any compatible system, device or software in the network. -
Page 25: Status Column
Encoding quality: When decreasing or increasing the encoding quality, the encoding image quality and the encoding bitrate are adjusted as well. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 26: Ndi Connection
2. For the color space, N60 only supports changing the color space of NDI|HX encoding, not for Full NDI color space. When the video resolution is 4K P50/60, the color space of Full NDI encoding is YCbCr:4:2:0 8bit; and when the video resolution is lower than 4K P50, it is YCbCr:4:2:2 8bit. -
Page 27: Discovery Of Ndi Sources
WEB page. 9.1 Discovery of NDI sources The N60 can discover NDI sources on the same LAN autocratically and display them in the source list. Click to update the network NDI sources in real time. - Page 28 If you want to search for devices with different group names in the same subnet, filling in the specified group name after “Group” (e.g. kiloview), click the “Enter” button, two group names will be displayed in the "Group" box. Then click the "OK" (no need to fill in the IP address) and the device will search for the NDI source of both group names at the same time.
-
Page 29: Decoding Output
9.2 Decoding Output Click next to the NDI source to decode and output the video source directly. 9.3 Decoding Preset N60 supports up to add 9 preset decoding windows, click the NDI source and the device starts decoding the video. window. Click... -
Page 30: Decoding Parameter Configuration
9.4 Decoding parameter configuration “Current decoding output” displays the current decoding NDI source name, channel name, resolution/frame rate, audio parameters, source IP address, real time bit rate and frame rate and so on. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved... - Page 31 Install NDI tools at the receiving end and open “NDI Access Manager”. Click to enter "advanced", cancel "Multicast Sending Enabled" function, select "Use Discovery Server", and set the "Server IP" address the same to your computer that enables the discovery server function. After Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 32 USB. Secondly press【NumLock】 on the keypad, if the light is on, you can operate to decode and switch. Press 1-9 to select the corresponding preset decoding sources, and 0 is blank Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 33 N60 for NDI·USER MANUAL V1.6 Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 34 If you need help, please contact our technical support to complete the upgrade. Copyright © KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 35 Step 1: Prepare a USB flash drive or SD card, copy the firmware file downloaded from Kiloview website to the USB flash drive/SD card. Step 2: Insert the USB flash drive or SD card into the N60, after the device turned on (about 2s), wait for...
- Page 36 Step 4: During the upgrading, it will prompt with "Updating! Please keep the power on." (Please do not power off). Step 5: When the N60 screen displays "Firmware updated successfully", the N60 has completed the firmware upgrade. At this time, any operation of the scroll wheel will help you return to “RECOVERY”, please select “Reboot”...
- Page 37 Thank you for reading! KILOVIEW Electronics CO., LTD. Tel: 86-731-88315979 Website: www.kiloview.com/en Technical support Email: support@kiloview.com Skype: kiloview-support WhatsApp: +86-18573195156/18573195256 Address: B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District, Changsha,China Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
