Summary of Contents for Atlona AT-LINE-PRO5-GEN2
-

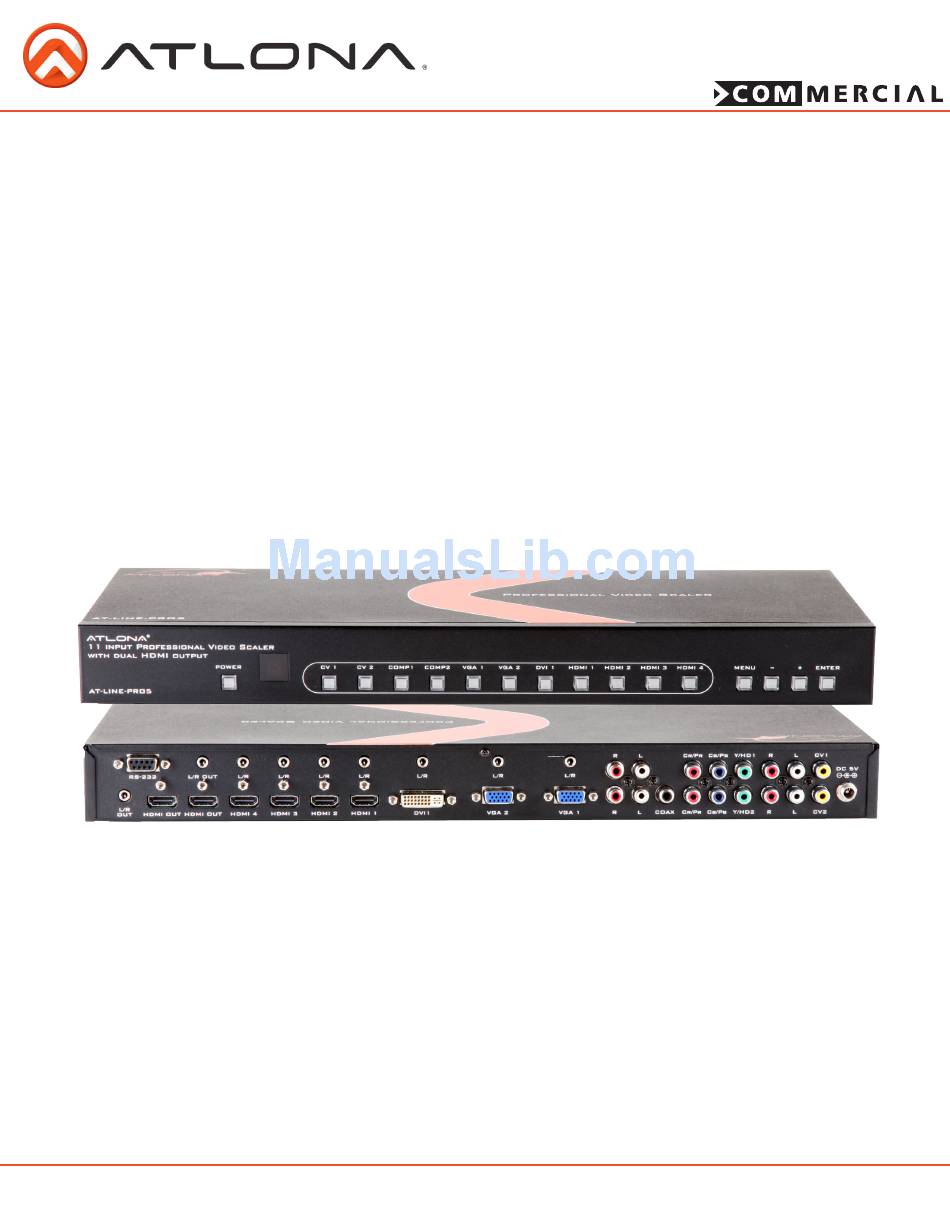

Page 1: User Manual

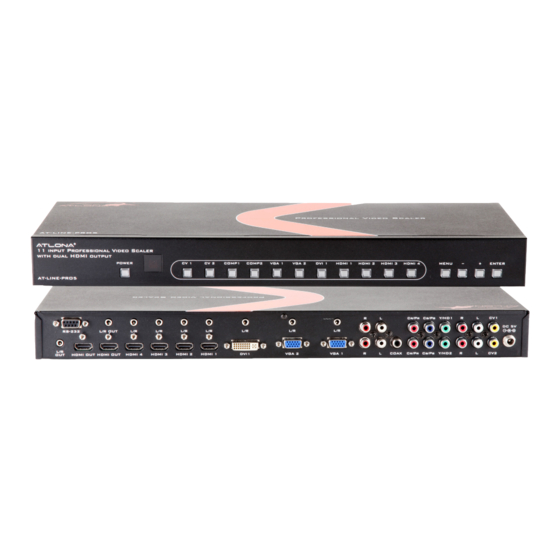

Atlona 11 Input Scaler and Switcher w/Dual Mirrored HDMI Outputs AT-LINE-PRO5-GEN2 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
.................... 5 7. On Screen Display Options .................... 8 8. Connection and Installation .................... 7 9. RS-232 .................... 7-11 10. Safety Information .................... 12 11. Warranty .................... 13 12. Atlona Product Registration .................... 14 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona 11 Input Scaler and Switcher w/Dual Mirrored HDMI Outputs allows 4 x HDMI or DVI (with use of HDMI to DVI adapter i.e AT14048), 1 x DVI, 3 x VGA, 2 x Component, 2 x Composite video inputs to be scaled to a dual HDMI outputs. -
Page 4: Specifications
7. HDMI 1 through 4: Press the HDMI number to choose input 1, 2, 3 or 4, the LED will illuminate red 8. MENU: Press this button to bring up the On Screen Display. 9. -/+: Press -/+ buttons to make a selection. 10. ENTER: Press this button to confirm the selection. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
On Screen Display Menu to select them. 7. MENU: Press to bring up On Screen Display. 8. Auto Adjust: Press to optimize the position of the picture (picture centering) on the screen. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: On Screen Display Menu
Note: If there is no signal coming from the source selected then either a color bar or black screen will display. Switch between the color bar and black screen by selecting yes or no on colorbar in the OSD option of the On Screen Display Menu. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Connection And Installation
Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used 9 8 7 6 ---- Not used ---- Not used Baud Rate: 19200bps Data Bit: 8bits Parity: None Stop Bit: 1bit Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: On Screen Display Options
> OUTPUT WXGA Set the output EDID to WXGA (1280x800@60) S OUTPUT 17 > OUTPUT WSXGA Set the output EDID to WSXGA (1680x1050@60) S OUTPUT 18 > OUTPUT WUXGA Set the output EDID to WUXGA (1920X1200@60) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 9 Adjust the OSD Timeout between 0 and 100 S OSDBACKGROUND 0~8 > OSDBACKGROUND 0~8 Adjust the OSD Background between 0 and 8 S AUDIOMUTE 0 > AUDIOMUTE OFF Unmute the Audio S AUDIOMUTE 1 > AUDIOMUTE ON Mute the Audio Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 > OSDTIMEOUT 0~100 Displays OSD TIMEOUT value R OSDBACKGROUND > OSDBACKGROUND 0~8 Displays OSD BACKGROUND status R AUDIOMUTE > AUDIOMUTE OFF~ON Displays AUDIO MUTE status R AUDIODELAY > AUDIODELAY OFF~150ms Displays AUDIO DELAY status Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 Remote control key LEFT K RIGHT > RIGHT Remote control key RIGHT K EXIT > EXIT Remote control key EXIT K AUTO > AUTO Remote control key AUTO K RESET > RESET Remote control key RESET Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 12: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-LINE-PRO5-GEN2. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 13: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 14: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
