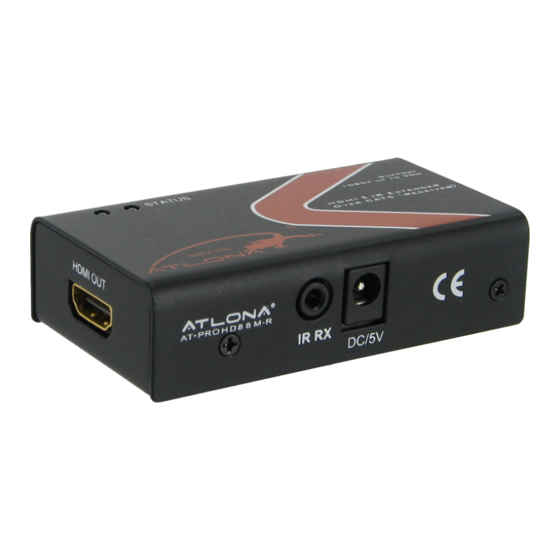

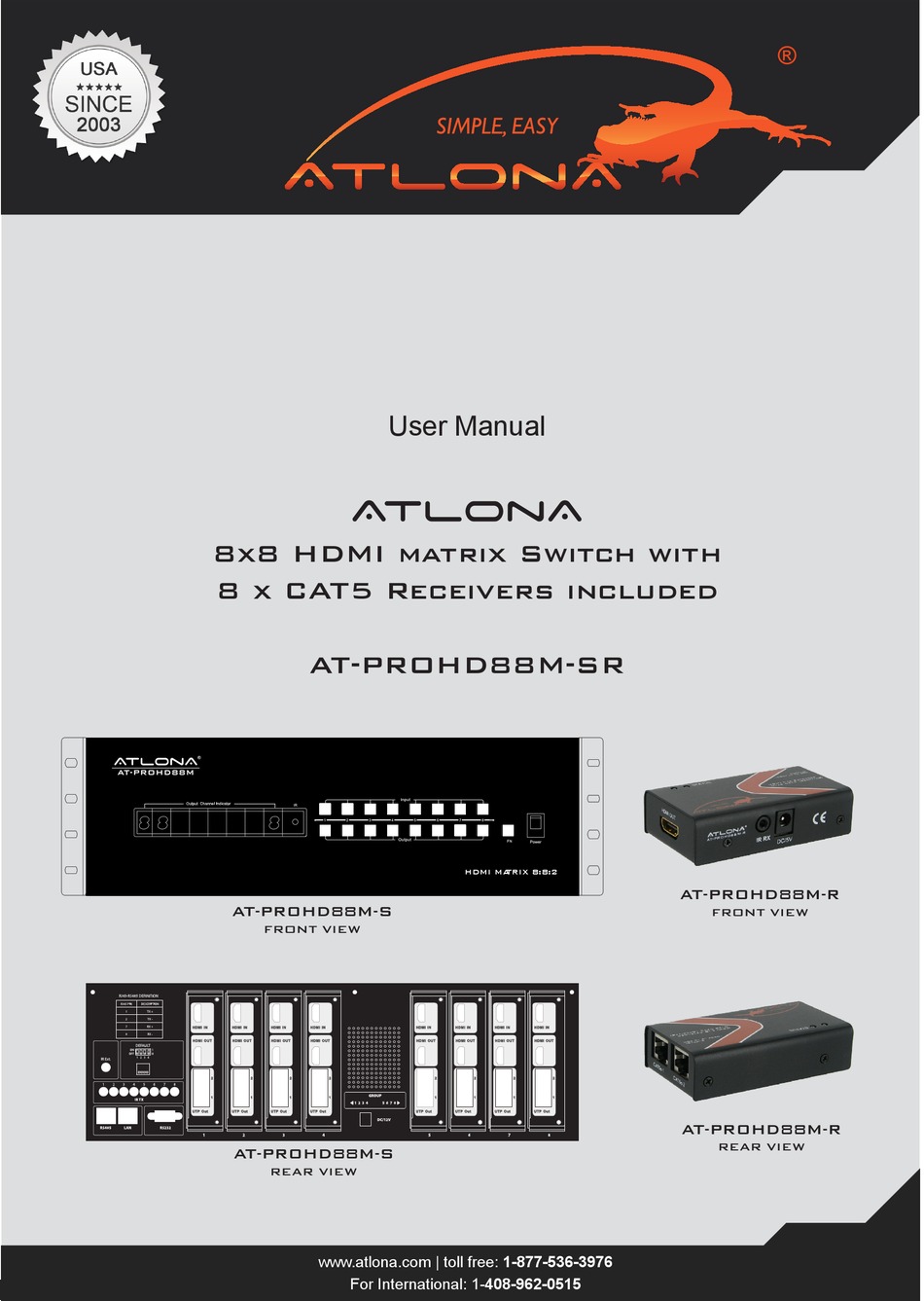

- Page 1 User Manual AtlonA 8x8 HDMI matrix Switch with 8 x CAT5 Receivers included AT-PROHD88M-SR HDMI MA TRIX 8:8:2 AT-PROHD88M-R AT-PROHD88M-S FRONT VIEW FRONT VIEW AT-PROHD88M-R REAR VIEW AT-PROHD88M-S REAR VIEW www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
..........6. Connect and Operation ..........7. IR Remote Control ..........7.1. RS232 Control ..........7.2. RS232 Cable Wiring ..........8. Safety Information ..........9. Warranty ..........10. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
Atlona Technologies’ AT-PROHD88M-SR is an 8x8 HDMI Matrix Switcher over Twisted Pair designed to work as a switcher for multiple Audio/Video sources and displays. The Atlona unit is capable of switching HDMI signals between eight sources (such as: Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) and eight displays. -
Page 4: Specification
3. Output selection push-buttons (Use it to choose the preferred output channel). 4. Input selection push-buttons (Use it to choose the preferred input channel). 5. IR window. 6. LED indicator of input for output port 1 to 8. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Rear Panel
RJ45 inputs – please be careful when connecting RJ45 # 1 and # 2 inputs. They absolutely have to match the outputs on the switch. Output # 1 should be connected to Input # 1 and Output # 2 should be connected to Inputs # 2. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Connect And Operation
Connect the HDMI input sources (such as HD-DVD, PS3, AppleTV, DirecTV etc) into the inputs on AT- PROHD88M-SR. Connect the HDMI outputs from AT-PROHD88M-SR (such as LCD, Plasma, LED, Projector, Monitor) Power on the input source you want to show. (Keep the unused input power OFF, otherwise it may interfere with the normal display.) - Page 7 DIP#3: Atlona Switcher has a few built-in EDID modes; this mode is for resolutions up to 1080P with Stereo Au- dio. When this mode is selected the deep-color will be disabled. Deep-color will only work on new TV’s which were built after April 2009.
-
Page 8: Ir Remote Control
If you receive a “MIX FL” – please try this operation again. IR REMOTE CONTROL The AT-PROHD88M-Sr comes with 16 button IR remote control, which could be used to control the switcher when pointing at it or controlling the switcher from a remote location by pointing the remote control to the IR Eye connected to the HDMI receiver. -
Page 9: Rs232 Control
Output 2 select Input6 cir 16 Output 2 select Input7 cir 17 Output 2 select Input8 < cir 18 Output 2 select Input previous > cir 19 Output 2 select Input next www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 10 Output 6 select Input6 cir 56 Output 6 select Input7 cir 57 Output 6 select Input8 < cir 58 Output 6 select Input previous > cir 59 Output 6 select Input next www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
- Page 11 Output 8 select Input6 cir 76 Output 8 select Input7 cir 77 Output 8 select Input8 < cir 78 Output 8 select Input previous > cir 79 Output 8 select Input next www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 12: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 13: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 14: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
