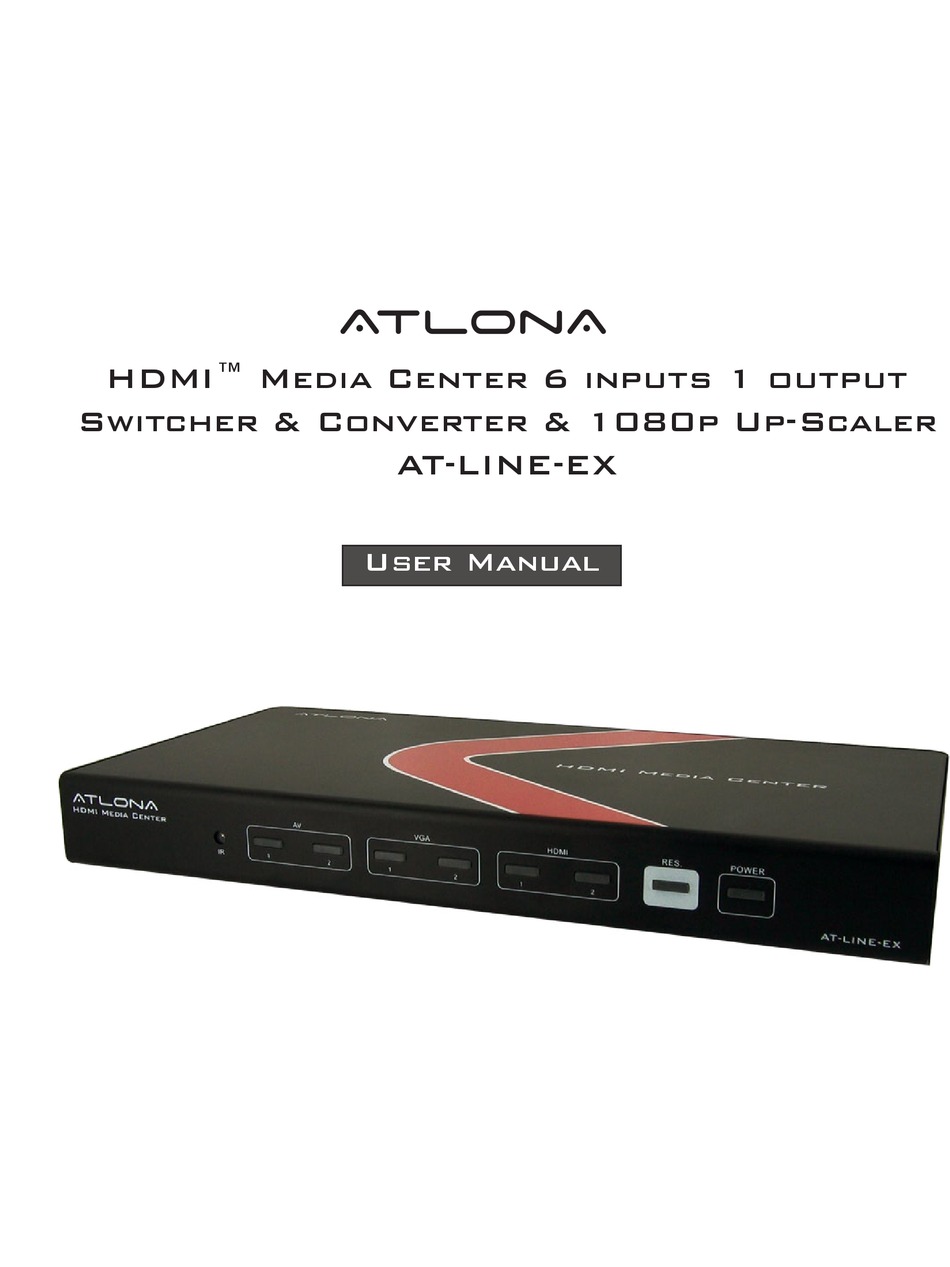

- Page 1 AtlonA HDMI™ Media Center 6 inputs 1 output Switcher & Converter & 1080p Up-Scaler AT-LINE-EX User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ............2. Features ............3. Package Contents ............4. Operation Controls and Functions ........4.1 Front Panel ............4.2 Rear Panel ............5. IR Remote Control Operation mode ........6. Connection and Installation ..........7. TROUBLE SHOOTING ............8. -
Page 3: Introduction
Introduction Congratulations on your purchase of the AT-LINE-EX HDMI Media Center. Your satisfaction is very important to us. AT-LINE-EX is the product that can offer the best integration solution for your home entertainment equipment. AT-LINE-EX is designed for HDMI™, VGA and analog sources selection. It solves the inconvenience of changing cable connection. -
Page 4: Operation Controls And Functions
4. Turn on the power of your source device that you are going to use. 5. Check the power of AT-LINE-EX. If the power LED light is not on, please press the power key to turn on the power of AT-LINE-EX. - Page 5 Operations of AT-LINE-EX Media Center Manual Operation mode • Power On: Please use the power key to turn on the AT-LINE-EX from standby mode. The LED indication light of power will be on. • Power Off: Please use the power key to turn the AT-LINE-EX into standby mode. The LED indication light of power will be off.
-
Page 6: Ir Remote Control Operation Mode
IR Remote Control Operation mode 1. Input Selection key: AV1, AV2, VGA, HDMI™ • Press “AV1” for Video 1, S-video 1, YPbPr 1 video selection. The sequence is in a circulating order. Started from Video 1. • Press “AV2” for Video 2, S-video 2, YPbPr 2 video selection. The sequence is in a circulating order. -
Page 7: Connection And Installation
LCD TV, the video signal must be de-interlaced before showing on TV screen. When up-scaling the video signal to 1080i, some of TV may not support the interlaced video format that is produced by AT-LINE-EX. If 1080i can not show on your TV, please change the resolution to 720p, 1080p etc. -
Page 8: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 9: 10. Warranty
WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
