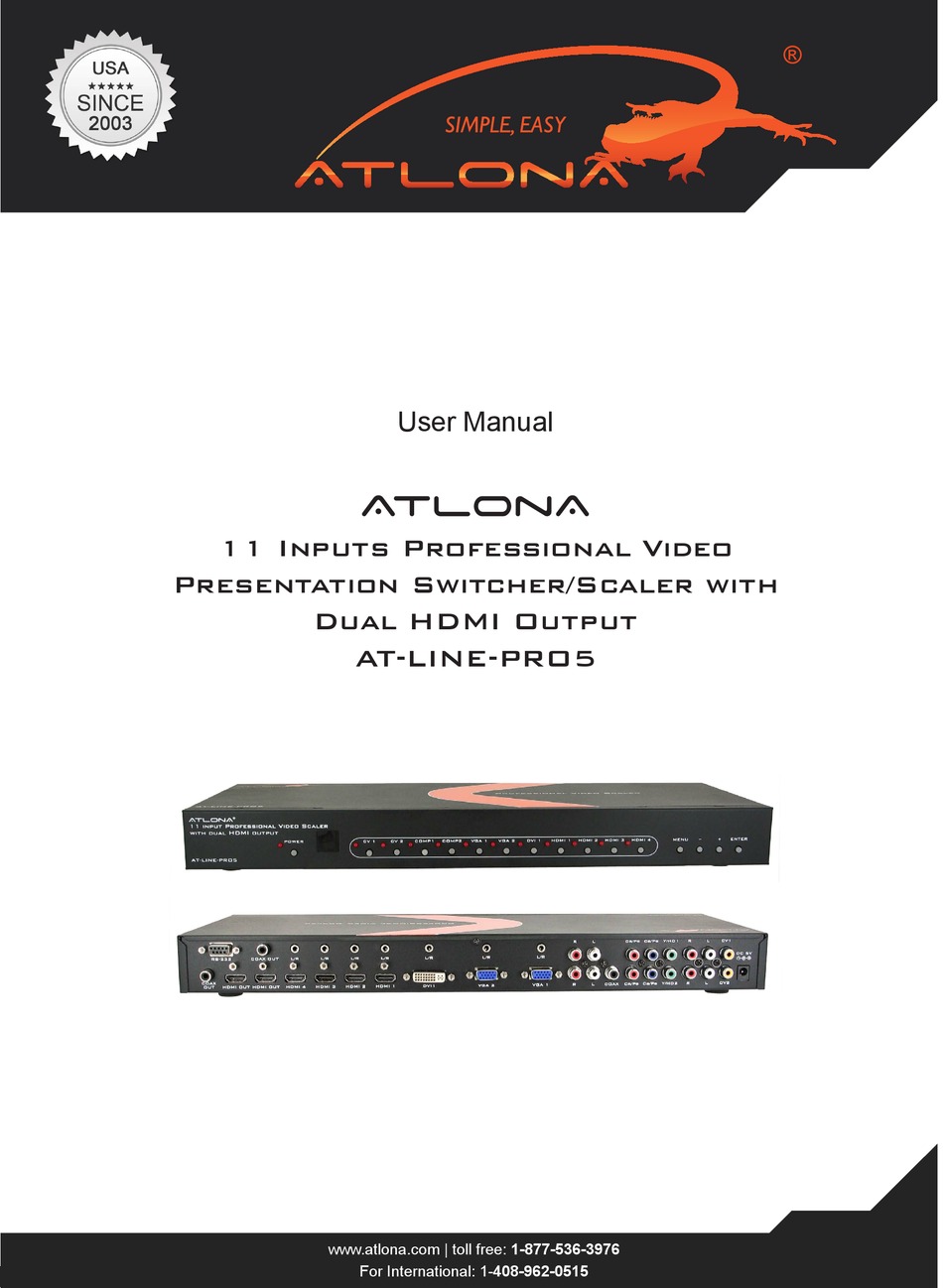

- Page 1 User Manual AtlonA 11 Inputs Professional Video Presentation Switcher/Scaler with Dual HDMI Output AT-LINE-PRO5 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
9. RS232 Protocols ..........9.1. Set Command ..........9.2. Status Command ..........9.3. Key Command ..........10. Connection and Installation ..........11. Safety Information ..........12. Warranty ..........13. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
• Image of color bar: If user is seeing a color bar, it means that there is no input signal present. The color bar will be active for 15min and after the Atlona device will go to the stand-by mode and disconnect from the display. -
Page 4: Specification
8. MENU: Press this button to bring up the On Screen Display. 9. -/+: Press -/+ buttons to adjust parameters in the On Screen Display. Once the selection is made press Enter button. 10. ENTER: Press this button after each selection. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Rear Panel
13. Output Resolution: Press to directly select output resolution. For other out put resolutions that are not available on the remote please enter On Screen Display Menu to select them. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: On-Screen-Display
OFF / 40MS / 110MS / 150 MS - SOUND ON / MUTE - EXIT Back to the 1 Tier INFORMATION SOURCE (Input interface) INPUT (Input Resolution) OUTPUT (Output Resolution) VERSION (Firmware Version) EXIT Close the OSD Menu www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 7: Rs232 Protocols
> OUTPUT WXGA WXGA (1280x800@60) OUTPUT S OUTPUT 17 > OUTPUT WSXGA WSXGA (1680x1050@60) OUTPUT S OUTPUT 18 > OUTPUT WUXGA WUXGA (1920X1200@60) OUTPUT S OUTPUT 19 > OUTPUT 1080p30 1080p@30 OUTPUT www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 8 > AUDIODELAY OFF AUDIO DELAY OFF S AUDIODELAY 1 > AUDIODELAY 40ms AUDIO DELAY 40mSec S AUDIODELAY 2 > AUDIODELAY 110ms AUDIO DELAY 110mSec S AUDIODELAY 3 > AUDIODELAY 150ms AUDIO DELAY 150mSec www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 9: Status Command
PANEL / REMOTE CONTROL KEY HDMI1 K HDMI2 > HDMI2 PANEL KEY HDMI2 K HDMI3 > HDMI3 PANEL KEY HDMI3 K HDMI4 > HDMI4 PANEL KEY HDMI4 K MENU > MENU PANEL/REMOTE CONTROL KEY POWER www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 10 K RIGHT > RIGHT REMOTE CONTROL KEY “>” K EXIT > EXIT REMOTE CONTROL KEY EXIT K AUTO > AUTO REMOTE CONTROL KEY AUTO K RESET > RESET REMOTE CONTROL KEY RESET www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 11: Connection And Installation
CONNECTION AND INSTALLATION Laptop Laptops Live Camera Blu-ray Projector HDTV www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 12: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 13: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 14: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976... - Page 15 | toll free: 1-877-536-3976 For International: 1-408-962-0515...
