STEP 8
Venting
•

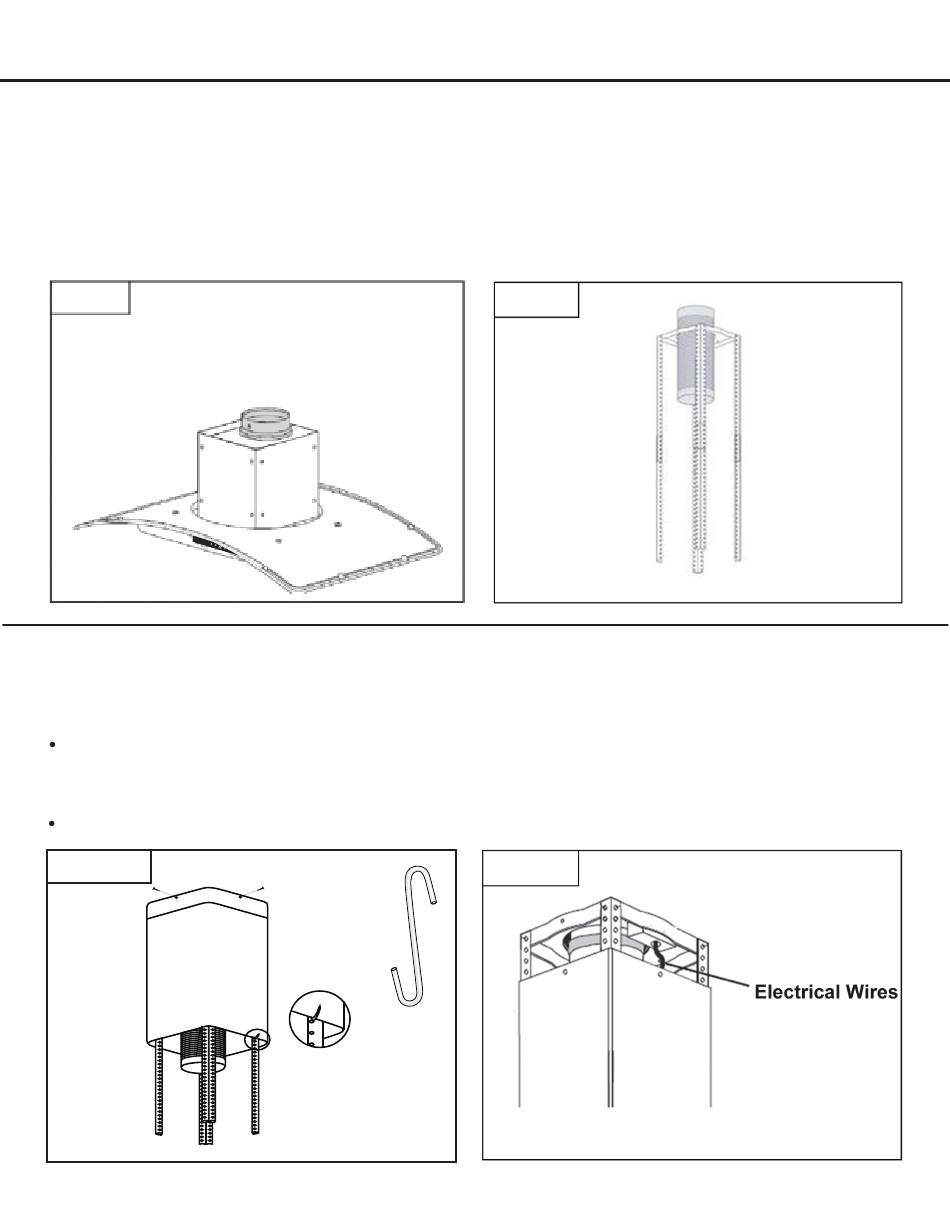

Fix the damper into the damper hole on top of the range hood motor box. (See Fig. #3)
•
Let the ducting pipe go inside through the hole from the ceiling. (See Fig. #4)
Measure the length of 6" round metal duct required from the damper / duct connector to the ductwork rough-in
•
in the ceiling. Connect the duct to the damper / duct connector and seal with duct tape.
Fig. #3
STEP 9
Electrical
• Use the supplied `S` hook to hold up the chimneys while feeding the electrical wires. (See Fig. #5).
Remove the protective coating from the inner chimney. Carefully slide the inner chimney down into the outer
chimney. Slide the chimneys over the angle brackets.
• Feed the electrical wires up through the chimneys. (See Fig. #6)
Connect the electrical wires to the wiring box on the ceiling bracket.
Fig # 5
Fig. #4
Fig # 6
