STEP 6
Measuring
Measure the distance between stove top and the bottom of the range hood. A distance of 24" to 30" is
•
recommended with a minimum of 30" for gas stove tops.
To reach 9ft ceiling make sure hood is installed at 30" from cooking surface.
•
If you require longer chimney flue to reach your ceiling please visit anconahome.com
•
STEP 7
Installing the hood mounting bracket
Determine and mark the center line on the ceiling where the range hood will be installed. Make sure there is proper
•
clearance within the ceiling or wall for exhaust vent.
The ceiling must be able to bear at least 40 kg (88 lbs.) of weight, and the thickness of the ceiling must be at least 300 mm
•
(1.8").
Drill 1*170 mm (6.7") round hole in the ceiling.
•
•
Run house electrical wires to the electrical box on the bracket. Black to Black, White to White, and Green to Green or
Bare Wires.
•
In line with the hanging board, drill 12 holes in the ceiling. (See Fig. #1)
• Use supplied screws and nuts to attach the angle iron into the hanging board. (See Fig. #2)
Calculate the total length of the angle iron required so that the overlap angle iron is no less than 100 mm (39.4") and
•
that the distance from the bottom of the range hood and the cooking surface is between 61 to 76 cm (24" to 30").
• Attach the 2 sections of the angle iron together for each corner using provided flat screws and nuts.

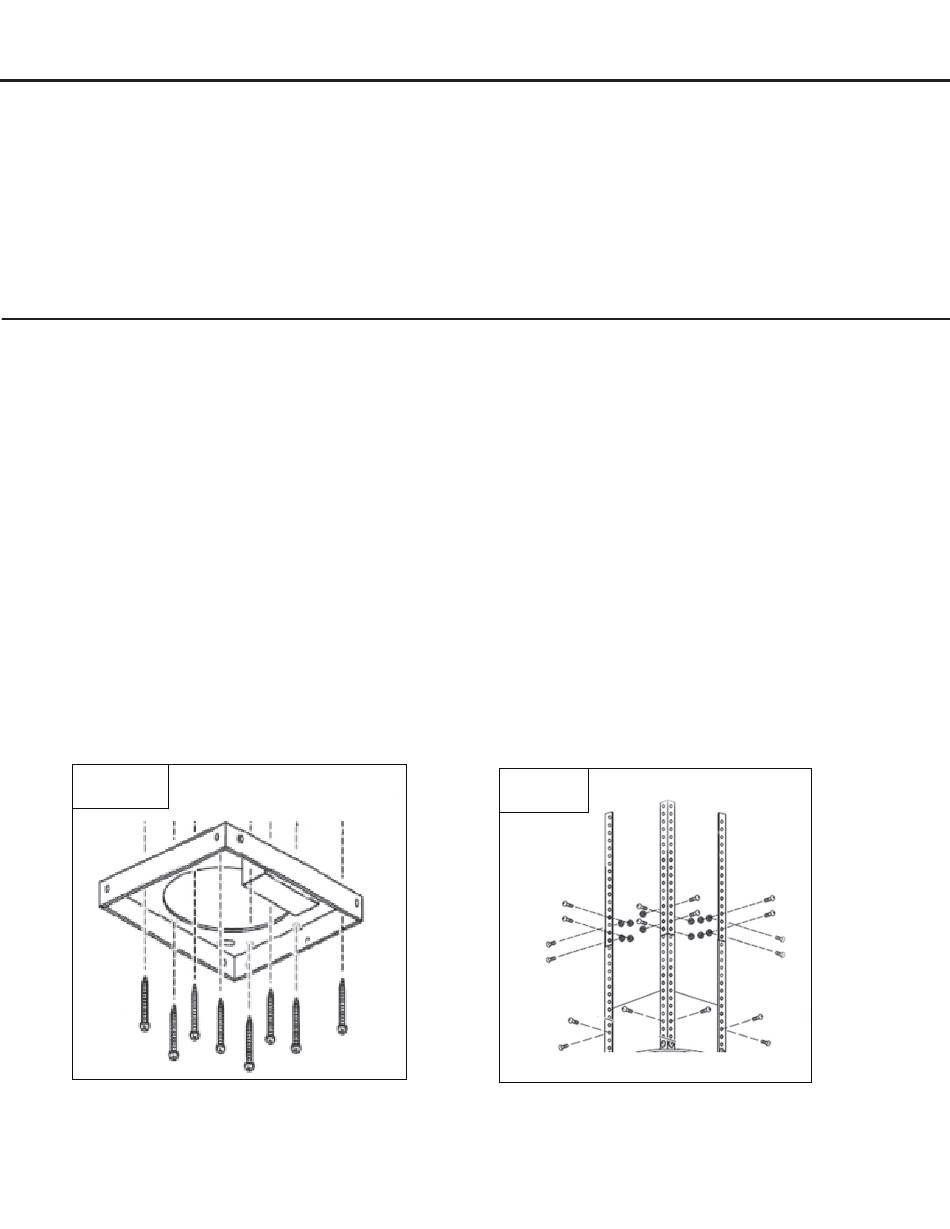

Fig. #1
Installation
Fig. #2
