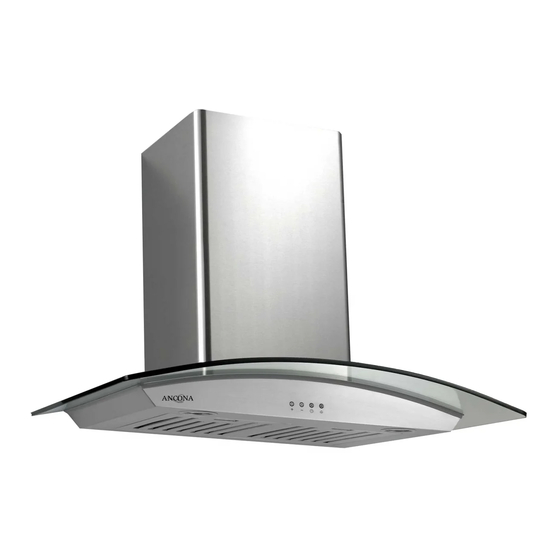

Ancona GCP530 User Instruction
30 in. and 36 in.
Hide thumbs
Also See for GCP530:
- User manual and installation instructions (16 pages) ,
- User manual and installation instructions (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Ancona GCP530
Summary of Contents for Ancona GCP530
- Page 1 MODEL GCP530 & GCP536 30 in. and 36 in. IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance. Keep these instructions for future reference.
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE The installation in this manual is intended for qualified installers, service technicians or persons ● with similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE WARNING: TO REDUCE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
-
Page 4: Parts Supplied
PARTS SUPPLIED: 2 THIN BAFFLE FILTERS... -
Page 5: Height & Clearance
VENTING REQUIREMENTS: HEIGHT & CLEARANCE: • Vent system must terminate to the outside (Roof or side wall). • DO NOT terminate the vent system in an attic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. -
Page 6: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. •... -
Page 7: Venting Methods
VENTING METHODS: • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, •... -
Page 8: Electrical Requirements
ELECTRICAL REQUIREMENTS: IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility to contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. - Page 9 PREPARATIONS: Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 13. • Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
-
Page 10: Installation
INSTALLATION: Installations (refer to Page 4 for parts): NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbars is highly recommended. For consumer safety reasons, mounting screws and anchors have not been supplied with this range l l a l l a anchors. - Page 11 INSTALLATION CONTINUE: Step 5: Installing the damper flap • Fix the damper on the top vent of hood with 4 screws. • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. •...
- Page 12 INSTALLATION CONTINUE: Step 7: Installing the decorative chimney and inner chimney bracket • Remove the protective coating from the inner chimney. Carefully slide the inner chimney down into the outer chimney. Using gloves is recommended to avoid scratching the chimney. •...
-
Page 13: Control Panel Operation
CONTROL PANEL OPERATION: Increase Decrease Timer Light Speed Speed Control Panel Layout and Buttons Configurations: Electronic Controls with Time Delay • Lights: • Press the light button to turn LED lights on and off. • Power settings: • Press the button once and the motor starts to operate at Low speed. -
Page 14: Replacing The Bulbs
REPLACING THE BULBS: Replacing the light bulbs: • ake sure the ran e hood is unplu ed or turn FF breaker. • pen the filter and find the sprin of the li ht. • ush the sprin and the li hts will slip out. •... -
Page 15: Mounting Brackets
MOUNTING BRACKETS: Upper/Inner Chimney Bracket 8 1/4” (211 mm) 11 7/8” (302 mm) Lower/Outer Chimney Bracket 11 1/4” (286 mm) 11 7/8” (302 mm) Hood Mounting Bracket Hook 9 1/16” (231 mm) 4 1/2” (115 mm) 4 1/2” (115 mm) 3 1/8”... - Page 16 MEASUREMENTS AND DIAGRAMS: This range hood can reach a 9’ ceiling if installed at 32” from the cooking surface. 10 1/2” 19” to (265 mm) 38 1/4” (480 mm to 970 mm) ” ” 7 mm Glass Depth ” (5 29 /8”...
-
Page 17: Troubleshooting
TROUBLE SHOOTING: 1) If the range hood or LED light does not • Check if the range hood has been plugged in, operate after installation: make sure that all power has been turned back ON,fused not blown and all electrical wiring are properly connected. -
Page 18: Range Hood Assembly
RANGE HOOD ASSEMBLY:... -
Page 19: Specifications
SPECIFICATIONS: Body design Stainless steel Power rating 120V / 60Hz (USA & Canada standard) cULus Certified Total input power 335W (330W+2*2.5W) Motor input power 330W Total Ampere 2.8 A Levels of speed control 3 levels Interference Protection Radio frequency interference protected Single motor Number of Motor Single chamber quiet... -
Page 20: Blower Assembly
BLOWER ASSEMBLY: Description Description Charcoal bracket Cover of rubber bracket Blower net otor Rubber bracket Blower of motor ELECTRICAL ASSEMBLY: Description Description Electrical box base Screw (ST3*6) Electrical cover Capacitor Screw (ST3*10) - Page 21 USE AND CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing.
