Moog Videolarm WM1200 Product Instructions

Specifi cation
Number
INSTRUCTIONS 5127
MODEL: Outdoor Brackets and Mounts
WM1200, CM1200, CA1200
STANDARD INSTALLATION PROCEDURE
CONTENTS INCLUDES:
(1) Main bracket body
(1) Adjustable swivel head
(1) 1/4 - 20 bolt (attached to swivel)

GENERAL INSTRUCTIONS:

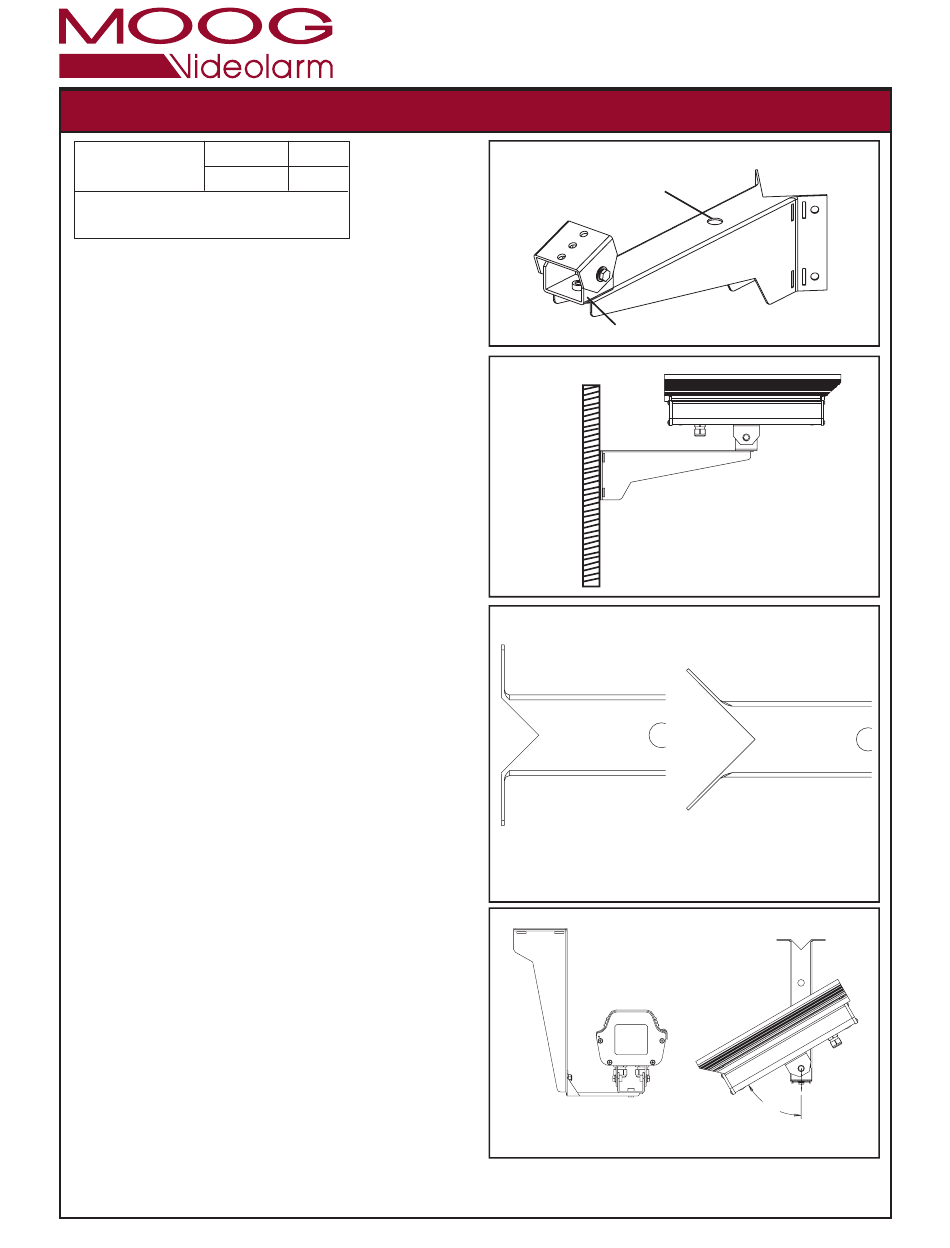

1. Carefully remove equipment from the box (Figure 1).
2. Mount the bracket assembly in the desired location
(mounting hardware not included).
3. Mount the housing to the top of the swivel head and
position to desired viewing location. Secure in
place (Figure 2).

TO POLE MOUNT:

The WM1200 and CM1200 can both be mounted on a pole. Refer to
Figure 3 for pole mounting size re quirements and limitations.
1. Position the bracket assembly to the desired height and
location on pole.
2. Attach the assembly to the pole using 3/4" mounting
straps (not provided).
3. Slide the mounting straps through the slots in the bracket
and tighten to pole.
4. Finally, attach the housing to the swivel head of the
bracket system. Check to see that both the housing and
bracket are secure.
The CA1200 is the same as the items above, plus:
Light duty "L" bracket
5/16 bolts, washers and lockwashers
1. Assemble the camera swivel (2 pieces) using (2) 5/16 bolts,
washers.
2. Attach light duty "L" bracket to the main bracket using
(2) 5/16 bolts, washers and lockwashers.
3. Secure the swivel to the "L" bracket.
2525 Park Central Blvd. • Decatur, Ga 30035 • (770) 987-7550 • 800-554-1124 U.S. & Canada • Fax 800-826-0366 • www.videolarm.com
Catalog
Section
1B
Revision Date: May 12, 2003
PRODUCT INSTRUCTIONS
Cable Entry/Exit
Swivel Head
Figure 1
Mounting surface
Figure 2
WM1200
FITS 7" DIA. OR
SMALLER POLE
Figure 3
CM1200
FITS 7" DIA. OR
LARGER POLE
60˚
