Summary of Contents for SGS SC8H

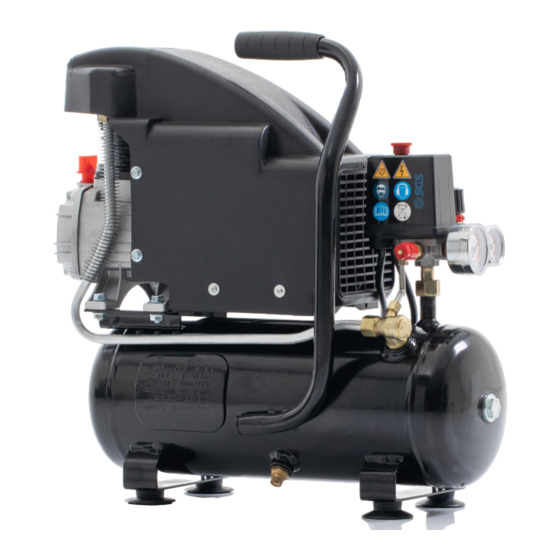

- Page 1 SC8H AIR COMPRESSOR OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Main Components
12. Shroud compressed air. This compressor contains surfaces which may reach a high temperature during operation. Model SC8H Never operate with the motor housing re- moved. Power 1 kW / 1.1 HP 230 V @ 50 Hz... -
Page 3: Safety Precautions
KEEP THE WORK AREA CLEAN: Cluttered areas mean accidents, so clear the work area of all unnecessary tools, debris and furniture. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5... - Page 4 Contact your local Council for disposal assistance. DO NOT WELD TO THE PRESSURE VESSEL: Do not weld or modify the pressure vessel in any manner. 4. Fit the breather plug WWW.SGS-ENGINEERING.COM PAGE 6 PAGE 7...
-
Page 5: Before Use
The com- 4. If not, remove the breather plug pressor will start again when and fill with compressor oil (our the tank pressure drops. part code SO2068) WWW.SGS-ENGINEERING.COM PAGE 8 PAGE 9... -
Page 6: Switching Off
2. Operate the air tool to depres- surise the air hose. 3. Disconnect the tool from the hose. 4. Open the drain cock to remove any condensation from the compressor. WWW.SGS-ENGINEERING.COM PAGE 10 PAGE 11... -
Page 7: Pressure Adjustment
If you start the compressor and the overload cutout operates again, stop the compressor and disconnect from the power supply and have your compressor examined by a qualified service agent. WWW.SGS-ENGINEERING.COM PAGE 12 PAGE 13... -
Page 8: Maintenance
Check the oil level after every 20 working hours, and replenish if necessary. 2. Clean the crankcase and renew the oil, clean air filter, and check safety valve and pressure gauge after every 120 working hours. WWW.SGS-ENGINEERING.COM PAGE 14 PAGE 15... -
Page 9: Replacement Parts Diagram
Bearing 6003-RS 904962 Pressure guage 904995 Rotor 904963 Connected pipe 904996 Stator 904964 Power cord 904997 Bearing 6202-RS 904965 Safety valve 904998 Motor bracket 904966 Pressure switch 904999 Tooth washer 4 904967 Thermal protectors 905000 WWW.SGS-ENGINEERING.COM PAGE 16 PAGE 17... -
Page 10: Troubleshooting
Piston ring and cylinder worn or damaged Excessive oil consump- Oil level too high Keep the level within set range tion Breather pipe choked up Check and clean Piston ring and cylinder Repair or replace worn or damaged WWW.SGS-ENGINEERING.COM PAGE 18 PAGE 19... - Page 11 SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd Air Compressor TYPE OF EQUIPMENT: SC8H PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
