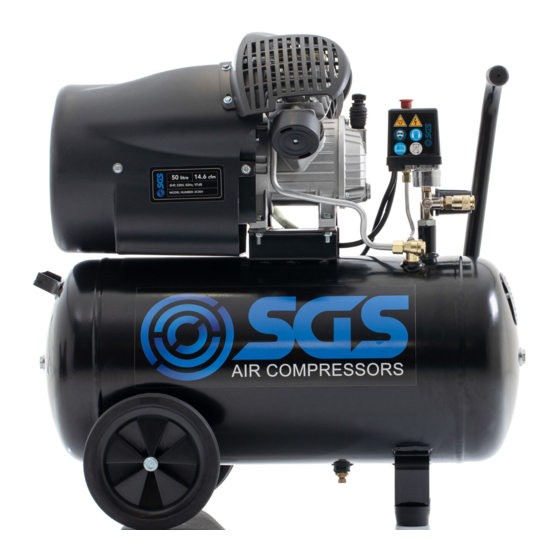

- Page 1 SC50V AIR COMPRESSOR OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Main Components
11. Fan cover This compressor contains surfaces which may reach a high temperature during operation. Never operate with the motor housing re- moved. SC50V Model 2.2Kw/3HP Power Air and condensation water can burst from the Voltage 230V/ 50Hz compressor when the drain plug is removed. -
Page 3: Safety Precautions
Always tie long hair back, and wear suitable clothing. do not operate the air compressor when you are tired. The air com- pressor should not be used if you are under the influence of alcohol, drugs or any medication that makes you drowsy. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5... - Page 4 MAINTAIN THE AIR COMPRESSOR WITH CARE: If the air com- pressor is damaged in any way, have it repaired by a qualified engineer. DO NOT USE EXTENSION LEADS: Using extension leads can cause your compressor motor to burn out. Only use extension hoses. WWW.SGS-ENGINEERING.COM PAGE 6 PAGE 7...
-
Page 5: Preparation For Starting
5. Keep the oil level in the red circle of Make sure all loosened the oil glass sight window. You can pur- parts are tightened before chase compressor oil from our website at: starting. www.sgs-engineering.com WWW.SGS-ENGINEERING.COM PAGE 8 PAGE 9... -
Page 6: Operation And Adjustment
1. The pressure gauge on the RIGHT shows the current pressure in the reservoir tank. 2. The pressure gauge on the LEFT shows the ‘user set’ outlet pressure. This can be adjusted using the regulator. WWW.SGS-ENGINEERING.COM PAGE 10 PAGE 11... - Page 7 3. When the running compressor needs to be stopped set the pressure switch in the off position. 4. Always vent the compressor after each use by turning the regulator knob fully anticlockwise. WWW.SGS-ENGINEERING.COM PAGE 12 PAGE 13...
-
Page 8: Maintenance
4. Make sure there is no rust on the air tank and the air tank is not damaged. 5. Have the thickness of the air tank checked by a certified repair centre every year to ensure the tank thickness is not less than 2.1mm. WWW.SGS-ENGINEERING.COM PAGE 14 PAGE 15... -
Page 9: Troubleshooting
Leave this compressor for a good while until you reset it. If the compressor turns off again on re-set you should not keep running it as it may be damaged and the system may be unsafe. WWW.SGS-ENGINEERING.COM PAGE 16 PAGE 17... -
Page 10: Replacement Parts Diagram
Part Part No Part Part No REPLACEMENT PARTS DIAGRAM Bolt M6x55 905225 Stator 905319 Cylinder head 900039 Rotor 905320 Cylinder head gasket 905307 Brearing 6202 904965 Valve plate 905308 Wave washer D35 905321 Valve plate gasket 905309 Switch scaleboard 905322 Valve clack 901578 Switch... -
Page 11: Ec Declaration Of Conformity
SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd Air Compressor TYPE OF EQUIPMENT: SC50V / SC100V PART NUMBER:...
