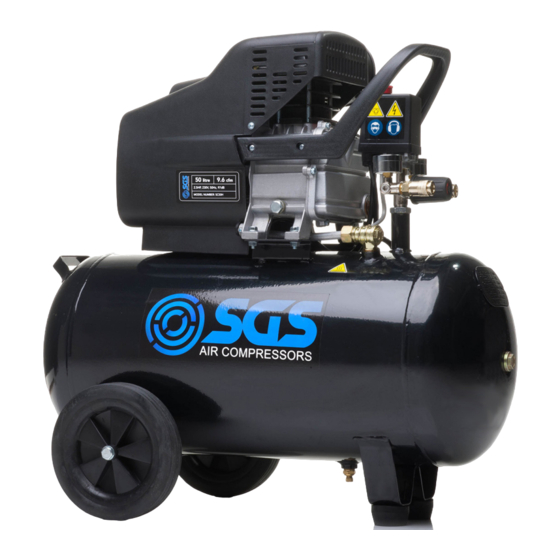

SC50H
AIR COMPRESSOR
OWNER'S MANUAL
FOR YOUR SAFETY
PLEASE READ THESE INSTRUCTIONS CAREFULLY
AND RETAIN THEM FOR FUTURE USE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC50H and is the answer not in the manual?

Questions and answers

Summary of Contents for SGS SC50H

  • Page 1 SC50H AIR COMPRESSOR OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
  • Page 2: Specification

    SPECIFICATION MAIN COMPONENTS ITEM DATA Model SC50H 1. Main compressor Power 1.5 kW / 2.5 HP 2. Pressure switch Voltage 230 V 3. Outlet Valve Frequency 50 Hz 4. Regulating Valve Motor Poles 5. Pressure gauge Rated Speed 2850 rpm 6.
  • Page 3: Warning Symbols

    DRESS PROPERLY: Loose clothing or jewellery may be caught in moving when using this compressor. parts. Always tie long hair back, and wear suitable clothing. This compressor produces a high sound level during operation. Ear protection should be worn. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5...
  • Page 4 DO NOT WELD TO THE PRESSURE VESSEL Do not weld or modify the pressure vessel in any manner. DISPOSAL INFORMATION The air compressor should be disposed of in a safe an environmentally friendly manner. Contact your local Council for disposal assistance. WWW.SGS-ENGINEERING.COM PAGE 6 PAGE 7...
  • Page 5: Before Use

    Remove the travel bung and fit the oil breather pipe. 3. If not, remove the breather plug and fill with compressor oil (our part code SO2068) WWW.SGS-ENGINEERING.COM PAGE 8 PAGE 9...
  • Page 6: Operation

    3. Set the regulator to the cor- rect pressure for the air tool (check in the air tool manual). The user-set output pressure is shown on the left gauge. The right hand gauge shows the tank pressure. WWW.SGS-ENGINEERING.COM PAGE 10 PAGE 11...
  • Page 7: Pressure Adjustment

    If you start the compressor and the overload cutout operates again, stop the compressor and disconnect from the power supply and have your compressor examined by a qualified service agent. WWW.SGS-ENGINEERING.COM PAGE 12 PAGE 13...
  • Page 8: Troubleshooting

    Repair or replace or damaged Excessive oil consump- Oil level too high Keep the level within set tion Breather pipe choked up range Piston ring and cylinder worn Check and clean or damaged Repair or replace WWW.SGS-ENGINEERING.COM PAGE 14 PAGE 15...
  • Page 9: Parts List

    Check the oil level after every 20 working hours, and replenish if Non-Return Valve 901995 Nut M8 900081 necessary. Pressure switch 905306 Piston pin 900666 Pressure gauge Fan filter 900122 900076 Outlet valve Handhold 900091 900117 WWW.SGS-ENGINEERING.COM PAGE 16 PAGE 17...
  • Page 10: Maintenance

    SGS Engineering (UK) Ltd MAINTENANCE 1 West Side Park Raynesway Derby, DE21 7AZ CLEAN THE AIR FILTERS (MONTHLY) The air filters must be examined monthly and EC Declaration of Conformity more often in dusty conditions: 1. Unscrew the filters from the compressor.
