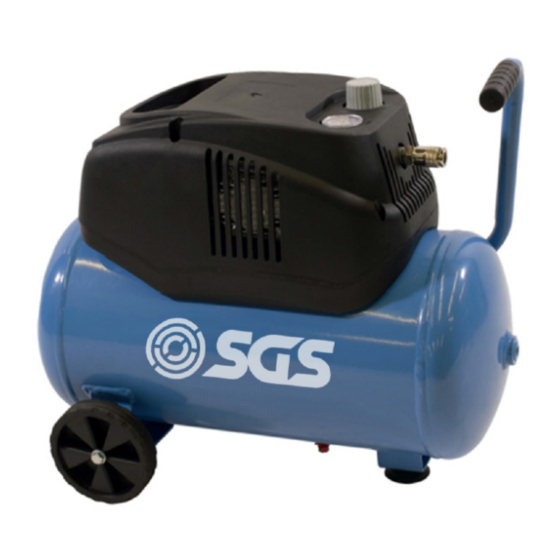

- Page 1 SC24M AIR COMPRESSOR OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Main Components
11. Drainage screw for power source, or when the tank is filled with condensation compressed air. This compressor contains surfaces which may reach a high temperature during operation. SC24M Model Never operate with the motor housing re- 1.2kW / 1.6HP Power moved. -
Page 3: Safety Precautions
KEEP THE WORK AREA CLEAN: Cluttered areas mean accidents, so clear the work area of all unnecessary tools, debris and furniture. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5... - Page 4 DISPOSAL INFORMATION: The air compressor should be disposed of in a safe an environmentally friendly manner. Contact your local Council for disposal assistance. DO NOT WELD TO THE PRESSURE VESSEL: Do not weld or modify the pressure vessel in any manner. WWW.SGS-ENGINEERING.COM PAGE 6 PAGE 7...
-
Page 5: Before Use
2. Turn the compressor on by lifting the on/off button. The compressor 1. Examine the machine for signs of transit damage. If damaged, call SGS will operate until the tank is fully pressurised before switching off. The Customer Service immediately. -
Page 6: Troubleshooting
(2) Breath pipe chocked up (2) Check and clean (3) Piston ring and cylinder worn or (3) Repair or replace damaged WWW.SGS-ENGINEERING.COM PAGE 10 PAGE 11... -
Page 7: Maintenance
3. Open drain cock under the tank toexhaust condensate after every 60 working hours. 4. Clean crankcase and renew the oil, clean air filter, and check safety valve and pressure gauge after every 120 working hours. WWW.SGS-ENGINEERING.COM PAGE 12 PAGE 13... -
Page 8: Replacement Parts Diagram
Part Qty Part No No Part Qty Part No REPLACEMENT PARTS DIAGRAM 906229 24 Motor group 906252 Rubber Foot 906230 25 Air filter 906253 Bolt 906231 26 Screw 906254 Drain cock 906232 27 On/Off Switch 906255 Tank 906233 28 Upper cover 906256 Bolt 906234 29... - Page 9 SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd Air Compressor TYPE OF EQUIPMENT: SC24M PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
