Summary of Contents for SGS SC6C
- Page 1 SC6C AIR COMPRESSOR OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-

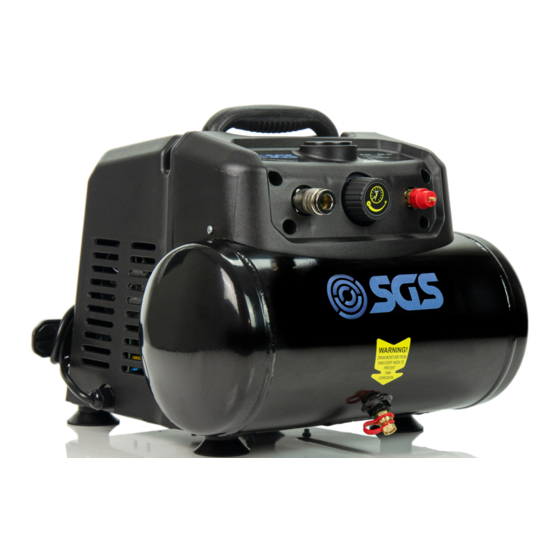

Page 2: Main Components
2. Carry handle 3. Air Outlet Coupler 4. Pressure Adjustment Dial 5. Drain Valve 6. Safety Release Valve 7. On/Off Switch Model SC6C 1.2 Kw / 1.5 HP Power Voltage 230 V @ 50 Hz Air displacement 185L/min 2850 rpm... -
Page 3: Warning Symbols
WARNING SYMBOLS READ THIS INSTRUCTION MANUAL CARE- FULLY BEFORE OPERATING OR ADJUSTING THE COMPRESSOR. Risk of electric shock. The compressor must be disconnected from the mains supply before maintenance or removing any covers. Do not use in a damp environment. Risk of accidental start-up. -
Page 4: Safety Precautions
KEEP THE WORK AREA CLEAN: Cluttered areas mean accidents, so clear the work area of all unnecessary tools, debris and furniture. WWW.SGS-ENGINEERING.COM PAGE 4... - Page 5 SAFETY PRECAUTIONS DO NOT TOUCH HOT SURFACES: During operation, the motor, con- nections, compressor body, cylinder head and tubes may get hot, do not touch. DO NOT DIRECT AN AIR STREAM AT THE BODY: Do not direct the air stream at people or animals, as injury may result. Compressed air can cause soft tissue damage and propel dirt and other particles at high speed.
- Page 6 DISPOSAL INFORMATION: The air compressor should be disposed of in a safe an environmentally friendly manner. Contact your local Council for disposal assistance. DO NOT WELD TO THE PRESSURE VESSEL: Do not weld or modify the pressure vessel in any manner. WWW.SGS-ENGINEERING.COM PAGE 6...
-
Page 7: Operation
OPERATION Using the Air Compressor Once the air compressor is connected to the mains supply use as follows: a) Push the switch to the on position on the back of the compressor. b) Check that the motor/pump automatically stops when the pressure inside the air receiver reaches approximately (8BAR) (check gauge). - Page 8 4. Never adjust the safety valve carelessly. 5. Never use the compressor where voltage is too low or too high. 6. Never disconnect the plug to stop the compressor, set the switch knob to the off position instead. WWW.SGS-ENGINEERING.COM PAGE 8...
-
Page 9: Maintenance
MAINTENANCE CLEAN THE AIR FILTERS (MONTHLY) To clean a lightly soiled air filter, use soapy water and leave to dry thoroughly. CLEANING 1. Open drain cock under the tank to exhaust condensate after every use. 2. Clean the crankcase, clean air filter, and check safety valve and pressure gauge after every 120 working hours. -
Page 10: Replacement Parts Diagram
REPLACEMENT PARTS DIAGRAM WWW.SGS-ENGINEERING.COM PAGE 10... -
Page 11: Parts List
PARTS LIST PAGE 11... - Page 12 Washer 905413 Cable tie 905439 1-21 Belt 905465 Bolt 905414 Bushing 905440 1-22 Bearing 905466 Cushion 905415 Screw 905441 1-23 Washer 905467 Air filter 905416 905442 1-24 Gasket 905468 Elbow 905417 Washer 905443 Gasket 905418 Pipe 905444 WWW.SGS-ENGINEERING.COM PAGE 12...
-
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE ACTION Motor unable to run, Fault in line or insufficient Check the line running slow or getting voltage Replace the wire Power wire too thin or long Repair or replace Fault in pressure switch Repair or replace Fault in motor Check and repair Sticking of main compres-... - Page 14 SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd Air Compressor TYPE OF EQUIPMENT: SC6C PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
