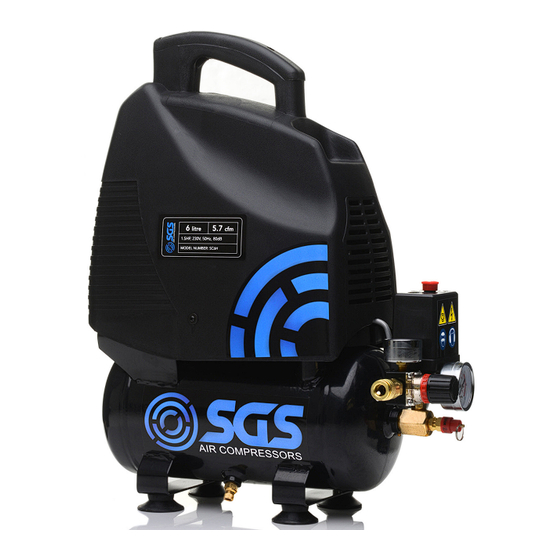

- Page 1 SC6H OIL-LESS AIR COMPRESSOR OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Main Components
This compressor contains surfaces which may reach a high temperature during operation. Never operate with the motor housing re- Model SC6H moved. Power 1.1 kW / 1.5 HP Air and condensation water can burst from the Voltage 230 V @ 50 Hz compressor when the drain plug is removed. -
Page 3: Safety Precautions
The air moving parts. Always tie long hair back, and wear suitable clothing. compressor should not be used if you are under the influence of alcohol, drugs or any medication that makes you drowsy. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5... - Page 4 MAINTAIN THE AIR COMPRESSOR WITH CARE: If the air com- pressor is damaged in any way, have it repaired by a qualified engineer. DO NOT USE EXTENSION LEADS: Using extension leads can cause your compressor motor to burn out. Only use extension hoses. WWW.SGS-ENGINEERING.COM PAGE 6 PAGE 7...
-
Page 5: Preparation For Starting
BEFORE USE 3. Pull up the red power switch and run compressor unit for 1. Ensure the power is OFF 30 minutes to break in the by pushing in the power pump parts. switch. WWW.SGS-ENGINEERING.COM PAGE 8 PAGE 9... -
Page 6: Operation And Adjustment
2. As soon as the motor is switched off the compressed air in the Euro type quick release cou- discharge pipe should be released through the drain-cock. This plings on the compressor. is a necessary condition before restarting or the motor will be damaged. WWW.SGS-ENGINEERING.COM PAGE 10 PAGE 11... - Page 7 5 minutes before pressing the red RESET button underneath the air filter and try to start the compres- sor again. 4. When the compressor needs to be stopped, set the power switch to the ‘OFF’ position. WWW.SGS-ENGINEERING.COM PAGE 12 PAGE 13...
-
Page 8: Maintenance
If damaged or badly contaminated, it must be re- placed. 8. Clean the fins of the compressor cylinder and the cylinder head to receiver pipe. A clean compressor will work more efficiently. 9. LUBRICATION This is an oilless type compressor requiring no lubrication. WWW.SGS-ENGINEERING.COM PAGE 14 PAGE 15... -
Page 9: Troubleshooting
Leave this compressor for a good while until you reset it. If the compressorturns off again on re-set you should not keep running it as it may be damaged and the system may be unsafe. WWW.SGS-ENGINEERING.COM PAGE 16 PAGE 17... -
Page 10: Replacement Parts Diagram
Washer 34 903828 Power Cord 903844 Motor Bracket 903829 Pressure Gauge 900131 Bolt M5x105 903830 Pressure Switch 900136 M5 Spring Washer 903831 Release Pipe 900126 Screw M4x10 903832 Checking Valve 900061 M4 Spring Washer 903818 WWW.SGS-ENGINEERING.COM PAGE 18 PAGE 19... -
Page 11: Ec Declaration Of Conformity
SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd Air Compressor TYPE OF EQUIPMENT: SC6H PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
