What's in the box?
The package includes the following items:

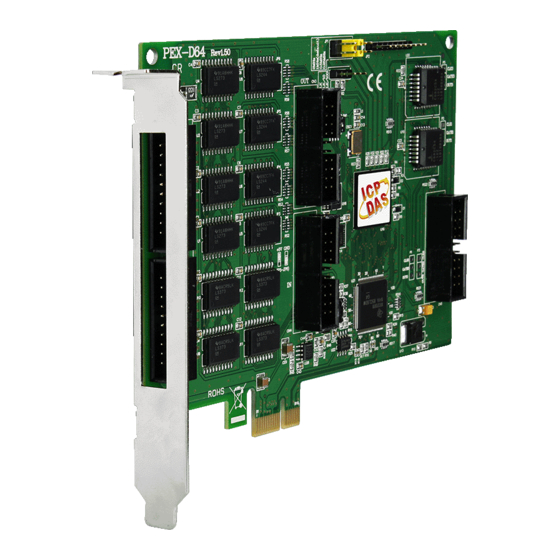

PIO-D64U/PEX-D64 x1
Related Information
For more detailed information related to the user manual and
software for UniDAQ Driver & SDK:
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/
For more detailed information related to the hardware settings for
PIO-D64 Series Card:
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/pio-dio/manual/
CA-2002 Product Page (optional):
http://www.icpdas.com/products/Accessories/cable/cable_selection.htm
Technical support:
PIO-D64U/PEX-D64
(This Document)
service@icpdas.com

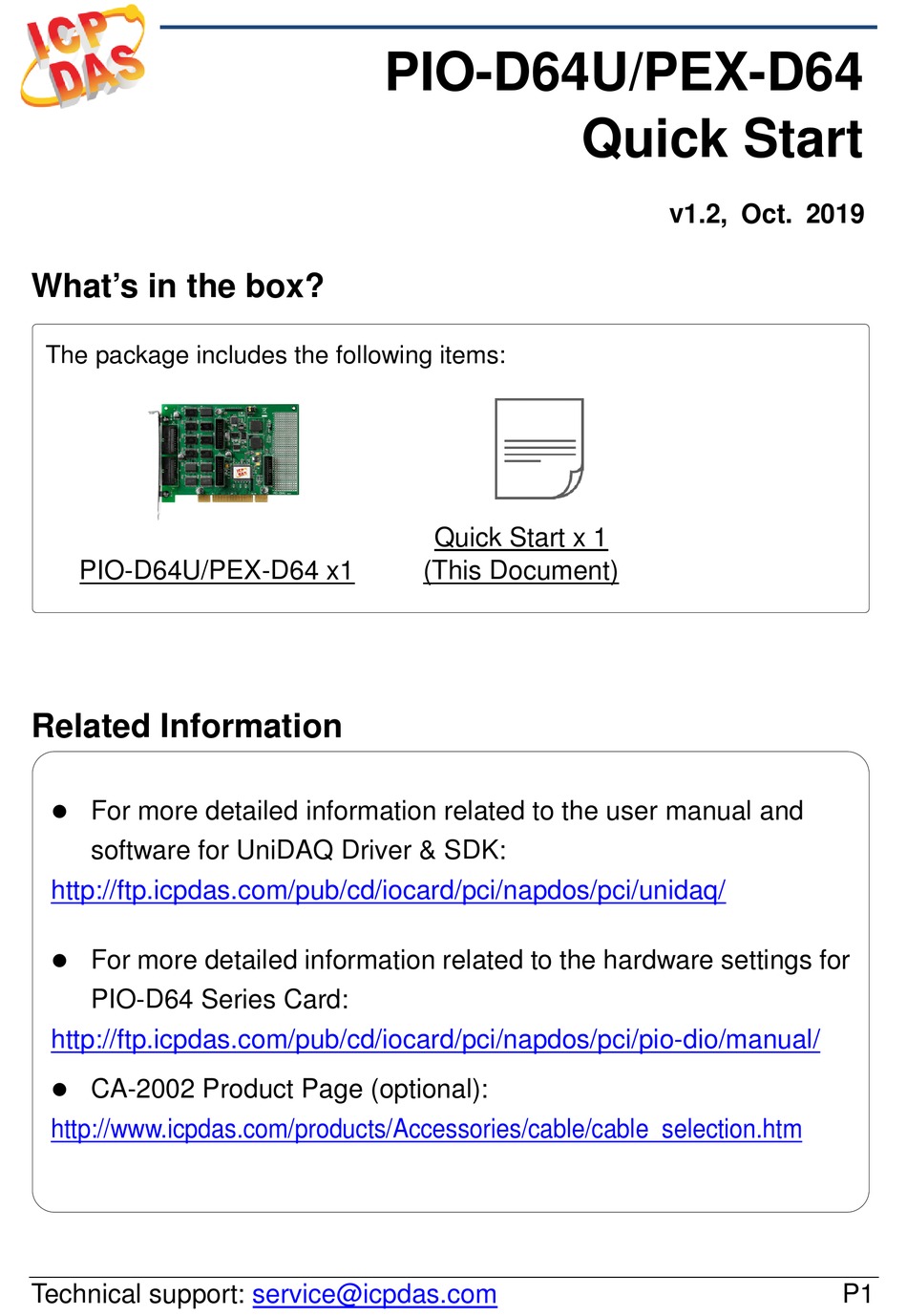

Quick Start
Quick Start x 1
v1.2, Oct. 2019
P1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA PEX-D64
Summary of Contents for ICP DAS USA PEX-D64
- Page 1 Quick Start v1.2, Oct. 2019 What’s in the box? The package includes the following items: Quick Start x 1 PIO-D64U/PEX-D64 x1 (This Document) Related Information For more detailed information related to the user manual and software for UniDAQ Driver & SDK: http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/...
- Page 2 Installing Windows Driver 1) Download or locate the Windows driver. The UniDAQ driver supports 32-/64-bit Windows XP/2003/2008/7/8/10. It is recommended that new users install this driver, which can be found in the http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/dll/driver/ PIO-DIO Series Classic Driver supports Windows 98/NT/2K and 32-bit Windows XP/2003/2008/7.
- Page 3 Installing Hardware on PC 1) Power off the Computer. 2) Remove all covers from the Computer. 3) Select an unused PCI /PCI Express slot. 4) Carefully insert the Card into PCI/PCI Express slot. 5) Replace the Computer Covers. 6) Power on the Computer. 7) The operating system will automatically detect the new hardware and install the necessary drivers after reboot the PC.
- Page 4 Pin Assignments NOTES: 1. CLKn: External clock source for Counter n 2. GATEn: External gate control signal for Counter n 3. OUTn: Output of Timer/Counter n 4. All signals are TTL compatible Technical support: service@icpdas.com...
- Page 5 Testing Board Prepare for device CA-2002 (optional) cable 1) Connect the CON1 to CON2 on board using the CA-2002 cable. CA-2002 Cable 2) Launch the UniDAQ Utility software. If the UniDAQ Utility was installed in the default folder, it will be located at “C:\ICPDAS\UniDAQ\Driver”.
- Page 6 3) Confirm that the PIO-D64 Series Card has been successfully installed in the Host system. NOTE: The device numbers start from 0. 4) Click the “TEST” button to start the test. PIO-D64 5) Check the results of the Digital Input and Digital Output functions test.
- Page 7 Click the “Digital Input” tab. Select “Port0” from the “Port Number” drop-down options. The DI indicators will turn black when the corresponding DO channels 0, 2, 4 and 6 are ON. Technical support: service@icpdas.com...
