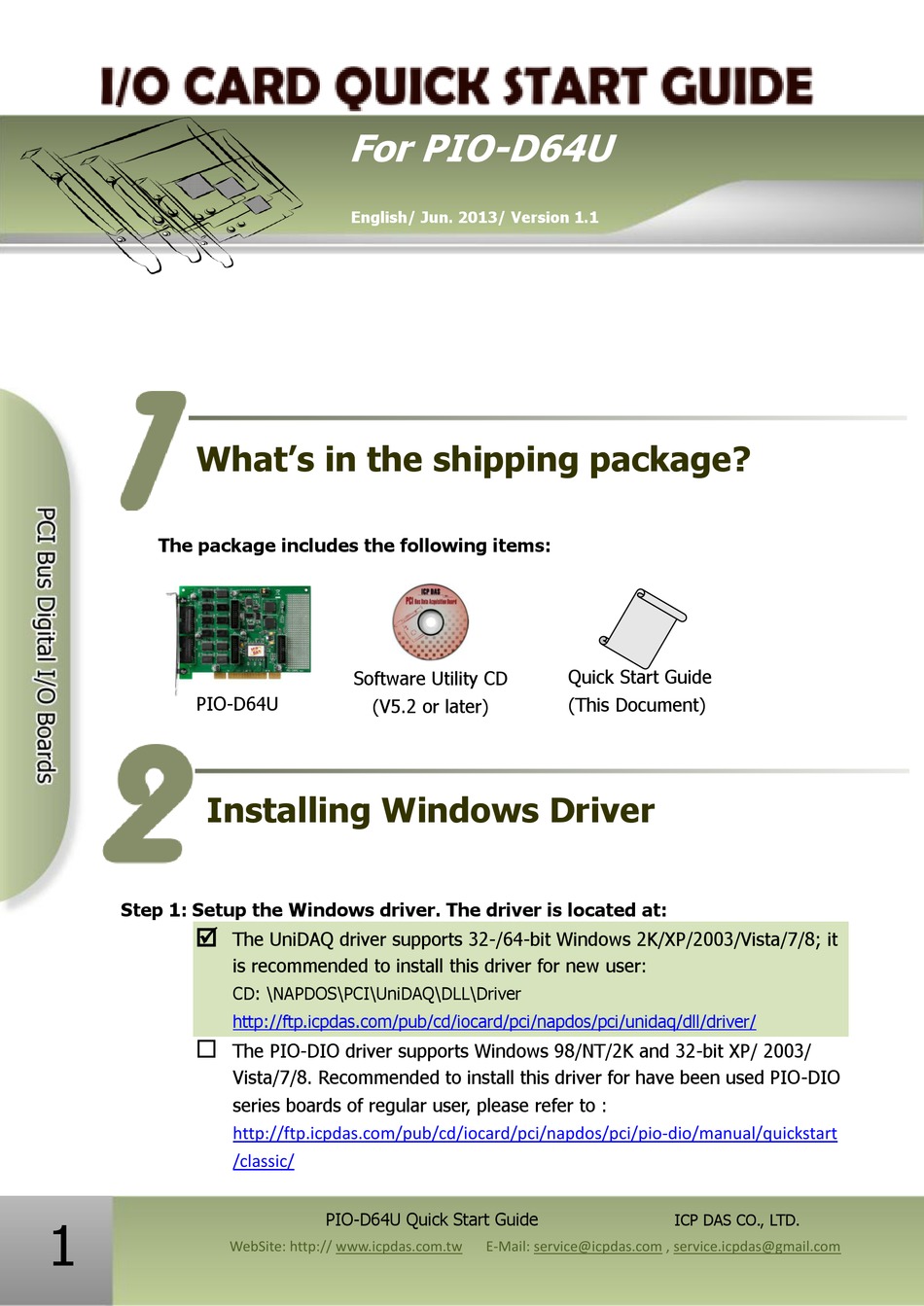

ICP DAS USA PIO-D64U Quick Start Manual

Hide thumbs Also See for PIO-D64U:

Advertisement

Table of Contents

What's in the shipping package?
The package includes the following items:
PIO-D64U

Installing Windows Driver

Step 1: Setup the Windows driver. The driver is located at:
1
For PIO-D64U
English/ Jun. 2013/ Version 1.1
Software Utility CD
(V5.2 or later)
The UniDAQ driver supports 32-/64-bit Windows 2K/XP/2003/Vista/7/8; it
is recommended to install this driver for new user:
CD: \NAPDOS\PCI\UniDAQ\DLL\Driver
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/dll/driver/
The PIO-DIO driver supports Windows 98/NT/2K and 32-bit XP/ 2003/
Vista/7/8. Recommended to install this driver for have been used PIO-DIO
series boards of regular user, please refer to :
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/pio-dio/manual/quickstart
/classic/
PIO-D64U Quick Start Guide
WebSite: http:// www.icpdas.com.tw
Quick Start Guide
(This Document)
E-Mail: service@icpdas.com , service.icpdas@gmail.com
ICP DAS CO., LTD.
