What's in the shipping package?
The package includes the following items:
Installing Windows Driver
Step 1: Setup the Windows driver. The driver is located at:

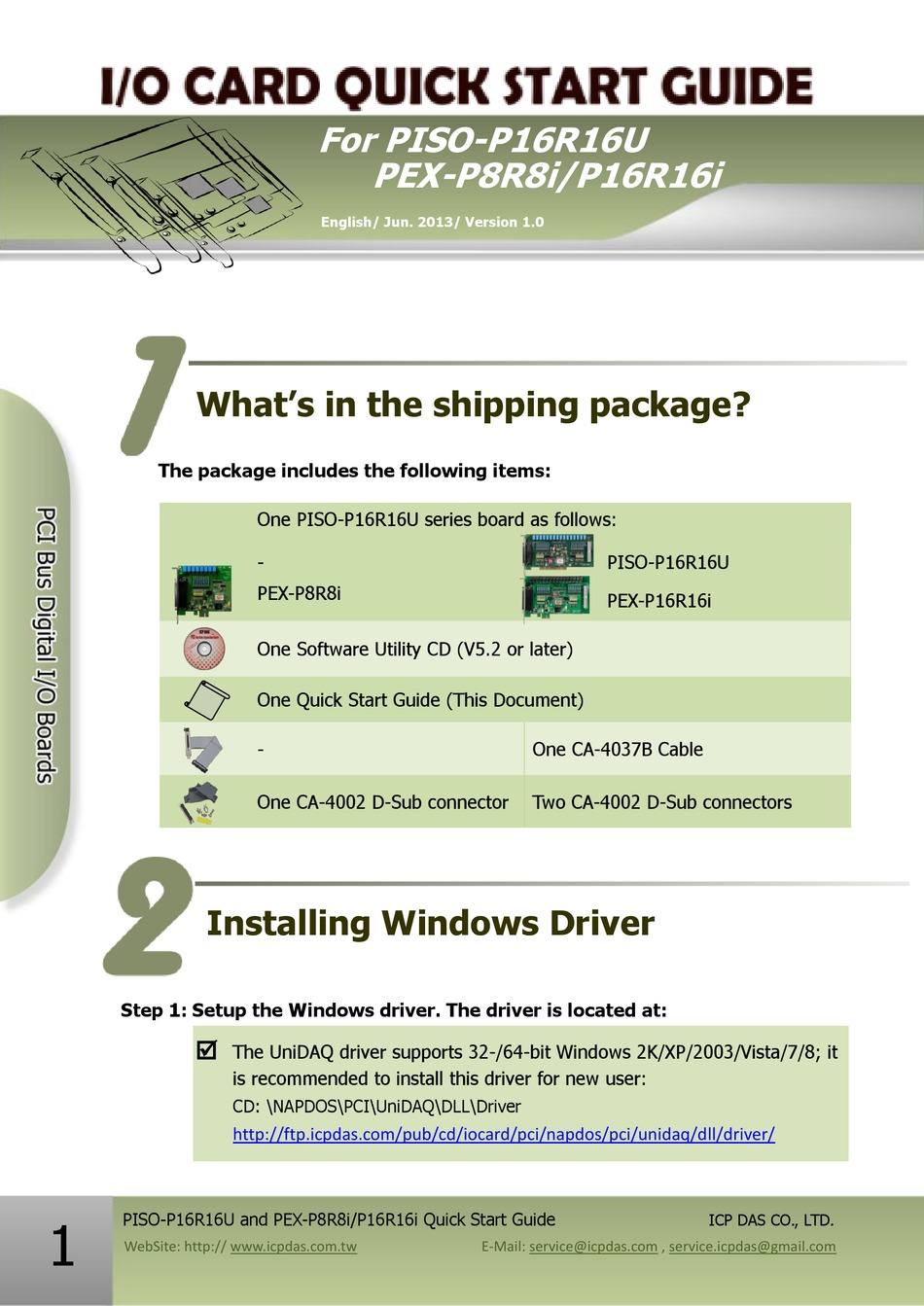

PISO-P16R16U and PEX-P8R8i/P16R16i Quick Start Guide
1
WebSite: http:// www.icpdas.com.tw
For PISO-P16R16U
PEX-P8R8i/P16R16i
English/ Jun. 2013/ Version 1.0

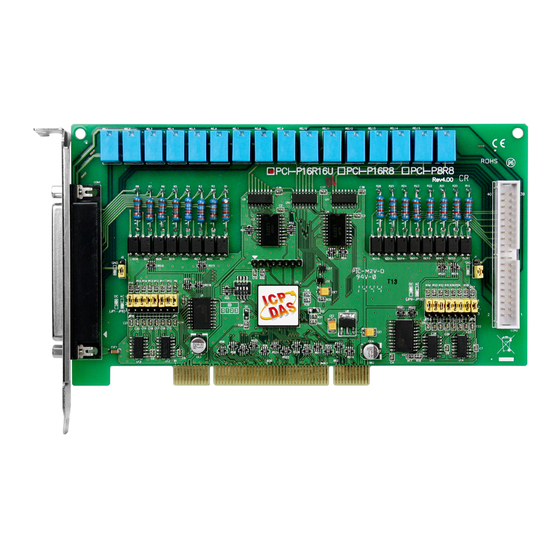

One PISO-P16R16U series board as follows:
-
PEX-P8R8i
One Software Utility CD (V5.2 or later)
One Quick Start Guide (This Document)
-
One CA-4002 D-Sub connector
The UniDAQ driver supports 32-/64-bit Windows 2K/XP/2003/Vista/7/8; it
is recommended to install this driver for new user:
CD: \NAPDOS\PCI\UniDAQ\DLL\Driver
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/dll/driver/
PISO-P16R16U
PEX-P16R16i
One CA-4037B Cable
Two CA-4002 D-Sub connectors
E-Mail: service@icpdas.com , service.icpdas@gmail.com
ICP DAS CO., LTD.
Advertisement
Related Manuals for ICP DAS USA PISO-P16R16U
Summary of Contents for ICP DAS USA PISO-P16R16U
- Page 1 For PISO-P16R16U PEX-P8R8i/P16R16i English/ Jun. 2013/ Version 1.0 What’s in the shipping package? The package includes the following items: One PISO-P16R16U series board as follows: PISO-P16R16U PEX-P8R8i PEX-P16R16i One Software Utility CD (V5.2 or later) One Quick Start Guide (This Document)
-
Page 2: Jumper Setting
The PISO-DIO Series classic driver supports Windows 98/NT/2K and 32-bit XP/ 2003/ Vista/7/8. Recommended to install this driver for have been used PISO-P16R16U series boards of regular user, please refer to : http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/piso-dio/manual/quickstar t/classic/ Step 2: Click the “Next>”... - Page 3 Step 5: Replace the PC cover. Step 6: Power on the computer. After powering-on the computer, please finish the Plug&Play steps according to the prompted messages. PISO-P16R16U and PEX-P8R8i/P16R16i Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
-
Page 4: Pin Assignments
Pin Assignments Extension Cable (CA-4037B): DB-40-Pin conversion DB-37-Pin PISO-P16R16U and PEX-P8R8i/P16R16i Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com... - Page 5 3. Power Supply GND connects to DIB0…DIB7 (Pin30/31/32/33/34/35/36/37). Power Supply GND connects to GND (Pin29). 4. Power Supply (+24 V) connects to NO(0-7) (Pin1/4/7/20/23/25/27/10). PISO-P16R16U and PEX-P8R8i/P16R16i Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
- Page 6 PC. It starts from 0. 5. Get DIO function test result. Click “Digital Output” item. Check channel 0, 2, 4, 6 Select the “Port 0” PISO-P16R16U and PEX-P8R8i/P16R16i Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
-
Page 7: Related Information
Click “Digital Input” item. The corresponding D/I becomes black for channel 0, 2, 4, 6 of D/O is ON. Select the “Port 0” PASS Related Information PISO-P16R16U and PEX-P8R8i/P16R16i Card Product Page: http://www.icpdas.com/root/product/solutions/pc_based_io_board/pci/piso-p16r16u.html DN-37, CA-3710 and DP-665 page (optional): http://www.icpdas.com/products/DAQ/screw_terminal/dn_37.htm http://www.icpdas.com/products/Accessories/power_supply/dp-665.htm...
