What's in the shipping package?
The package includes the following items:

Installing Windows Driver

Step 1: Setup the Windows driver. The driver is located at:

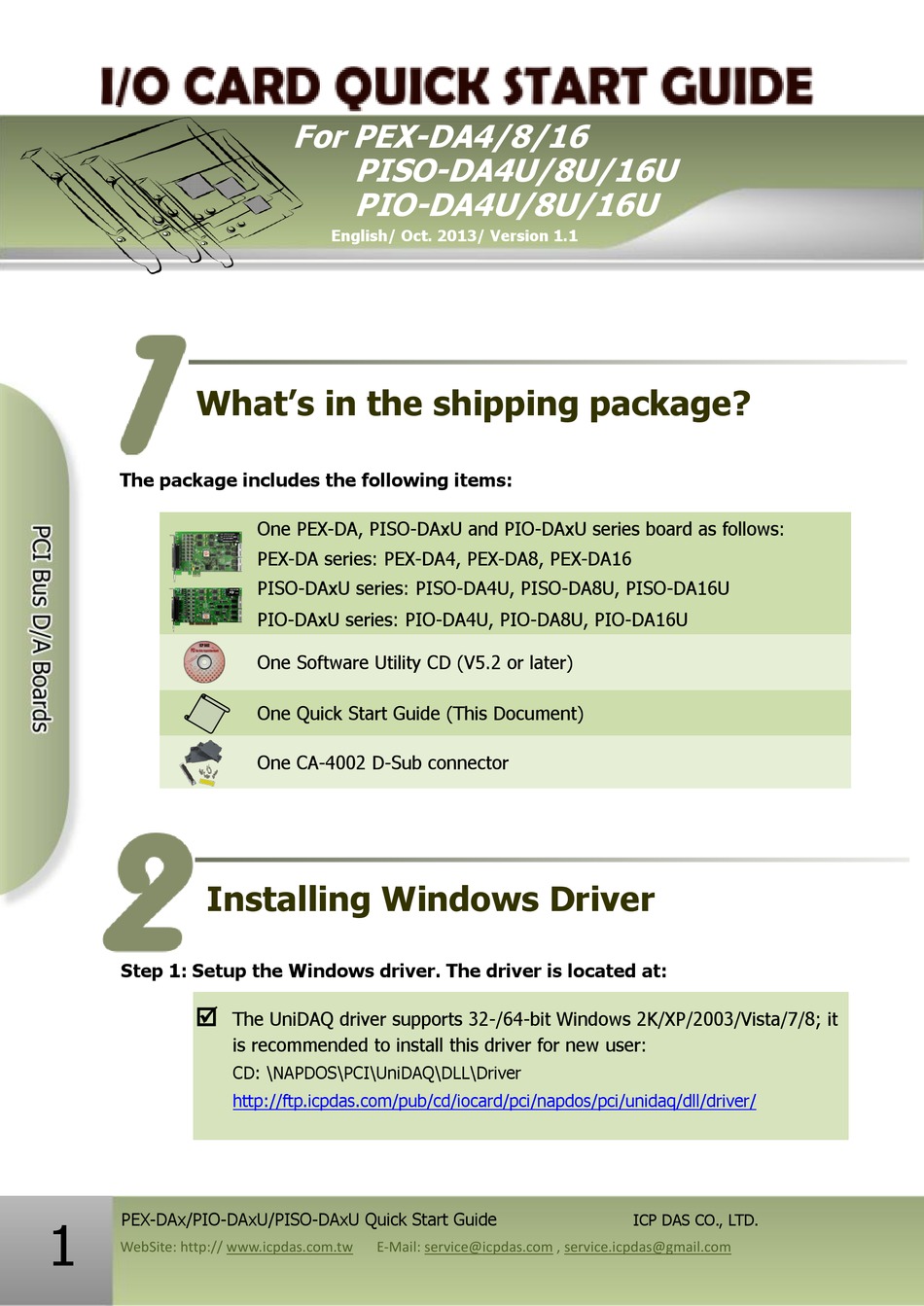

PEX-DAx/PIO-DAxU/PISO-DAxU Quick Start Guide
1
WebSite: http:// www.icpdas.com.tw
For PEX-DA4/8/16
PISO-DA4U/8U/16U
PIO-DA4U/8U/16U
English/ Oct. 2013/ Version 1.1

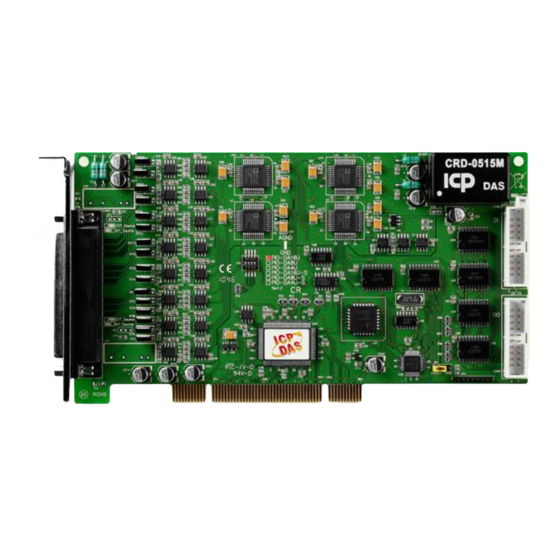

One PEX-DA, PISO-DAxU and PIO-DAxU series board as follows:
PEX-DA series: PEX-DA4, PEX-DA8, PEX-DA16
PISO-DAxU series: PISO-DA4U, PISO-DA8U, PISO-DA16U
PIO-DAxU series: PIO-DA4U, PIO-DA8U, PIO-DA16U
One Software Utility CD (V5.2 or later)
One Quick Start Guide (This Document)
One CA-4002 D-Sub connector
The UniDAQ driver supports 32-/64-bit Windows 2K/XP/2003/Vista/7/8; it
is recommended to install this driver for new user:
CD: \NAPDOS\PCI\UniDAQ\DLL\Driver
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/dll/driver/
E-Mail: service@icpdas.com , service.icpdas@gmail.com
ICP DAS CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIO-DA U Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ICP DAS USA PIO-DA U Series

  • Page 1 For PEX-DA4/8/16 PISO-DA4U/8U/16U PIO-DA4U/8U/16U English/ Oct. 2013/ Version 1.1 What’s in the shipping package? The package includes the following items: One PEX-DA, PISO-DAxU and PIO-DAxU series board as follows: PEX-DA series: PEX-DA4, PEX-DA8, PEX-DA16 PISO-DAxU series: PISO-DA4U, PISO-DA8U, PISO-DA16U PIO-DAxU series: PIO-DA4U, PIO-DA8U, PIO-DA16U One Software Utility CD (V5.2 or later) One Quick Start Guide (This Document) One CA-4002 D-Sub connector...
  • Page 2  The PIO-DA driver supports Windows 98/NT/2K and 32-bit XP/ 2003/ Vista/7/8. Recommended to install this driver for have been used PIO-DA series boards of regular user, please refer to : http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/pio-da/manual/quickstart/ classic/ Step 2: Click the “Next>” button to start the installation. Step 3: Check your DAQ Card is or not on supported list, then click the “Next>”...
  • Page 3 Pin Assignments PEX-DAx/PIO-DAxU/PISO-DAxU Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
  • Page 4 Self-Test DIO Test Wiring:  1. Use the CA-2002 (optional) to connect the CON1 with CON2. CON1 CON2 CA-2002 Analog Output Test Wiring:  2. Prepare for device: DN-37 (optional) Wiring terminal board.  Digital Multi-Meter.  3. Connect a DN-37 to the CON3. CON3 PEX-DAx/PIO-DAxU/PISO-DAxU Quick Start Guide ICP DAS CO., LTD.
  • Page 5 4. Connect the positive probe (+) of Multi-meter to VO_0 (Pin 0), and then the negative probe (-) of Multi-meter to A.GND (Pin 05). 5. Execute the UniDAQ Utility Program. This program (UniDAQ Utility) will be placed in the default path after completing installation.
  • Page 6 6. Get DIO function test result. Click “Digital Output” item. Check channel 0, 2, 4, 6 Select the “Port 0” Click “Digital Input” item. The corresponding D/I becomes red for channel 0, 2, 4, 6 of D/O is ON. PASS Select the “Port 0”...
  • Page 7 7. Get Analog Output function test result. Click “Analog Output” item. Click this button. Select the “Port 0” Select the “+/- 10V” Type the voltage value The value read on meter may be a little difference from the DA value because of the resolution limit of meter or the measurement error.
  • Page 8 Related Information PEX-DAx, PIO-DAxU and PISO-DAxU Series Card Product Page:  http://www.icpdas.com/root/product/solutions/pc_based_io_board/pci/pio-da4.html CA-2002, CA-3710 and DN-37 page (optional):  http://www.icpdas.com/products/Accessories/cable/cable_selection.htm http://www.icpdas.com/products/DAQ/screw_terminal/dn_37.htm Documentation and Software:  CD:\NAPDOS\PCI\UniDAQ\ http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/ PEX-DAx/PIO-DAxU/PISO-DAxU Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
