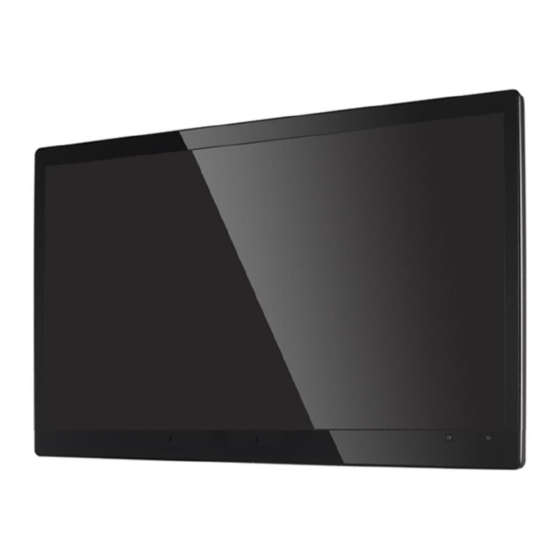

Vista PVM27DEC Quick Start Manual
  1. Manuals
  2. Brands
  3. Vista Manuals
  4. Monitor
  5. PVM27DEC
  6. Quick start manual

Vista PVM27DEC Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Quick Start Guide
Quick start guide for the
PVM27DEC
PVM32DEC
i

Advertisement

loading
Need help?

Need help?

Do you have a question about the PVM27DEC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vista PVM27DEC

Summary of Contents for Vista PVM27DEC

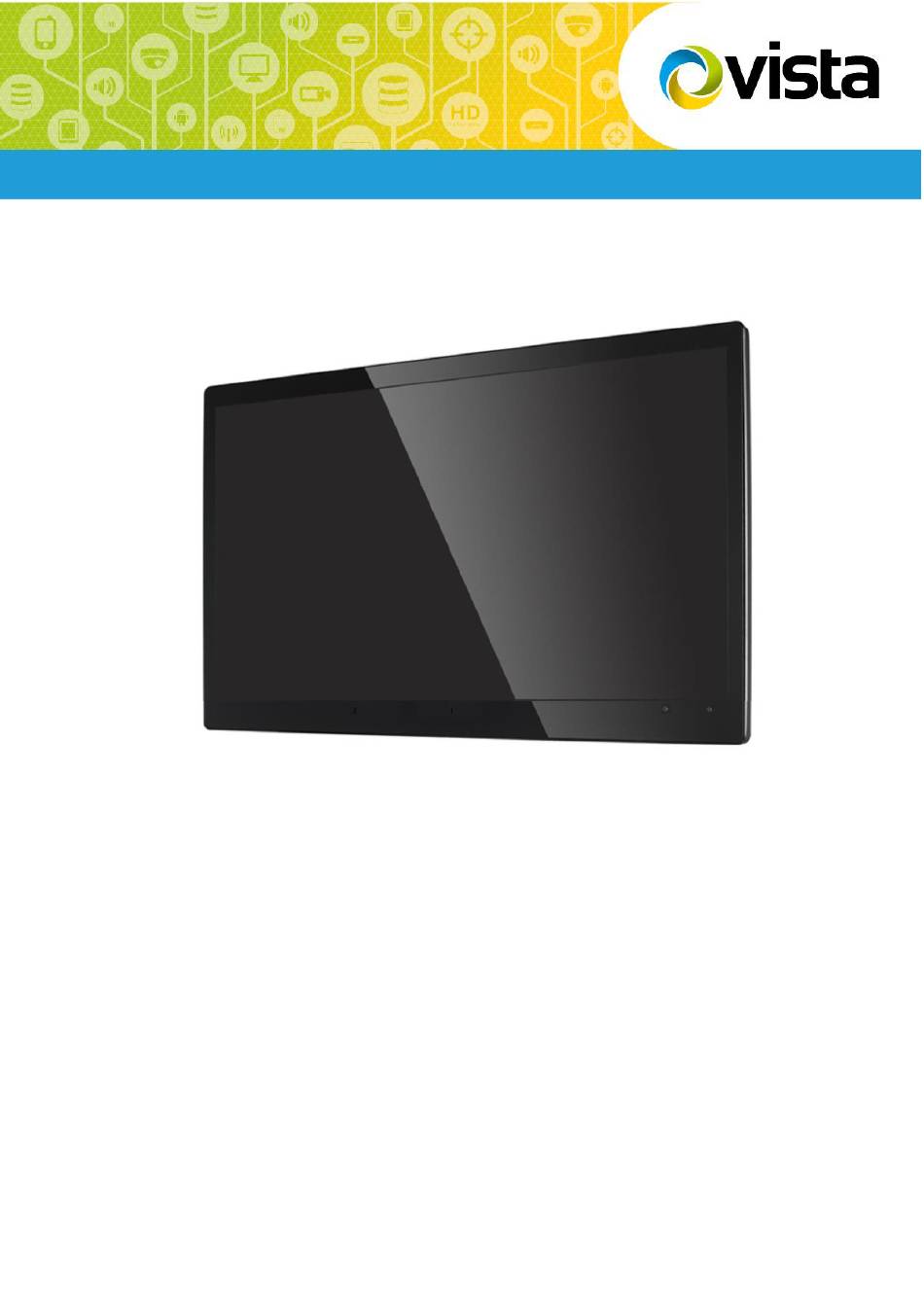

  • Page 1 Quick Start Guide Quick start guide for the PVM27DEC PVM32DEC...
  • Page 2 Norbain SD,Inspired, East Hampstead RD, Bracknell, RG12 1YQ. UK +44 (0) 118 912 5000 Vista Technical Helpline: +44 (0) 118 912 5125 Note: You should be at the equipment and ready with details before calling Vista Technical Support. Conventions Used in this Manual Boldface or button icons highlight command entries.
  • Page 3 This apparatus is manufactured to comply with the radio interference. A Declaration of Conformity in accordance with the following EU standards has been made. The manufacturer declares that the product supplied with this document is compliant the provisions of the EMC Directive 2004/108/EC, the CE Marking Directive 93/68 EEC and all associated amendments.

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS Read the instruction manual before operating the equipment. Retain the manual for future reference. 2. CLEANING Turn the unit off and unplug from the power outlet before cleaning. Use a damp cloth for cleaning.

  • Page 5: Ce Compliance Statement

    D. If the equipment does not operate normally by following the operating instructions, adjust those controls that are covered by the operating instructions as Improper adjustment for other controls may result in damage to the unit. E. If the equipment has been dropped or the casing is damaged. F.

  • Page 6: Contents Of Package

    Installation of the PVM27DEC/PVM32DEC must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the PVM27DEC/PVM32DEC and its accessories from the carton and verify that they were not damaged in shipment.

  • Page 7: Basic Installation

    BASIC INSTALLATION 1) Remove the access cover: 2) Connect ethernet cable to RJ45 port: PoE+ (IEEE802.3at) 30W required. 3) Replace access cover:...
  • Page 8 4) Mount the PVM27DEC/PVM32DEC to bracketry suitable for the application using either the VESA100 x 100 mm or VESA 200 x 100 mm & Screw hole: M6 x 10 mm on the rear Monitor OSD ACCESS Use either the buttons on the side of the PVM27DEC/PVM32DEC...
  • Page 9 Quick Setup 1. Account 1.1 Set ID and Password. ▪ Default ID/Password is admin/admin. Note ▪ Change the password for security. Network 2.1 Set each item in Network setting screen. WAN Port: Select whether to use static IP or dynamic IP. ...
  • Page 10 Network Time Sync: Select network for synchronizing with time server.  System Time: Not for synchronizing with network time server, set the device time; otherwise (applying for  Daylight saving time), select DST. Time Zone: Select time zone for the system being installed. ...
  • Page 11 Channel Assign Cameras / Video files can be dragged to screen segments from the Channel Assign menu Camera Registration Item Description Reload the list. Local Display registered image list. Display media file list. Displayed registered device list. Drag & drop the desired channel. List Drag the screen and drop it on the list to unregister the selected channel.
