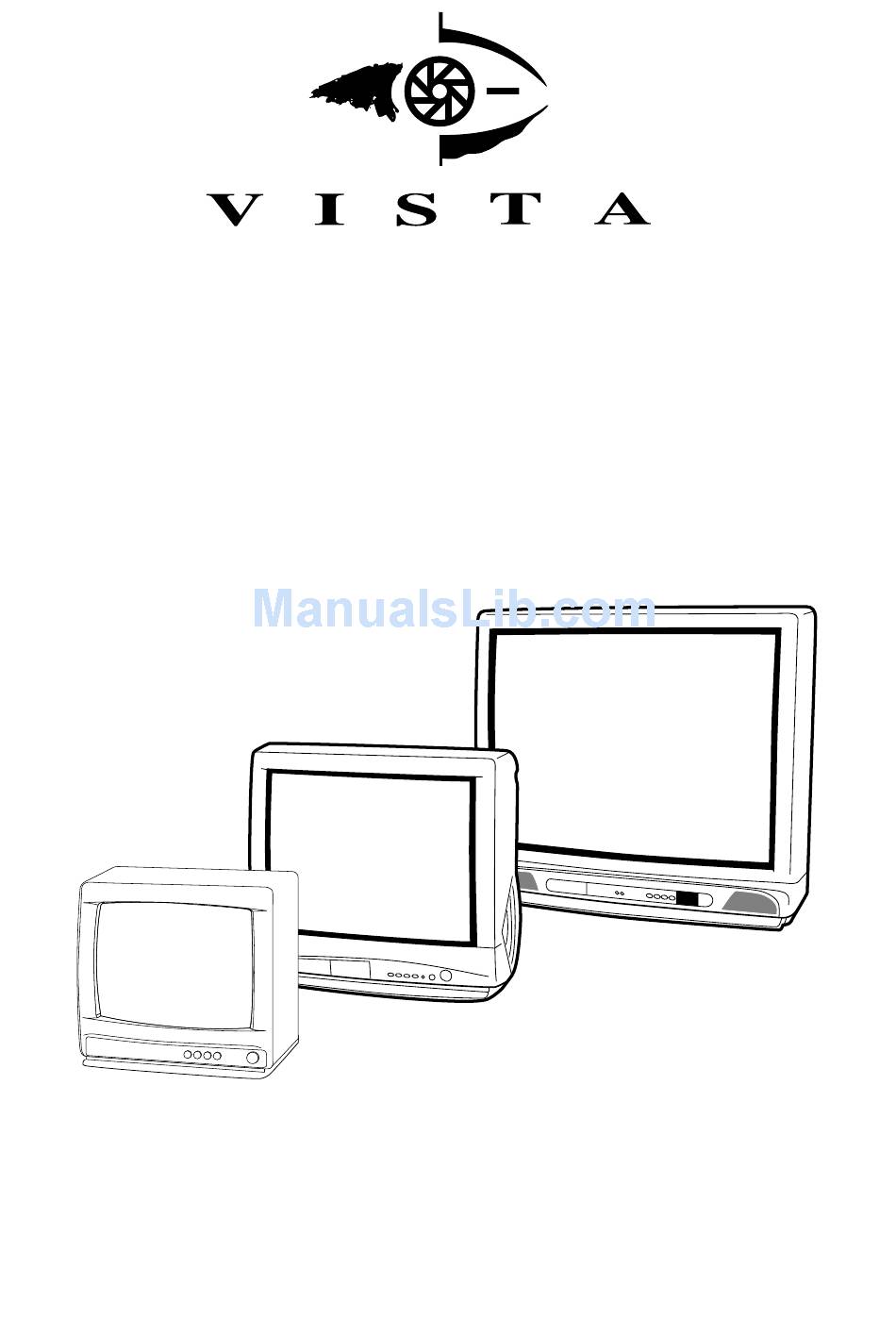

- Page 1 USER OPERATING MANUAL Colour Monitor TV14 TV21 TV28 Please read this User Operating Manual before using your Colour Monitor...
-
Page 2: Safety Precautions
Installation Safety Pr ecautions Safety Pr ecautions CAUTION: Please read and retain for your safety. This colour monitor has been engineered and manufactured to assure your personal safety. But improper use can result in potential electrical shock or fire hazards. In order not to defeat the safeguards incorporated in this receiver observe the following basic rules for its installation, use and servicing. -
Page 3: Installation
Preparation-Mains Supply ANT.75 Preparation-AV Connection Installa tion Installa tion Mains Supply Connect the power cord of the monitor to a wall outlet. The monitor is prepared for a mains voltage AC220~240V 50Hz. When the monitor is not to be used for an extended period of time, it is advisable to disconnect the power cord from the power outlet. -
Page 4: General Operation
Monitor Controls Switching On/Off General Opera tion General Opera tion Controls Level down Level up Picture control Power Indicator Mains On/Off switch No operation No operation No operation Switching On/Off To turn the monitor on, press the Mains On/Off button The power indicator illuminates red to show the power is on. - Page 5 Sound and Picture Controls General Opera tion General Opera tion Sound and Picture Controls Sound Volume Control SOUND +30 button. To increase the sound volume level, press the IIIII|||||--------- To decrease the sound volume level, press the button. Selection & Adjustment of Controls SOUND +10 SOUND +45 The following controls can be selected by using the P...
-
Page 6: Child Lock
Child Lock General Opera tion General Opera tion Child Lock This monitor has a child lock function which renders the buttons on the front of the monitor inoperative. CHILD LOCK NO/YES Setting the Child Lock Mode Press the button repeatedly until the word "CHILD LOCK” appears on the screen. -
Page 7: Specification
BNC connector Audio In RCA connector Output terminals Video OUT BNC connector Audio OUT RCA connector TV14 TV21 TV28 Sound output (watts) Picture tube,Diagonal-cm (Deflection) 37, (90°) 55, (90°) 70, (110°) (Visible picture diagonal) (cm) Dimensions (W x H x D mm ) 370 x 335 x 391.5... - Page 8 Norbain House Eskdale Road Winnersh Triangle Wokingham Berkshire RG41 5TS Part No. SKP10126 E7CV...
