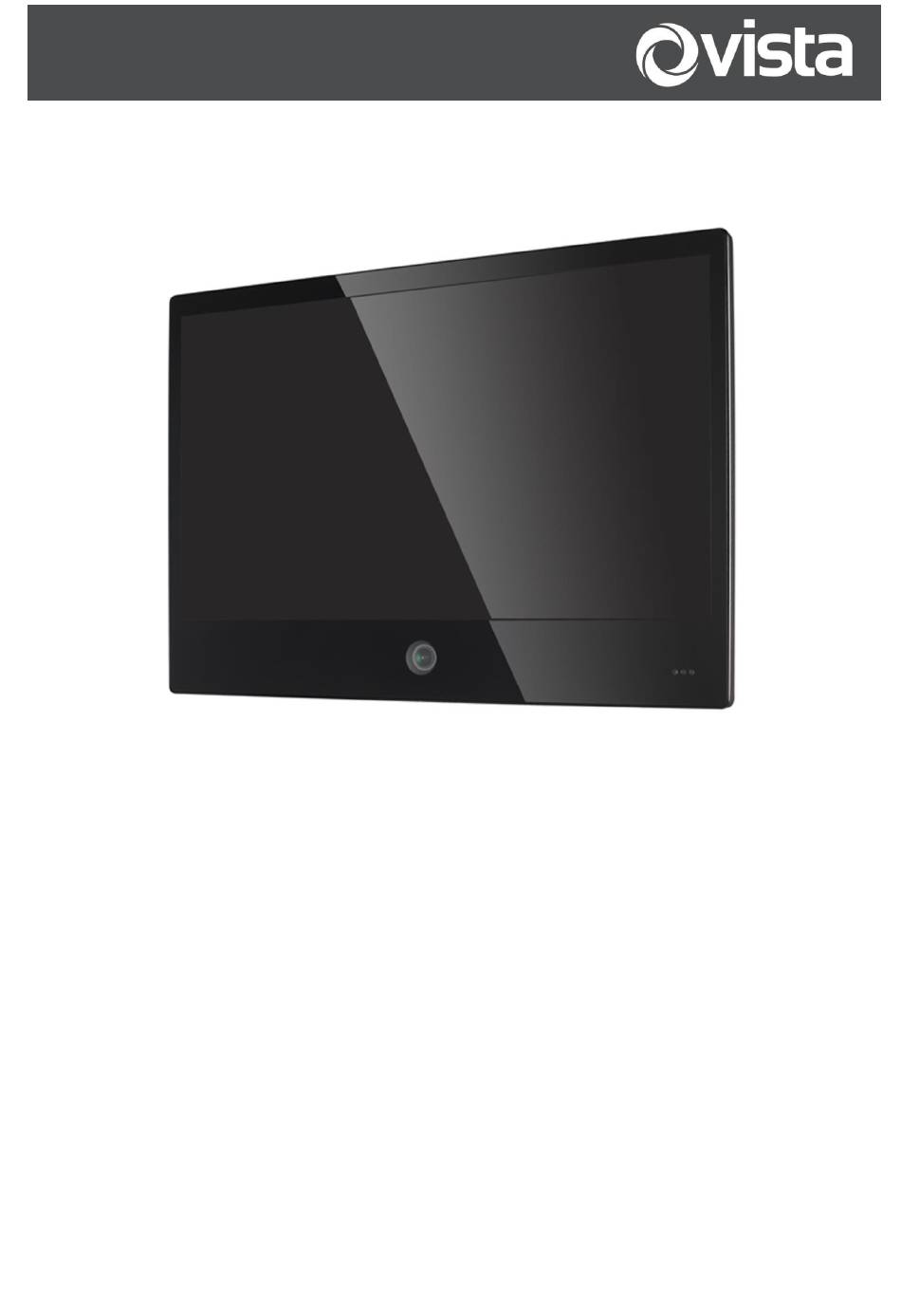

- Page 1 Quick start guide for the VK2-PVM27CAM VK2-PVM32CAM...
- Page 2 Norbain SD,Inspired, East Hampstead RD, Bracknell, RG12 1YQ. UK +44 (0) 118 912 5000 Vista Technical Helpline: +44 (0) 118 912 5125 Note: You should be at the equipment and ready with details before calling Vista Technical Support. Conventions Used in this Manual Boldface or button icons highlight command entries.
- Page 3 This apparatus is manufactured to comply with the radio interference. A Declaration of Conformity in accordance with the following EU standards has been made. The manufacturer declares that the product supplied with this document is compliant the provisions of the EMC Directive 2004/108/EC, the CE Marking Directive 93/68 EEC and all associated amendments.
-
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS Read the instruction manual before operating the equipment. Retain the manual for future reference. 2. CLEANING Turn the unit off and unplug from the power outlet before cleaning. Use a damp cloth for cleaning. -
Page 5: Ce Compliance Statement
D. If the equipment does not operate normally by following the operating instructions, adjust those controls that are covered by the operating instructions as Improper adjustment for other controls may result in damage to the unit. E. If the equipment has been dropped or the casing is damaged. F. -
Page 6: Contents Of Package
Installation of the VK2-PVM27CAM/VK2-PVM32CAM must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the VK2-PVM27CAM/VK2-PVM32CAM and its accessories from the carton and verify that they were not damaged in shipment. -
Page 7: Installation
INSTALLATION For the operation of the n etwork c amera, it is necessary to connect a network cable for data transmission, power connection from a PoE+ source, alternatively a separate 24VDc power supply can be used to power the monitor. In addition to power an external alarm cable can be connected, or a Micro SD card can be inserted to give a local recording function. -
Page 8: Mechanical Installation
Mechanical Installation 1) Remove the access cover: 2) Connect ethernet cable to RJ45 port: PoE+ (IEEE802.3at) 30W required. 3) Replace access cover:... - Page 9 4) Mount the VK2-PVM27CAM/VK2-PVM32CAM to bracketry suitable for the application using either the VESA100 x 100 or VESA200 x 100 on the rear...
- Page 10 1.3 OSD ACCESS / IR REMOTE Use either the buttons on the side of the VK2-PVM27CAM/VK2-PVM32CAM to enter the set up menus for the monitor screen Use the MENU key on the IR Remote to access the Camera function menus.
-
Page 11: Resetting To The Factory Default Settings
NOTE: For instructions on loading logos into the monitor see the main user manual page 70 section 3.6.5.1 PVM Logo Upload 1.4 Resetting to the factory default settings To reset the monitor to the original factory settings, in the monitor web page, go to the Setup > System > Maintenance web page (described in “System >... - Page 12 Select Assign IP Address. The Assign IP window will display. Enter the required IP address. NOTE: For more information, refer to the SmartManager User Manual.
