Vista VFS-200/HI-LITE Series Installation And User Manual

Vfs/hi-lite series color tft lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

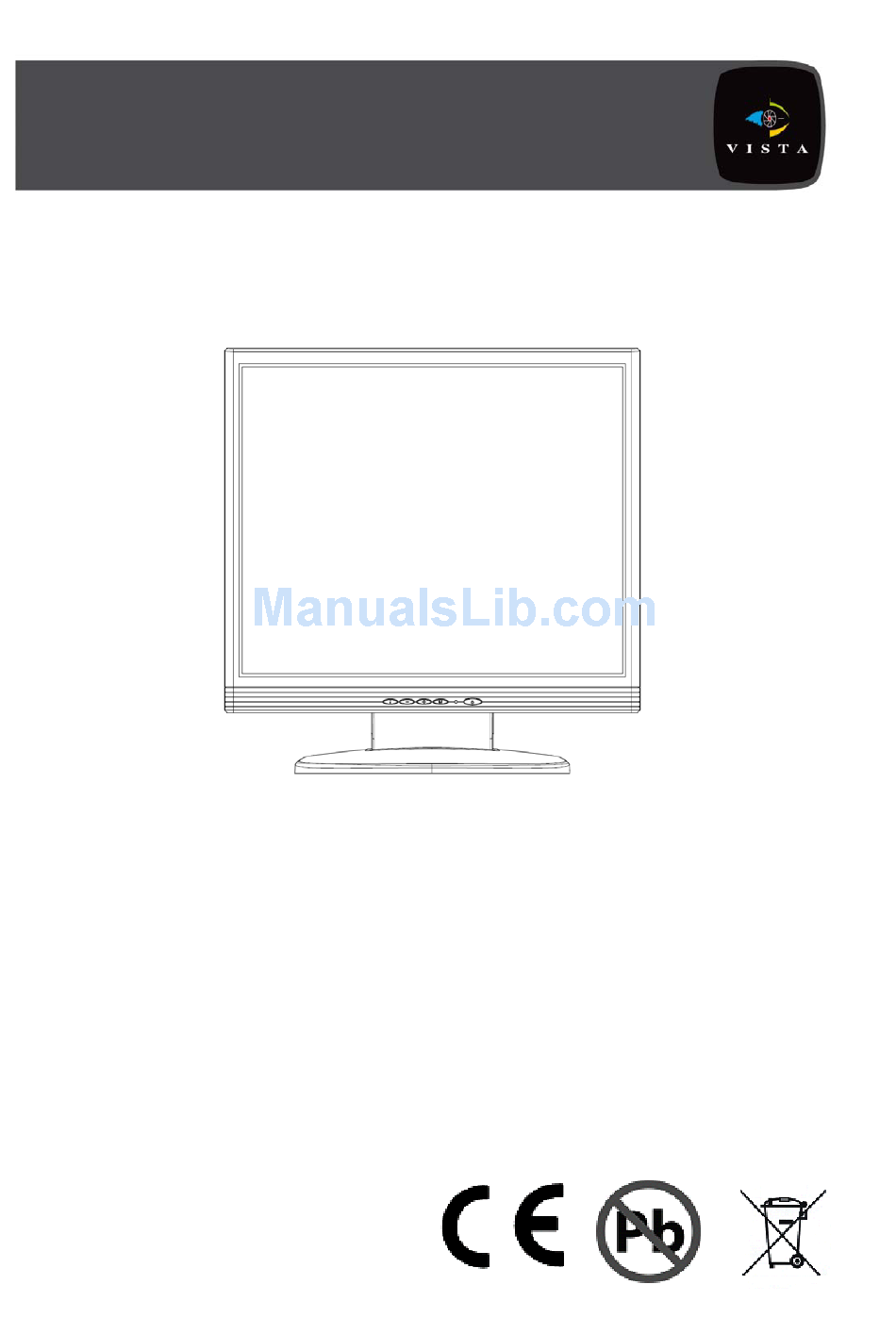

VFS- 200/ HI-LITE range Installation and user manual
Installation and user instructions for :
VFS-200/HI-LITE Range of flat screen monitors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFS-200/HI-LITE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vista VFS-200/HI-LITE Series

Summary of Contents for Vista VFS-200/HI-LITE Series

  • Page 1 VFS- 200/ HI-LITE range Installation and user manual Installation and user instructions for : VFS-200/HI-LITE Range of flat screen monitors...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS  FCC information ---------------------------------------------------------------------- 4  CE information ------------------------------------------------------------------------ 4  Safety Precautions ------------------------------------------------------------------- 4 Scope -------------------------------------------------------------------------------------- 6 Functional specification ------------------------------------------------------------- 6 Controls and indicators -------------------------------------------------------------- 8 OSD Menu ------------------------------------------------------------------------------- 9 Regulatory Agency ------------------------------------------------------------------- 20 Reliability ------------------------------------------------------------------------------ 21 Mechanical -----------------------------------------------------------------------------22...

  • Page 4: Fcc Information

    FCC INFORMATION This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 5 8. Route power cords so that they cannot be walked upon or tripped over. Do not allow anything to rest on the power cord. 9. Do not install monitor in wet areas, or where it may be exposed to rain or water. Do not spill liquid of any kind on the unit.

  • Page 6: Scope

    1. Scope This specification is used to define the performance of VFS/HI-LITE series color TFT LCD monitor. This system also supports both video input and PC input. In video input mode, the system can automatically detect the NTSC signal and PAL signal. In PC mode, this system can support up to 1920 x 1080 VESA standard.
  • Page 7 2.5 Audio Input Signal Level: 1.0 Vrms 2.6 Environmental  Temperature Operating: 0 C to +40 Storage: -20 C to +60  Humidity Operating: 10% to 85% (non-condensing) Storage: 10% to 95% (non-condensing) 2.7 EDID This series of displays support EDID, but does not support DDC2B function. 2.8 Connectors VIDEO AUDIO: Stereo Phone Jack x2, OUT x1, IN x1...

  • Page 8: Controls And Indicators

    3. Controls and indicators A. “i” Channel button  Press the button to select input signal. B. “-“ / “+” buttons  Press the buttons to scrolling the cursor to desired function.  Press the buttons to adjust the value of selected function in sub OSD menu. C.

  • Page 9: Osd Menu

    4. OSD Menu Hot keys： - / + VOLUME：Press button to enter the function and press buttons to adjust the volume value, the press MENU button to exit OSD menu.. FREEZE：Press button to enter the function and press any button to release the function.
  • Page 10 PC mode： MAIN ADJUST, COLOR ADJUST, IMAGE ADJUST (VGA only), INFORMATION, LANGUAGE, SETUP MENU, RECALL, AUDIO CONTROL, EXIT Press MENU button to enable MAIN MENU. - / + Press buttons to select an item, then Press MENU button to enter the function or next sub menu.
  • Page 11 MAIN ADJUST： - / + 1. Press buttons to select an item, then press MENU button to Enter adjust item or function. - / + 2. Press buttons to adjust the value, then press MENU button to Exit adjusts. VIVID MODE：Select the VIVID MODE(0~3 and USER) 0: NORMAL, 1: TEXT, 2: PHOTO, 3: MOVIE BRIGHTNESS：Adjust the brightness value CONTRAST：Adjust the contrast value...
  • Page 12 MENU button to enter the sub-menu COLOR ADJUST：Press Set the color temperature of the LCD monitor for the CIE coordinate 9300˚k or 6500˚k or USER MODE - / + 1. Press buttons to select an item 2. Press MENU button to select adjust item, - / + 3.
  • Page 13 MENU button to enter the sub-menu IMAGE ADJUST (VGA only)：Press - / + 1. Press buttons to select an item 2. Press MENU button to select adjust item - / + 3. Press buttons to adjust the value 4. Press MENU button to return AUTO ADJUST：Press...
  • Page 14 MENU button to enter the sub-menu LANGUAGE：Press - / + 1. Press buttons to select language 2. Press MENU button to enter MENU button to enter the sub-menu SETUP MENU：Press - / + 1. Press buttons to select an item 2.
  • Page 15 GREEN MODE：Off or On (5 min ~ 10 min) OFF – No function ON – Screen will reduce back light to 80% within (5 min ~ 10 min) Screen will back to normal when any buttons being touched. AUTO SHIFT：Adjust AUTO SHIFT ON/OFF OFF –...
  • Page 16 MENU button to enter the sub-menu AUDIO CONTROL：Press - / + 1. Press buttons to select an item 2. Press MENU button to select adjust item - / + 3. Press buttons to adjust the value(ON or OFF) 4. Press MENU button to return CVBS1：Setting the audio input source in CVBS1 channel...
  • Page 17 Video/HDMI mode： MAIN ADJUST, COLOR ADJUST, SCAN SETTING, INFORMATION, LANGUAGE, SETUP MENU, RECALL, AUDIO CONTROL, EXIT Press MENU button to enable MAIN MENU. - / + Press buttons to select an item, then Press MENU button to enter the function or next sub menu.
  • Page 18 MAIN ADJUST： - / + 1. Press buttons to select an item 2. Press MENU button to select adjust item, - / + 3. Press buttons to adjust the value 4. Press MENU button to return VIVID MODE：Select the VIVID MODE (0~3 and USER) 0: NORMAL, 1: TEXT, 2: PHOTO, 3: MOVIE BRIGHTNESS：Adjust the brightness value CONTRAST：Adjust the contrast value...
  • Page 19 MPEG NR：MPEG Noise reduction - - LOW / MID / HIGH DLC：Dynamic Luminance Control - - DISABLE / ENABLE VOLUME：Adjust the volume value EXIT：Press MENU button to return to the main menu MENU button to enter the sub-menu SCAN SETTING：Press ...

  • Page 20: Regulatory Agency

    MENU button to get the signal information INFORMATION：Press RECALL：Recall the Brightness, Contrast, Sharpness, Saturation, Tint, Volume value of the mode data and 3D Comb = ENABLE, NR = MID, MPEG NR = LOW, DLC = DISABLE, Vivid Mode = USER, OSD Timeout = 15, Green Mode = OFF, Auto Shift = OFF, CVBS1 LPF = OFF, CVBS2 LPF = OFF, then press MENU button...

  • Page 21: Mechanical

    7. Mechanical 7.1 Cabinet Material: Plastic Finish: Black 7.2 Dimensions 單位 :mm Model VFS-215/HI-LITE15” VFS-217/HI-LITE17” VFS-219/HI-LITE19” VFS-221W/HI-LITE21.5”...
  • Page 24 NORBAIN SD LTD 210 Wharfedale Road Winnersh Triangle Wokingham Berkshire RG41 5TP Subject to change without notice United Kingdom 3121-1224G04...

This manual is also suitable for:

Vfs-215/hi-lite15"Vfs-217/hi-lite17"Vfs-219/hi-lite19"Vfs-221w/hi-lite21.5"
