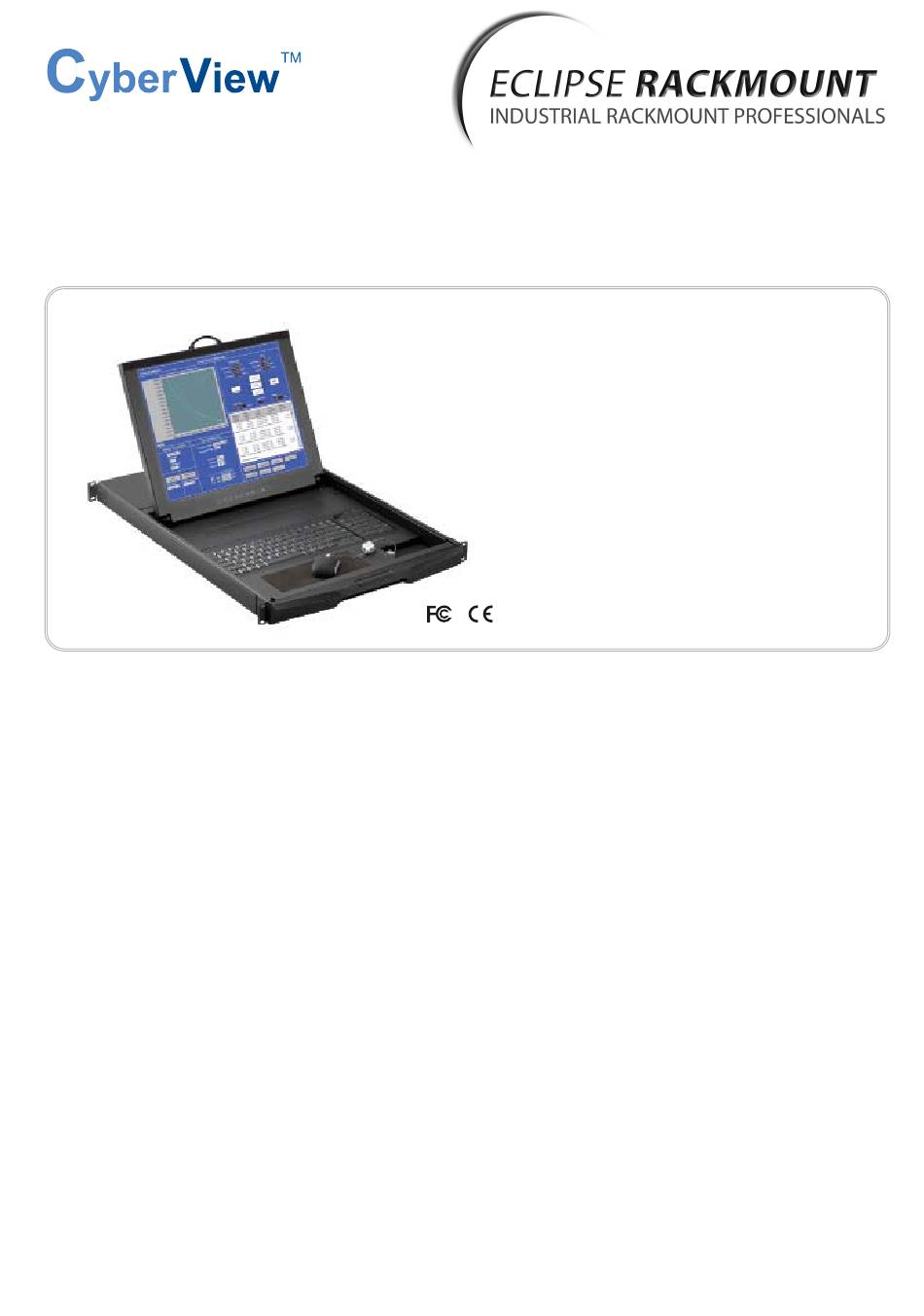

- Page 1 1U LCD Console Drawer & Optical Mouse Options Available: - DVI-D / HDMI / BNC / Audio - Full Range KVM - DC Power Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc. Manual ML09V02A -- Generation 4 -- www.EclipseRackmount.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > ERM-17 / ERM-19 Package Contents Structure Diagram & Dimensions P.1 - 2 Installation Connection < Part. 2 > Specifications / OSD Product Specif cations P.5 - 6 Keyboard / Mouse Specifications On-Screen Display Operation ( OSD ) P.8 - 9 <... - Page 4 Contents < Part. 4 > Integrated KVM Part Numbers Ending In: Matrix Local Remote 8-port 16-port 32-port Cat6 KVM 16-Cat6-M3X-IP 32-Cat6-M3X-IP 16-Cat6-M4X-2IP 32-Cat6-M4X-2IP 16-Cat6-M2X 32-Cat6-M2X 16-Cat6-M3X 32-Cat6-M3X 16-Cat6-M4X 32-Cat6-M4X Part Numbers Ending In: Combo Local Remote 8-port 16-port 32-port Cat6 KVM 8-Cat6-IP 16-Cat6-IP 32-Cat6-IP...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Contents
< Part 1 > < 1.1 > Package Contents ERM-17 or ERM-19 unit X 1 - WOM-01 wired mini USB optical mouse X 1 - CAE-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 < 1.2 > Dimensions ERM-17/19 Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 442 x 650 x 44 mm 595 x 860 x 140 mm 14.3 kg 19.1 kg...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... -
Page 9: Connection
< 1.4 > Connection to PS/2 or USB Server ERM-17/19 LCD console drawer LCD console drawer CAE-6 Combo CAE-6 Combo KVM cable KVM cable PS/2 server USB server < 1.4 > Connection to External KVM LCD console drawer LCD console drawer CAE-6 Combo CAE-6 Combo KVM cable... - Page 10 < Part 2 > < 2.1 > Product Specifications ERM-17 ERM-19 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. ) Contrast Ratio ( typ.
- Page 11 ERM-17/19 Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random ERM-17 ERM-19 Physical Specification Product ( W x D x H ) 442 x 650 x 44 mm 442 x 700 x 44 mm 17.4 x 25.6 x 1.73 inch...
-
Page 12: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard WOM-01 Wired mini USB optical mouse option: WOM-02 Wireless USB optical mouse Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-Screen Display Operation ( OSD ) ERM-17/19 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 14 < 2.3 > On-Screen Display Operation ( OSD ) OSD Conf guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 15 < Part 3 > < 3.1 > Options : ERM-17/19 - HDMI ( HDMI 1.1, CEA-861-D ) - DVI-D ( DVI-D TMDS single link ) - BNC ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Either HDMI or DVI-D can be selected.
- Page 16 < 3.2 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
- Page 17 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved. Manual ML09V02A -- www.EclipseRackmount.com...
