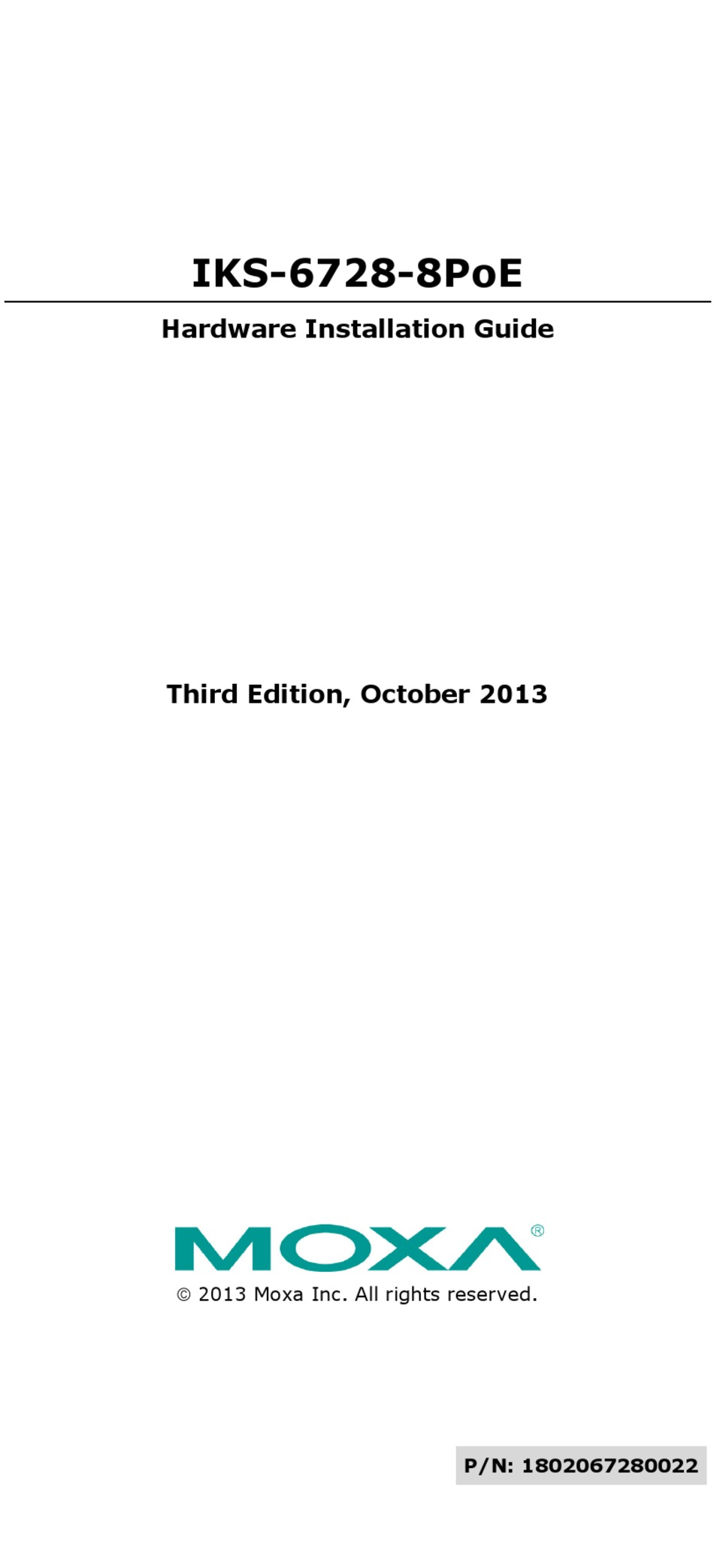

- Page 1 IKS-6728-8PoE Hardware Installation Guide Third Edition, October 2013 2013 Moxa Inc. All rights reserved. P/N: 1802067280022...
-
Page 2: Package Checklist

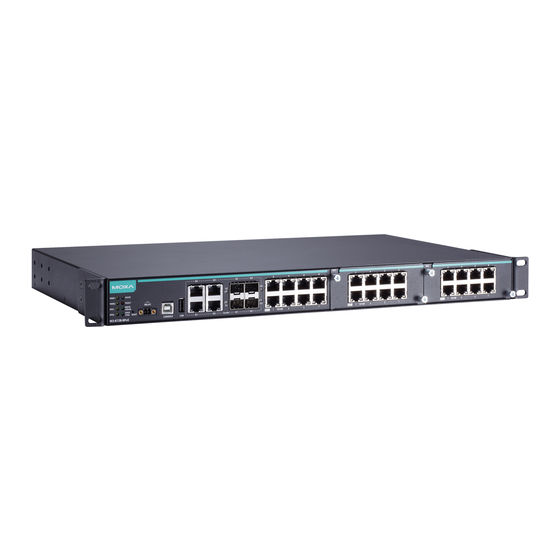

Package Checklist The Moxa IKS-6728-8PoE industrial rackmount switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • IKS-6728-8PoE switch • USB cable (Type A male to Type B male) •... - Page 3 Dimensions Unit = mm (inch) Fast Ethernet Interface Modules (IM-6700 Series) - 3 -...
- Page 4 NOTE Using a shielded cable achieves better electromagnetic compatibility. Connecting the Power Inputs The IKS-6728-8PoE switches support 4 types of power supply. • IKS-6728-8PoE-4GTXSFP-HV-HV-T: Two isolated 110/220 VAC (85 to 264 VAC) power supplies for switch and two isolated 48 VDC power inputs for PoE+ ports •...
-
Page 5: Wiring The Relay Contact
USB Connection The IKS-6728-8PoE switch has two USB ports, one type B USB-serial console port and one type A USB host port, located on the front panel. Use a USB cable (type A male to type B male) to connect the USB-serial console port to your PC's COM port, and install the UPort 1110 driver to verify operation. -
Page 6: The Reset Button
Power is not being supplied to the PoE+ power input EPS2 *: On the IKS-6728-8PoE-4GTXSFP-48-48-T model, both PWR1 and PWR2 LED will be “On” with a single power input. This is because both internal power units are operating as redundant secondary power with the single input. - Page 7 System is in the event of failure, or is under quick inspection FAULT System is in normal operation When the IKS-6728-8PoE is set as the Master of the Turbo Ring, or as the Head of the Turbo Chain The IKS-6728-8PoE has become the...
-
Page 8: Specifications
The corresponding port’s 100 Mbps link is active GREEN Blinking Data is being transmitted at 100 Mbps The corresponding port’s 100 Mbps P1 to P8 link is inactive (10/100M TP The corresponding port’s 10 Mbps link ports) is active AMBER Blinking Data is being transmitted at 10 Mbps The corresponding port’s 10 Mbps link is inactive... - Page 9 Protection Physical Characteristics Housing IP30 protection Dimensions 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in) Weight IKS-6728-8PoE-4GTXSFP-HV-HV-T: 4250 g IKS-6728-8PoE-4GTXSFP-HV-T: 4150 g IKS-6728-8PoE-4GTXSFP-48-48-T: 4250 g IKS-6728-8PoE-4GTXSFP-48-T: 4150 g Installation 19’’ rack mounting Environmental Limits Operating Temp.
-
Page 10: Rack Mounting Instructions
(e.g. use of power strips). NOTE The rackmount ears can be equipped on the front or rear of Moxa IKS-6728-8PoE switch. Restricted Access Locations • This equipment is intended to be used in Restricted... - Page 11 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 11 -...
