Moxa Technologies IKS-6726-8PoE Series Hardware Installation Manual

IKS-6726-8PoE Series
Hardware Installation Guide
First Edition, May 2010
Package Checklist
The Moxa IKS-6726-8PoE series industrial rackmount switches are
shipped with the following items. If any of these items are missing or
damaged, please contact your customer service representative for
assistance.
1 Moxa IKS-6726-8PoE Switch
Hardware Installation Guide
CD-ROM with User's Manual and SNMP MIB file
Moxa Product Warranty Statement
RJ45 to DB9 console port cable
Protective caps for unused ports
2 rack-mount ears

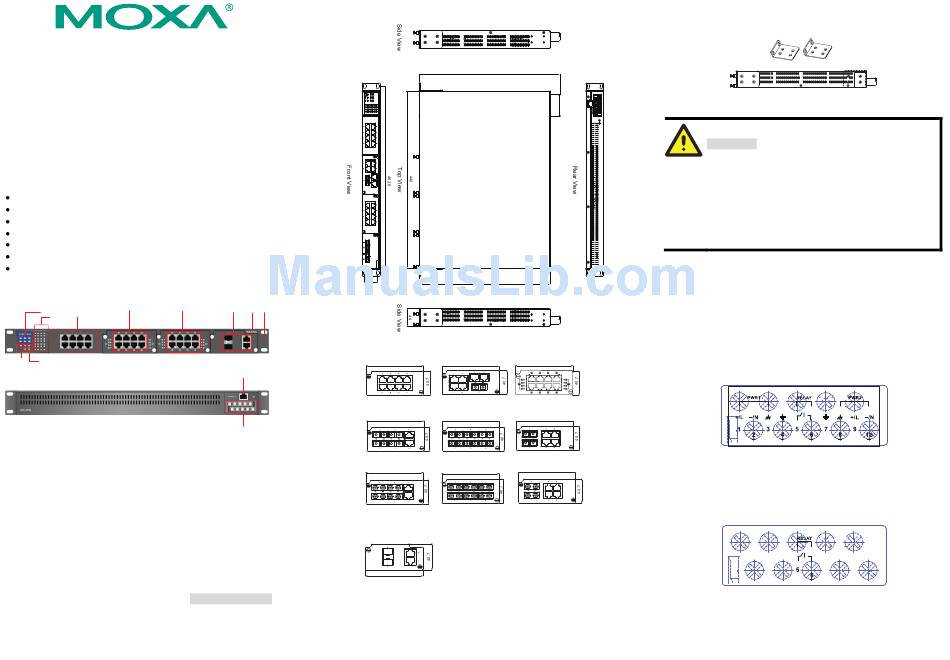

Panel Layouts
7
8
1
6
3
2
4
1. System status LEDs
2. Mode LEDs for the nterface module
3. Port LEDs for the interface module
4. Push-button switch for selecting the mode of the interface module
5. Model name
6. 10/100BaseT(X) port
7. 10/100BaseT(X) PoE port
8. Fast Ethernet / PoE interface module
9. Gigabit Ethernet interface module
10. Serial console port
11. 10-pin terminal block for power inputs and relay output
12. Rack mounting brackets
— 1 —
Dimensions (unit = mm)
9 5 12
Fast Ethernet / PoE Interface Modules (for slot 1)
10
11
PM-7200-4MSC2TX/PM-7200-4SSC2TX
Gigabit Ethernet Interface Modules (for slot 2)
P/N: 1802067260020
347.8
323.5
96.8 96.8
96.8
PM-7200-8TX PM-7200-1LSC6TX
PM-7200-8PoE
96.8
96.8 96.8
PM-7200-6MSC/PM-7200-6SSC PM-7200-2MSC4TX/PM-7200-2SSC4TX
96.8 96.8
96.8
PM-7200-4MST2TX PM-7200-6MST PM-7200-2MST4TX
86.6
PM-7200-2GTXSFP
— 2 —
Rack Mounting
Use four screws to attach the switch to a standard rack.
Wiring Requirements
WARNING
Safety First!
Be sure to disconnect the power cord before installing
and/or wiring your Moxa industrial rackmount switch.
Calculate the maximum possible current in each power
wire and common wire. Observe all electrical codes
dictating the maximum current allowable for each wire
size.
If the current goes above the maximum ratings, the wiring
could overheat, causing serious damage to your equipment.
Grounding the Moxa Industrial Rackmount Switch
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting devices.
Wiring the Power Inputs
The IKS series switches support dual redundant power supplies: Power
Supply 1 (PWR1) and Power Supply 2 (PWR2). The connections for
PWR1, PWR2, and the RELAY are located on the terminal block. The
front view of the terminal block connectors is shown below.
Wiring the Relay Contact
Each IKS switch has one relay output. Refer to the next section for
detailed instructions on how to connect the wires to the terminal block
connector, and how to attach the terminal block connector to the terminal
block receptor.
— 3 —
