ICS-G7748A/G7750A/
G7752A/G7848A/G7850A/
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
G7852A Series
Edition 3.0, February 2017
Technical Support Contact Information
www.moxa.com/support
 2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802077001011
*1802077001011*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICS-G7748A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Moxa Technologies ICS-G7748A Series

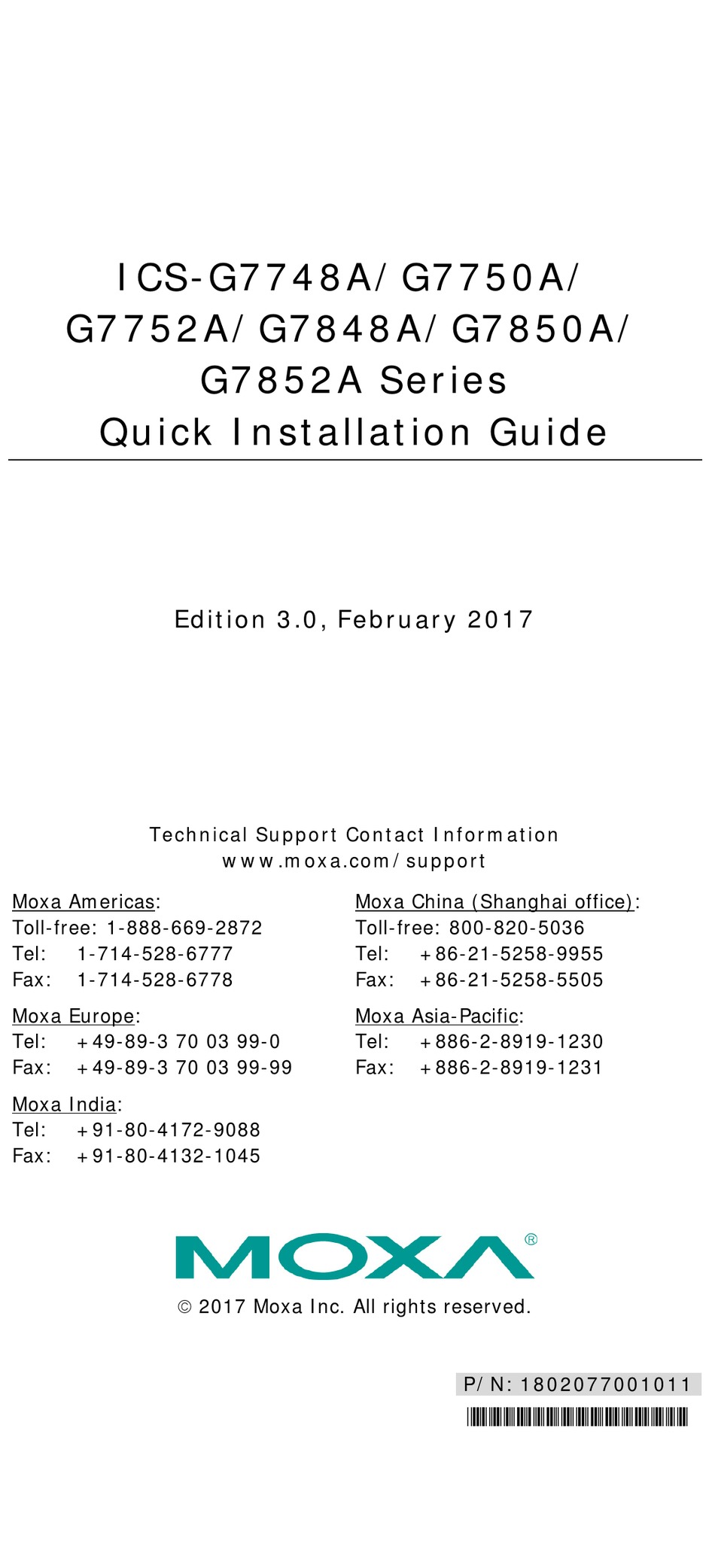

  • Page 1 ICS-G7748A/G7750A/ G7752A/G7848A/G7850A/ G7852A Series Quick Installation Guide Edition 3.0, February 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:...
