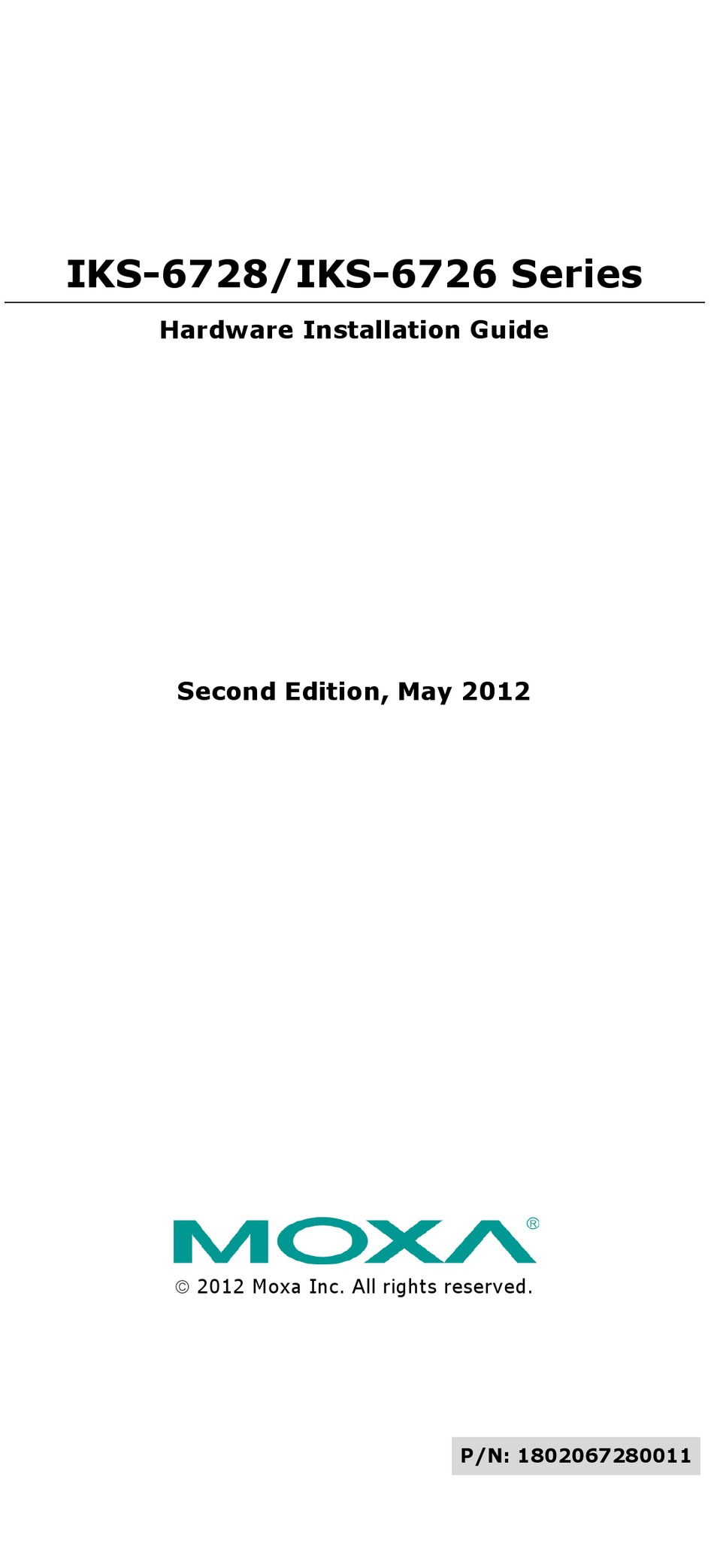

- Page 1 IKS-6728/IKS-6726 Series Hardware Installation Guide Second Edition, May 2012 2012 Moxa Inc. All rights reserved. P/N: 1802067280011...
-
Page 2: Package Checklist

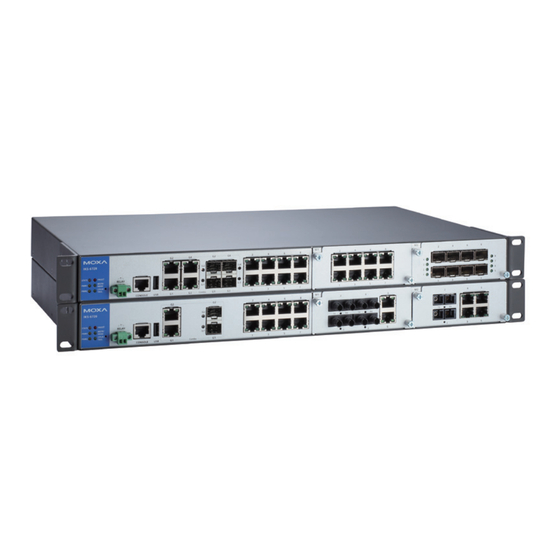

Package Checklist The Moxa IKS-6728/IKS-6726 Series industrial rackmount switches are shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • IKS-6728 or IKS-6726 Switch • RJ45 to DB9 console port cable •... - Page 3 Dimensions Unit = mm (inch) Fast Ethernet Interface Modules (IM-6700 Series) Grounding the Moxa Industrial Rackmount Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. Connecting the Power Inputs The IKS-6726/6728 series of switches supports both 110/220 VAC and 24/48 VDC power supplies.
-
Page 4: Wiring The Relay Contact
AC Power Inlets The connection for PWR1 (power supply 1) and PWR2 (power supply 2) are located on the rear side (shown below). Be sure to use a standard power cord with an IEC C13 connector, which is compatible with the AC power inlet. -
Page 5: The Reset Button
The Reset Button Depress the Reset button for 5 continuous seconds to load the factory default settings. Use a pointed object, such as a straightened paper clip or toothpick, to depress the Reset button. This will cause the STATE LED to blink on and off. -
Page 6: Specifications
Blinking The corresponding port’s data is being 10/100/ transmitted 1000M The corresponding port’s link is inactive (TP ports) 100/1000 GREEN On When the IKS-6726/6728 coupling function M (Fiber is enabled to form a back-up path, or when Optic it’s set as the Tail of the Turbo Chain ports) Blinking When the Turbo Chain is down When this IKS-6726/6728 switch disables... -
Page 7: Rack Mounting Instructions
@ 30 VDC or 3 A @ 240 VAC Power Requirements Input Voltage 24 VDC (18 to 36 V), or 48 VDC (36 to 72 V), or 110/220 VAC (85 to 264 VAC) Input Current Max. 0.42 A @ 24 VDC (without IM-6700 Max. -
Page 8: Restricted Access Locations
Restricted Access Locations • This equipment is intended to be used in Restricted Access Locations, such as a computer room, with access limited to SERVICE PERSONAL or USERS who have been instructed on how to handle the metal chassis of equipment that is so hot that special protection may be needed before touching it.
