Moxa Technologies ICS-G7526 Series Hardware Installation Manual

ICS-G7526/G7528/G7826/G7828
Series

Hardware Installation Guide

First Edition, May 2011
Package Checklist
The Moxa ICS-G7526/G7528/G7826/G7828 Series industrial
rackmount switches are shipped with the following items. If any of
these items are missing or damaged, please contact your customer
service representative for assistance.
• ICS-G7526/G7528/G7826/G7828 switch
• RJ45 to DB9 console port cable
• 2 power cords
• Protective caps for unused ports
• 2 rackmount ears
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card

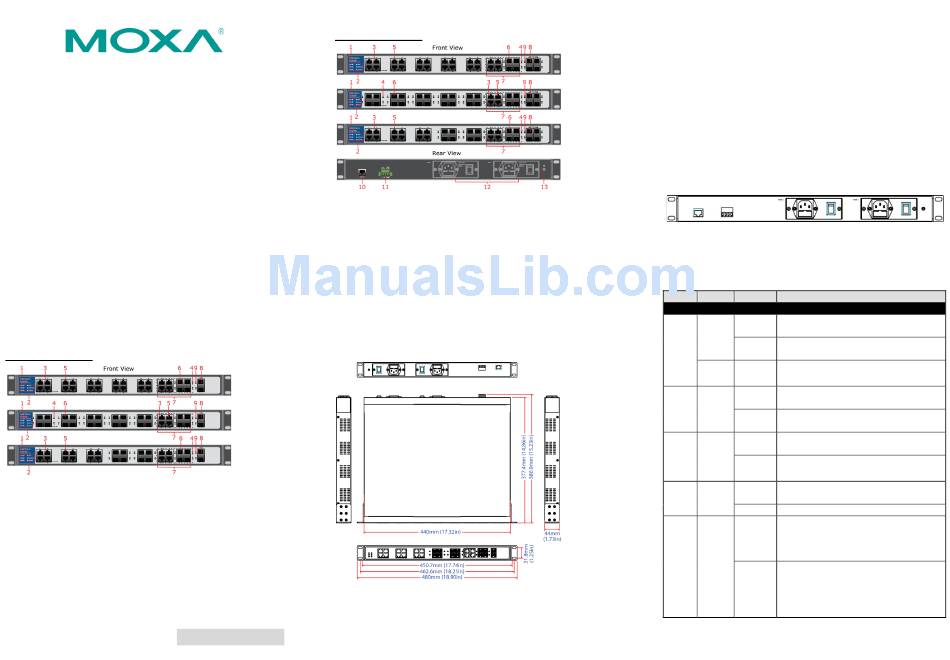

Panel Layouts
ICS-G7526/G7826
P/N: 1802078260010
– 1 –
ICS-G7528/G7828
1. Model Name
2. System status LEDs
3. 10/100/1000 BaseT(X) port status LEDs
4. 100/1000Base SFP port status LEDs
5. 10/100/1000 BaseT(X) port
6. 100/1000Base SFP slot
7. 10/100/1000 BaseT(X) or 100/1000Base SFP slot combo ports
8. 10 Gigabit Ethernet SFP+ slot
9. 10 Gigabit Ethernet SFP+ port status LEDs
10. Serial Console port
11. Terminal block for Relay Output, Digital Input
12. AC power sockets for power inputs
13. Grounding screw
Dimensions (unit = mm)
– 2 –
Grounding the Industrial Rackmount Switch
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection
from the ground screw to the grounding surface prior to connecting
devices.
Connecting the Power Inputs
The ICS-G7526/G7528/G7826/G7828 switches support dual
redundant power supplies: Power Supply 1 (PWR1) and Power
Supply 2 (PWR2). The connections for PWR1 and PWR2 are located
on the rear side (shown below). Be sure to use a standard power
cord with an IEC C13 connector, which is compatible with the AC
power inlet.
LED Indicators
The front panel of the ICS-G7526/G7528/G7826/G7828 switches
contain several LED indicators. The function of each LED is
described in the table below.
LED Color State Description
System LEDs
The system passed the self-diagnosis
On
test on boot-up and is ready to run.
GREEN
The system is undergoing the
Blinking
STAT
self-diagnosis test.
The system failed self-diagnosis on
RED On
boot-up.
Power is being supplied to the main
On
module's power input PWR1.
PWR1 AMBER
Power is not being supplied to the main
Off
module's power input PWR1.
Power is being supplied to the main
On
module's power input PWR2.
PWR2 AMBER
Power is not being supplied to the main
Off
module's power input PWR2.
The system has failed, or is under quick
On
inspection.
FAULT RED
Off The system is operating normally.
When the
ICS-G7526/G7528/G7826/G7828
On
switch is set as the Master of the Turbo
Ring, or as the Head of the Turbo Chain.
MSTR/
GREEN The ICS-G7526/G7528/G7826/G7828
HEAD
switch has become the Ring Master of
Blinking the Turbo Ring, or the Head of the
Turbo Chain, after the Turbo Ring or the
Turbo Chain is down.
– 3 –
