６．Connection

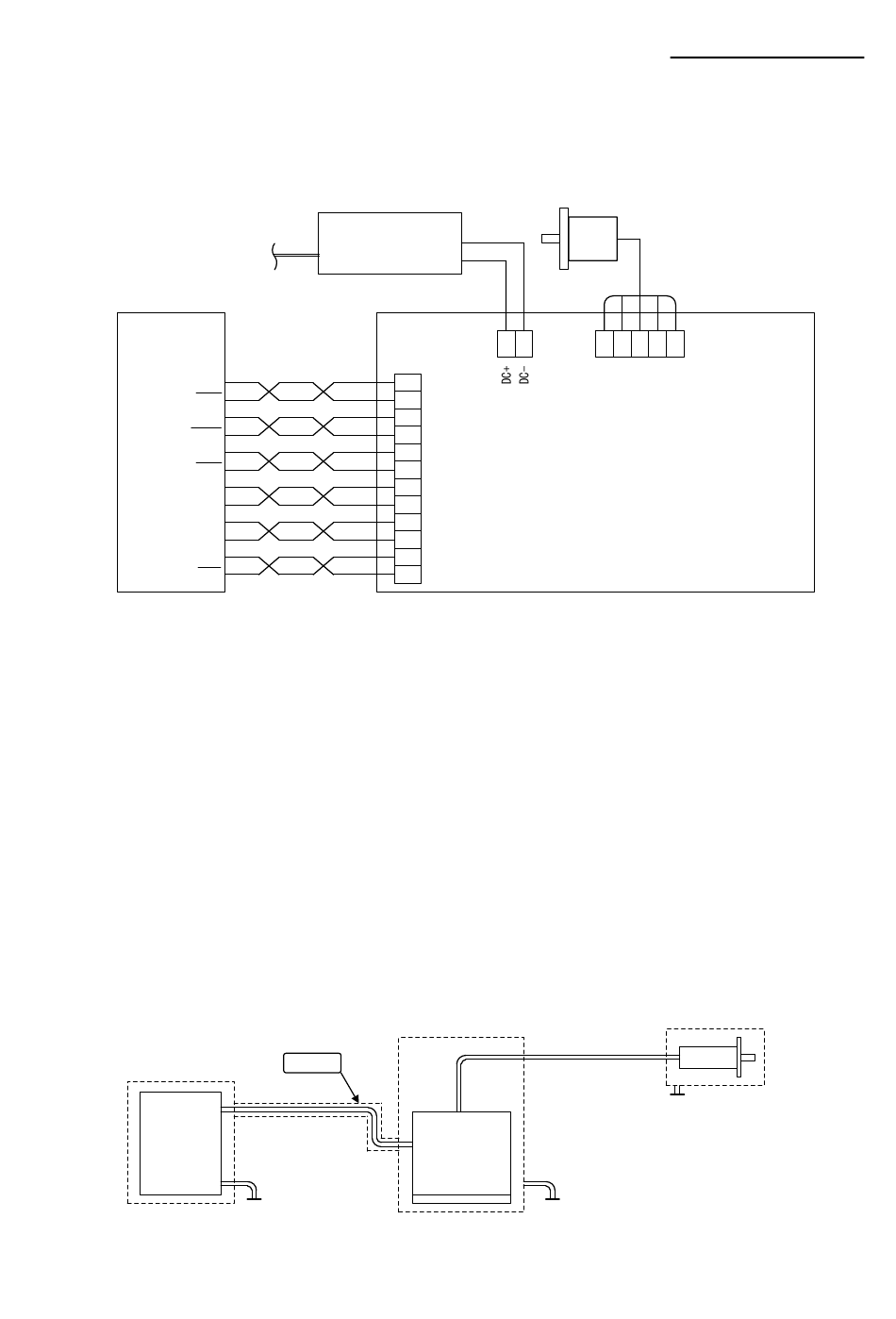

６－１．Overview of Connection Configuration
User
Controller
CWP
CWP
CCWP
CCWP
+COM
M.F
P.O+
P.O-
O.H.A+
O.H.A-
+COM
C.S
●Connect only one motor to one driver.
●Use twisted pair wire for the CW/CCW input signal line.
●Provide shielding for the signal line where considerable noise is generated.
●Use the wire material of the characteristic that is difficult to burn.
●Provide shielding for the motor line if it generates significant noise.
●For the driver's power supply, use a DC power supply with reinforced insulation
on its primary and secondary sides.
〔Example configuration〕
The metallic enclosure and shielded wires work to shield noise.
Metal Enclosure
User
Controller
DC Power Supply
0V(GND)
DC+24V
Twisted
J1
pair wire
1
2
3
4
5
6
7
8
9
10
11
12
Metal Enclosure
Shield
Grounding
MOTOR
J2 1 2 J3
CW+
CW-
CCW+
CCW-
M.F+
M.F-
P.O+
P.O-
O.H.A+
O.H.A-
C.S+
C.S-
DRIVER
Grounding
-25-
