６．Connection

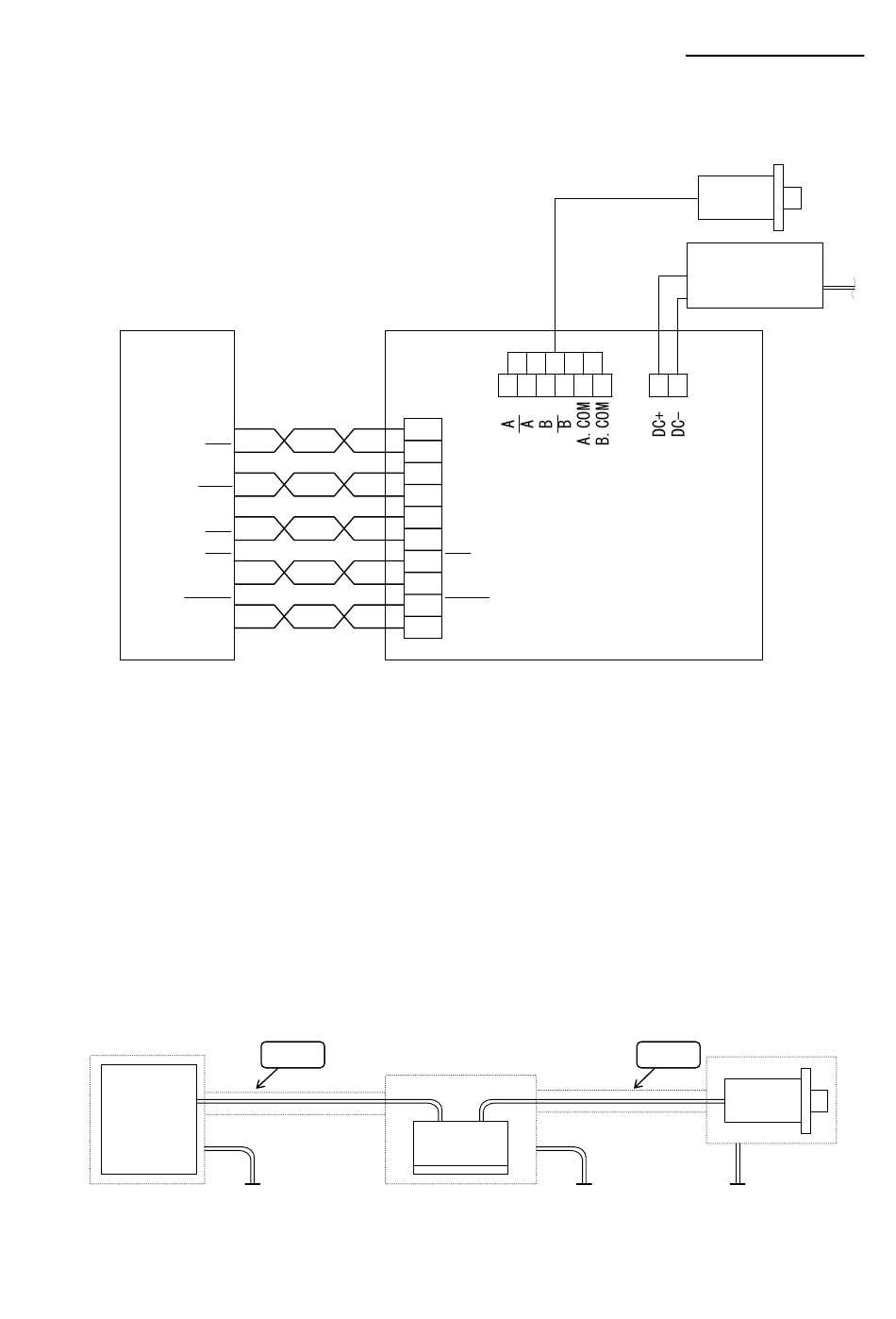

６－１．Overview of Connection Configuration
User
Controller
CWP
CWP
CCWP
CCWP
+COM
M.F
P.O
R.GND
O.H.A
R.GND
●Connect only one motor to one driver.
●Do not power ON/OFF by the relay etc. in the output side of the DC power supply.
●Use twisted pair wire for the CW/CCW input signal line.
●Provide shielding for the signal line where considerable noise is generated.
●Use the wire material of the characteristic that is difficult to burn.
●Provide shielding for the motor line if it generates significant noise.
●For the driver's power supply, use a DC power supply with reinforced insulation
on its primary and secondary sides.
〔Example configuration〕
The metallic enclosure and shielded wires work to shield noise.
Metal Enclosure
User
Controller
ADB-2F45U
Twisted
pair wire
Shield
Grounding
J3 1 2 3 4 5 6
J1
1
CW+
2
CW-
3
CCW+
4
CCW-
5
M.F+
6
M.F-
7
P.O
8
R.GND
9
O.H.A
10
R.GND
Metal Enclosure
ADB-2F45U
Grounding
-21-
ADB-2F45U
Instructions Manual
MOTOR
DC Power Supply
DC+24V
0V(GND)
J2 1 2
Metal Enclosure
Shield
MOTOR
Grounding
