３－５．Operating Section
DRIVER
(O N⇔O FF )

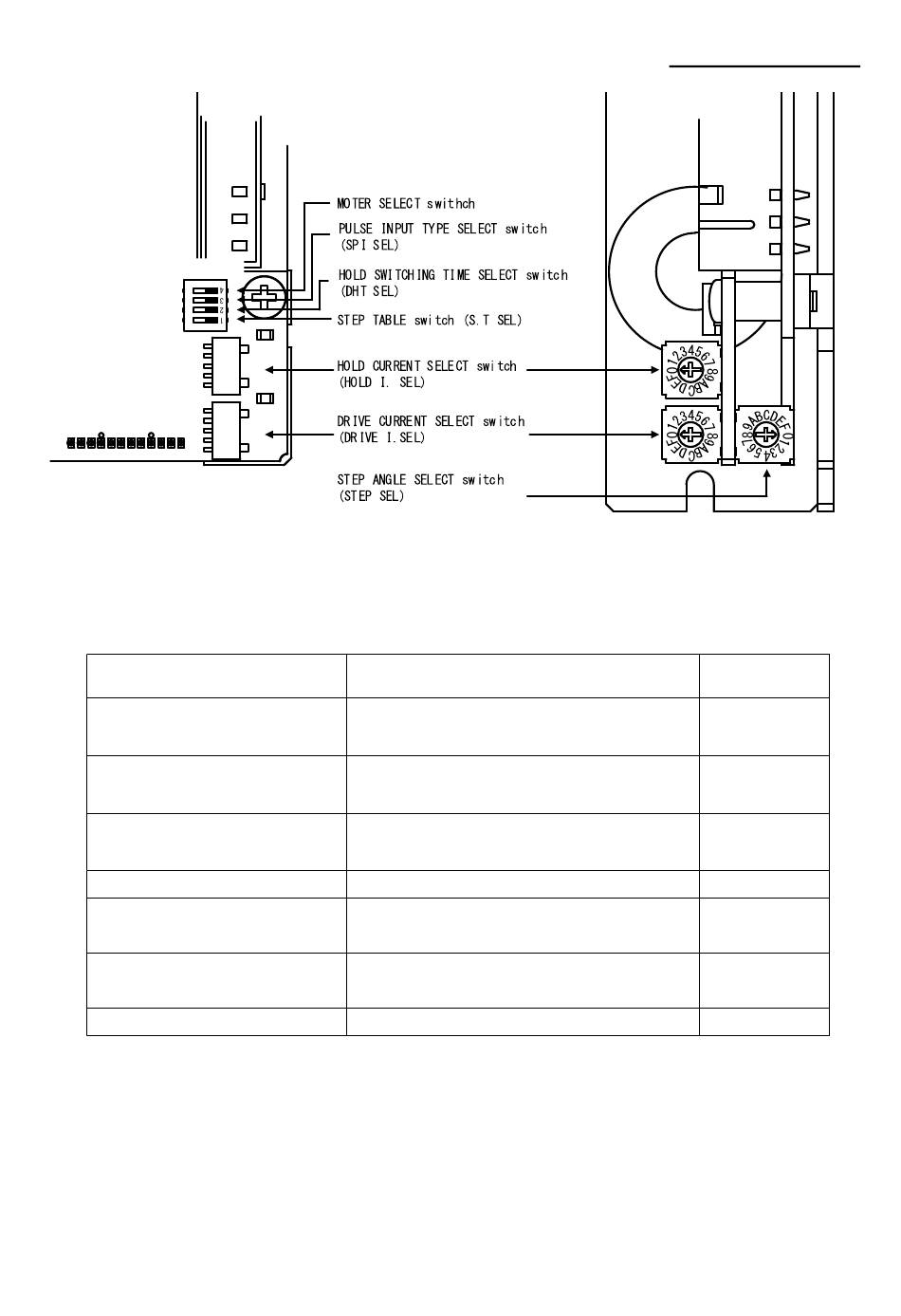

Name of Operating Section
DRIVE CURRENT SELECT switch
HOLD CURRENT SELECT switch
STEP ANGLE SELECT switch
4 MOTOR SELECT switch
PULSE INPUT TYPE
3
SELECT switch
HOLD SWITCHING TIME
2
SELECT switch
1 STEP TABLE switch
Function
Select DRIVE CURRENT.
Select HOLD CURRENT.
Select a step angle.
Use it with OFF.
Select a pulse input type.
DRIVE/HOLD CURRENT automatic switching
time is selected.
Select STEP TABLE.
-13-
GDB-5K40
Instructions Manual
DRIVER
Factory Setting
〔No.F〕
〔No.8〕
〔No.1〕
4:〔OFF〕
3:〔OFF(2P)〕
2:〔OFF(DH1)〕
1:〔OFF(S.T1)〕
