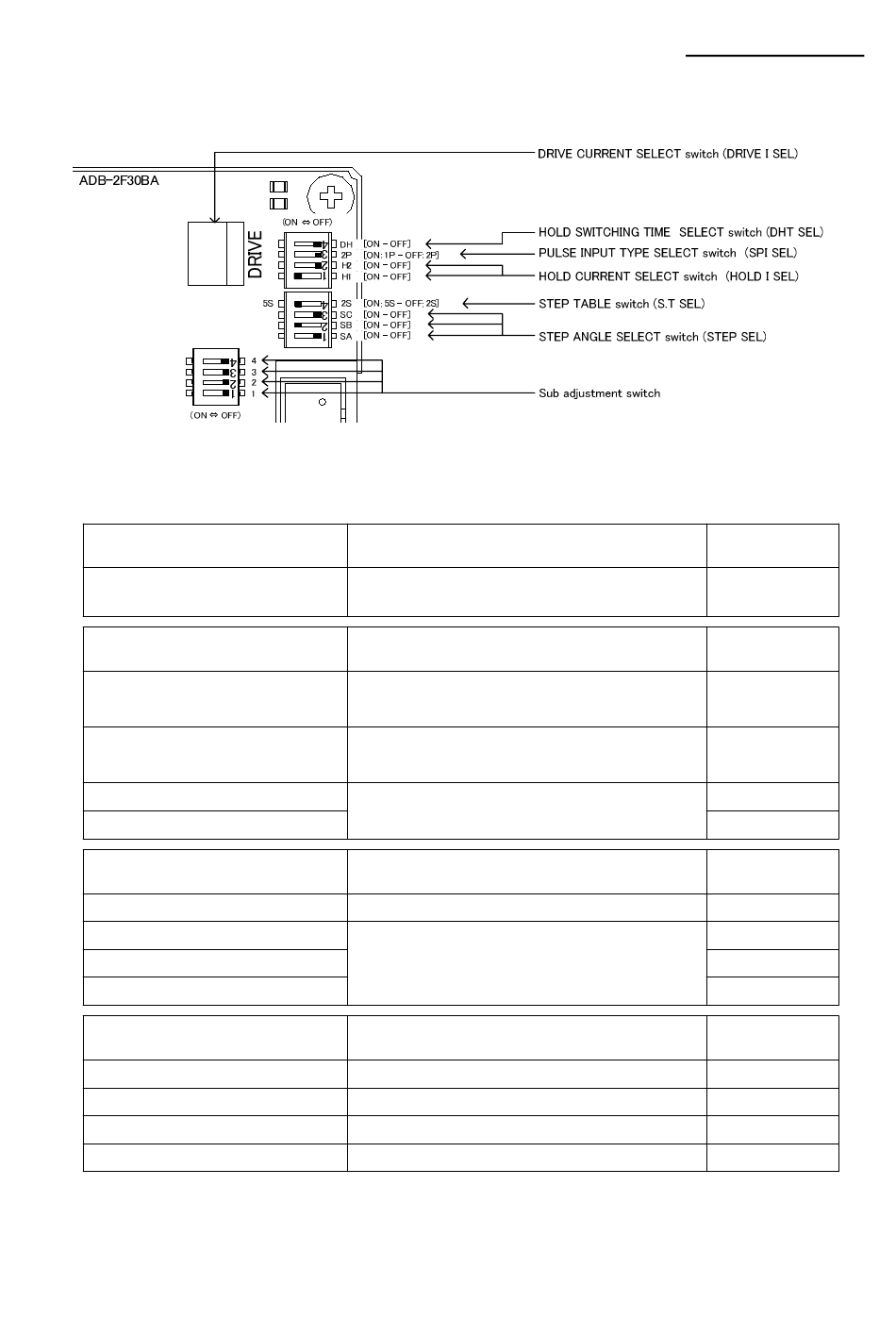

３－５．Operating Section
Name of Operating Section
DRIVE CURRENT
SELECT switch
Name of Operating Section
4
HOLD SWITCHING TIME
SELECT switch
3
PULSE INPUT TYPE SELECT
switch
HOLD CURRENT SELECT switch
2
HOLD CURRENT SELECT switch
1
Name of Operating Section
STEP TABLE switch
4
STEP ANGLE SELECT switch
3
2 STEP ANGLE SELECT switch
STEP ANGLE SELECT switch
1
Name of Operating Section
Sub adjustment switch
4
Sub adjustment switch
3
Sub adjustment switch
2
Sub adjustment switch
1
Function
Selects DRIVE CURRENT.
Function
DRIVE/HOLD CURRENT automatic switching
time is selected.
Selects a pulse input type.
Selects HOLD CURRENT.
Function
Selects STEP TABLE.
Selects a step angle.
Function
Use it with OFF.
Use it with OFF.
Use it with OFF.
Use it with OFF.
-13-
ADB-2F30BA
Instructions Manual
Factory Setting
〔No.8〕
(0.98A/相)
Factory Setting
〔OFF(150ms)〕
〔OFF(2P)〕
H2：〔OFF〕
H1：〔ON〕
Factory Setting
〔ON(5S)〕
SC：〔OFF〕
SB：〔ON〕
SA：〔OFF〕
Factory Setting
4：〔OFF〕
3：〔OFF〕
2：〔OFF〕
1：〔OFF〕
